Product Overview

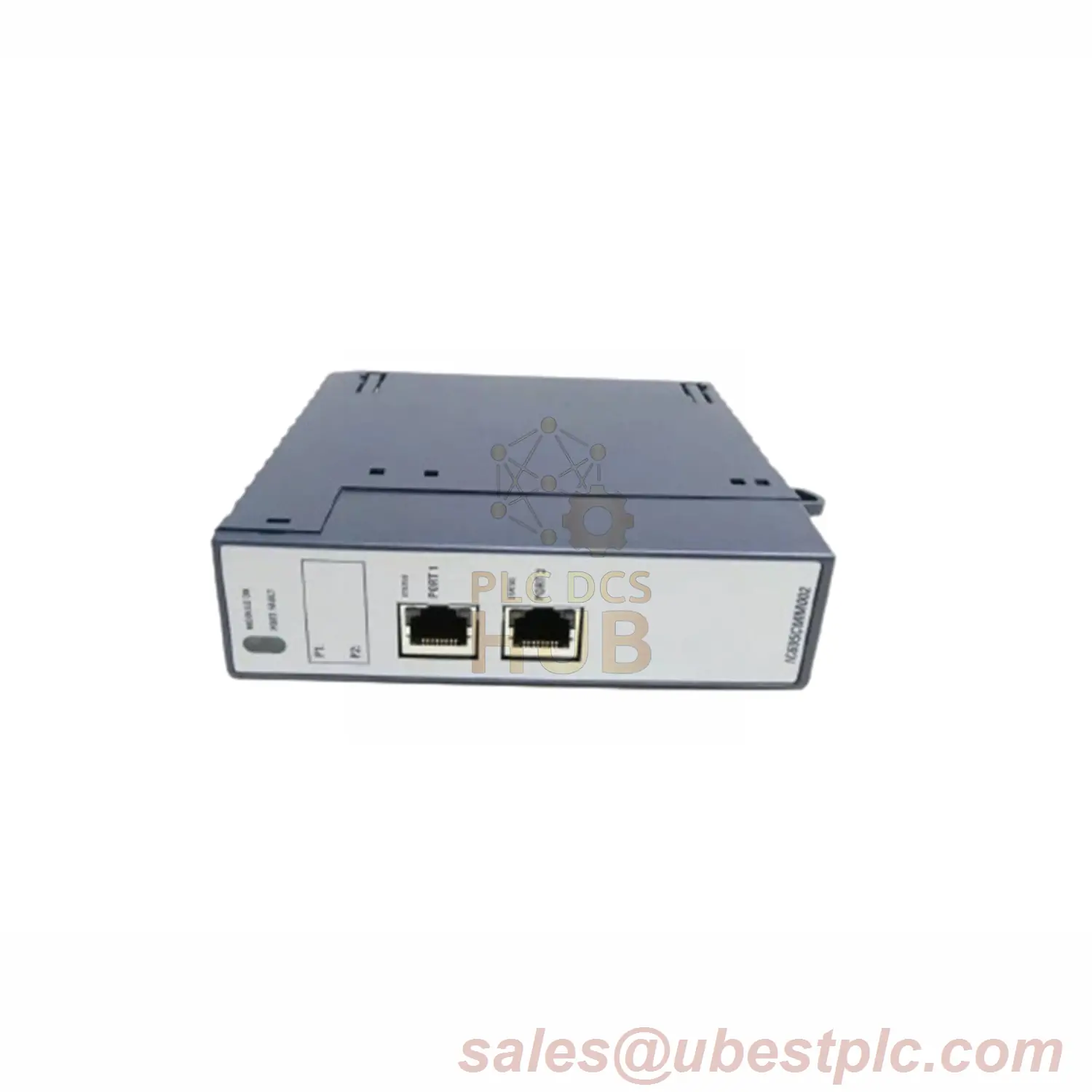

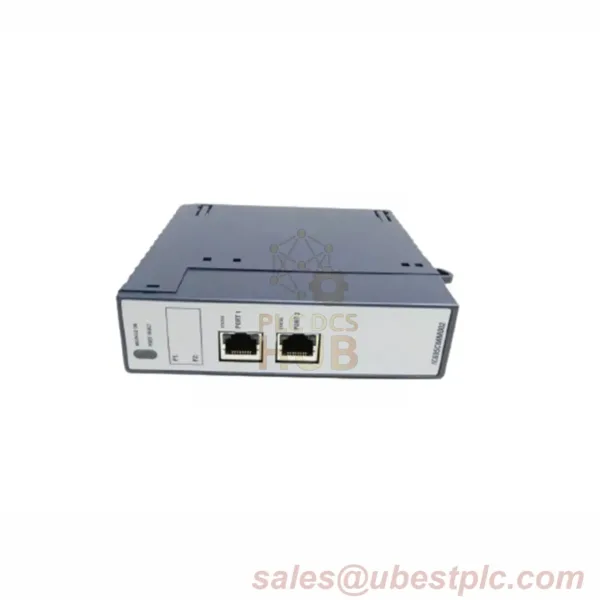

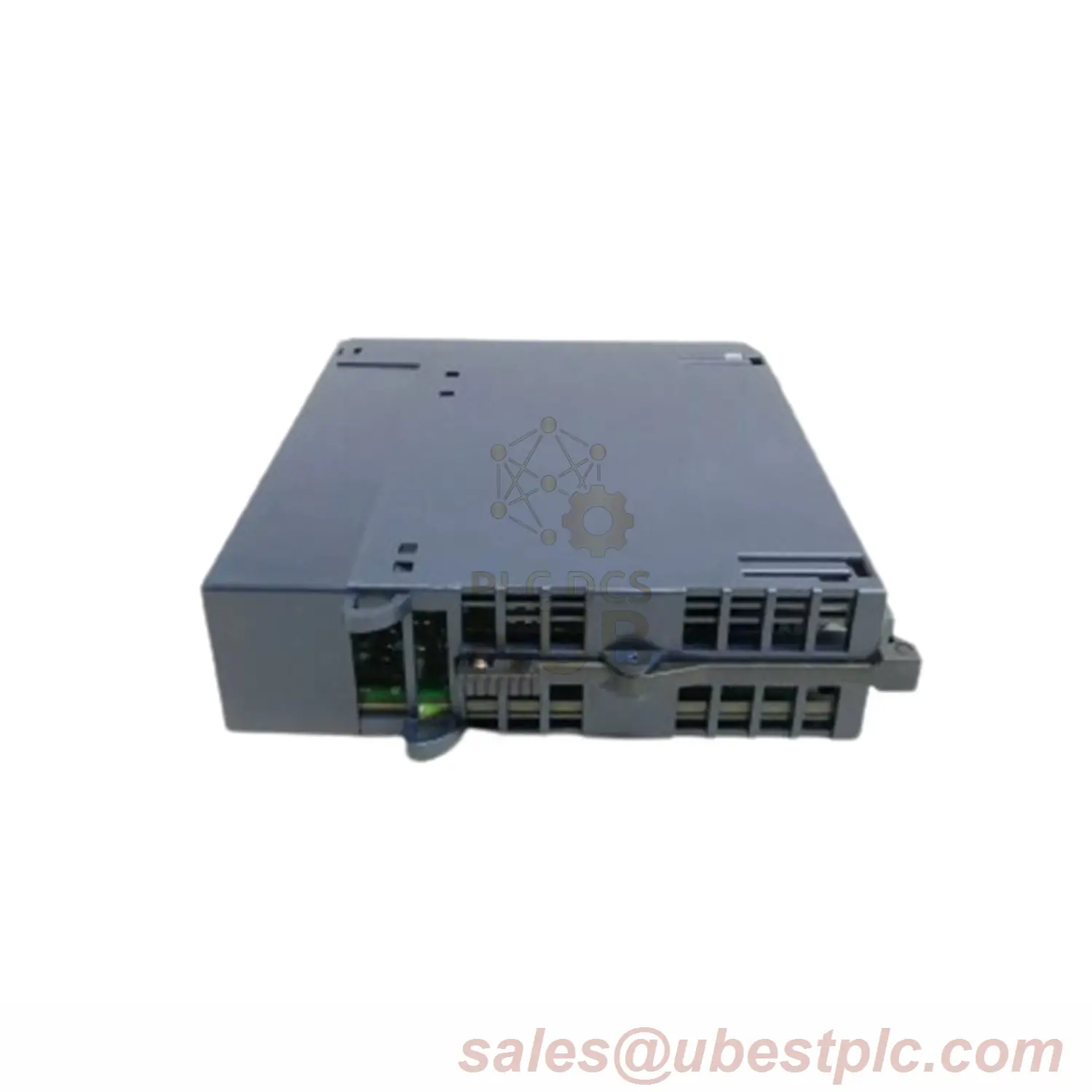

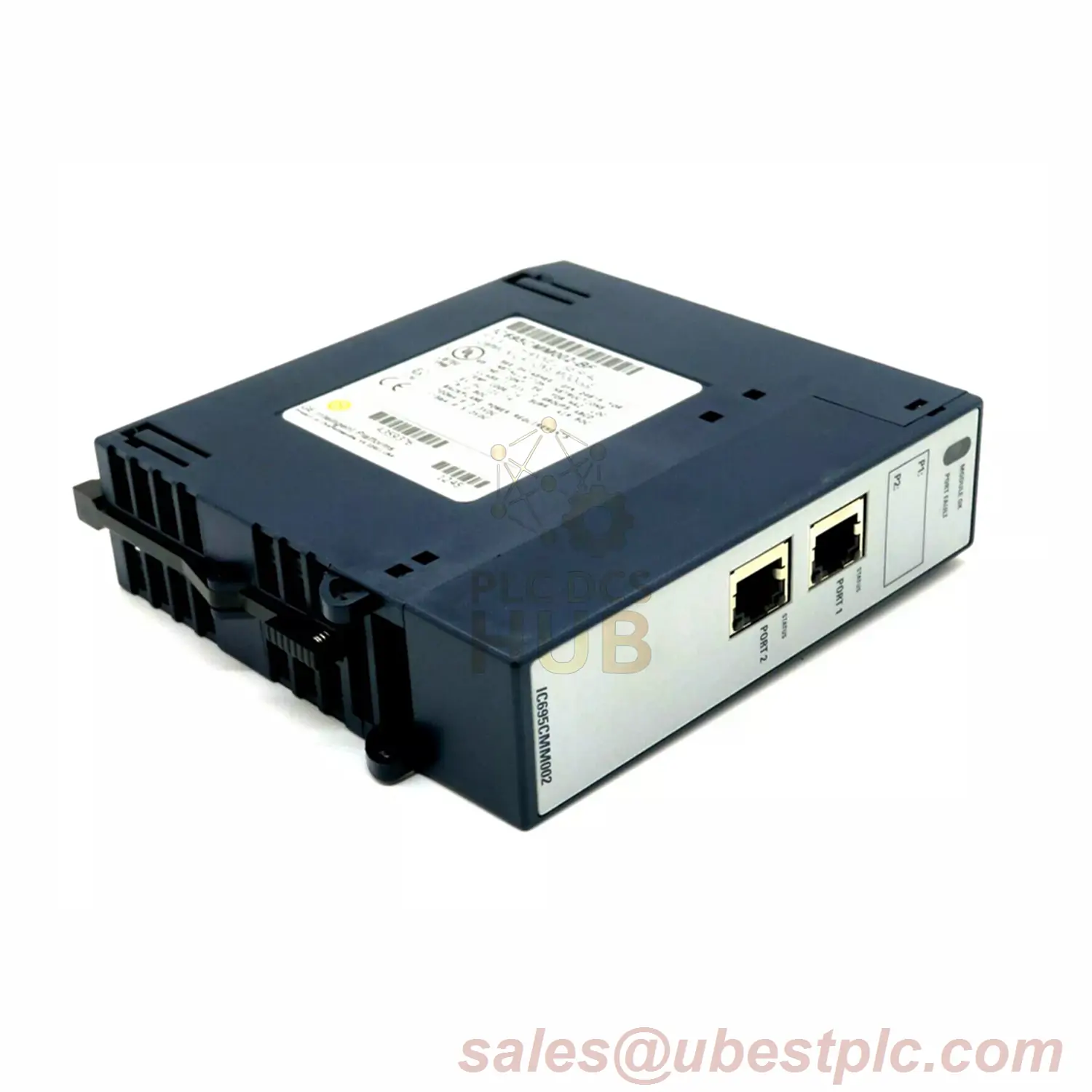

The IC695CMM002 by Emerson Automation (formerly GE Fanuc) is a high-performance PACSystem RX3i Serial Communication Module with 2 isolated RJ-45 ports for industrial automation. Supports RS-232/RS-422/RS-485 and protocols like Modbus, DNP3, CCM. Hot-swappable design with firmware upgrades.
Technical Specifications
- Brand: Emerson Automation
- Model: IC695CMM002 (PACSystem RX3i Series)
- Ports: 2x RJ-45 (RS-232/422/485)
- Protocols: Modbus Master/Slave, DNP3 Master/Slave, CCM Slave, Serial I/O
- Baud Rate: 1200 to 115.2K baud
- Data/Stop Bits: 7/8 bits, 1/2 stops
- Isolation: 500VDC continuous (port-to-port)
- Power: 0.7A @3.3VDC, 0.115A @5VDC
- Operating Temp: 0°C to 60°C
- Certifications: CE, ATEX, UL/cUL 508
Installation & Compatibility
- Max 6 modules per RX3i CPU backplane.
- Requires Machine Edition software v5.90+ for configuration.
- DNP3 Restriction: Both ports must use DNP3 if one is set to DNP3.
Package Contents
- 1x IC695CMM002 Module
- Quick Start Guide
- 12-Month Warranty Card
Warranty & Shipping
- 12-month warranty included.
- Shipped via FedEx, UPS, DHL (global express).
Real-World Applications
- SCADA systems for power grids (DNP3 protocol).
- Modbus RTU control in water treatment plants.
- Legacy device connectivity in factories.
FAQ
Q: How many protocols per port?
A: One protocol per port.
Q: Is hot-swapping safe?
A: Yes, but reboot the system after replacement.
Q: Max modules per system?
A: 6 modules.
