Description
Product Overview

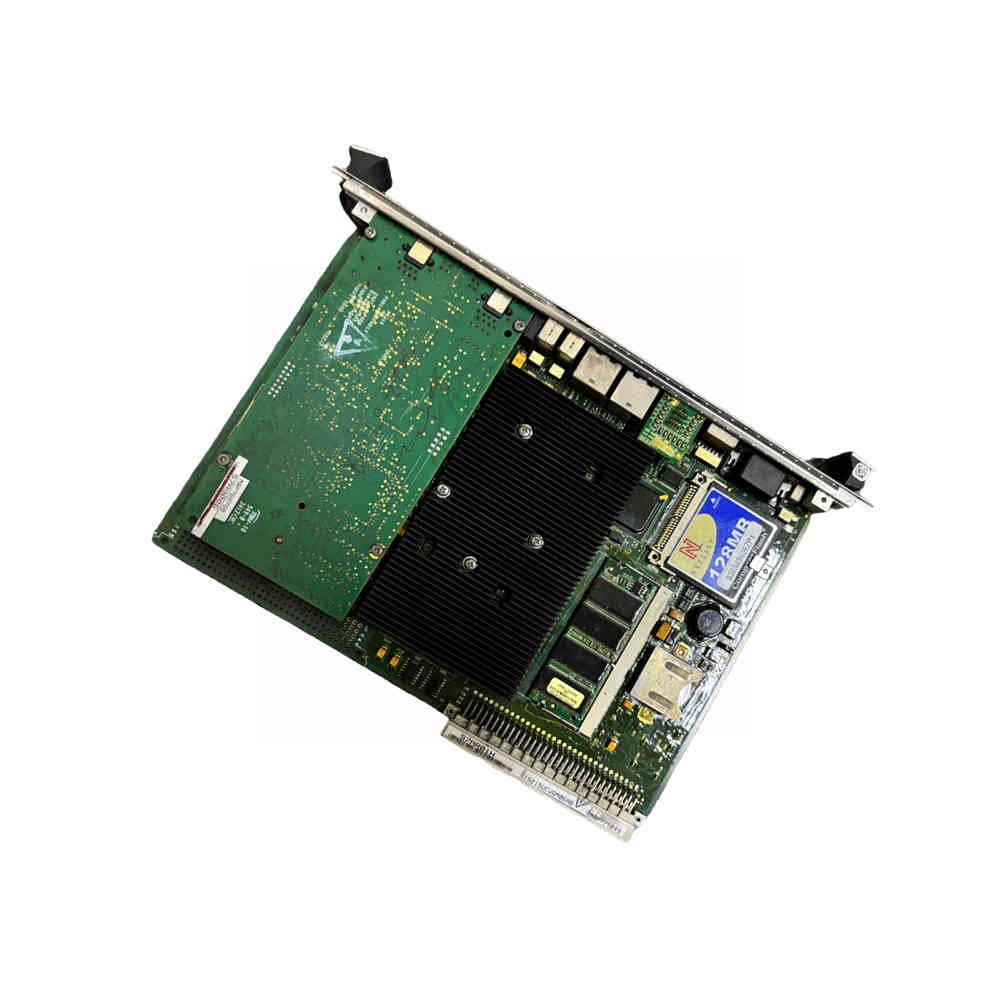

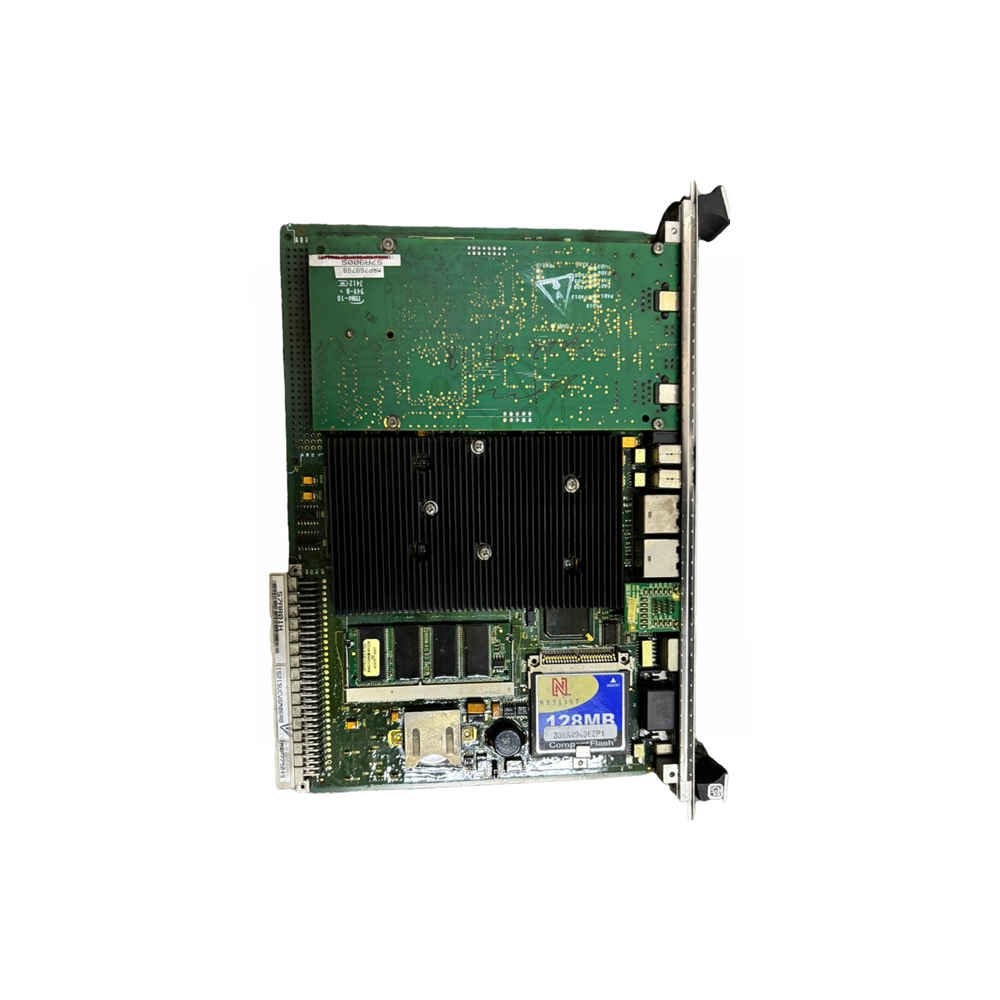

The IS215UCVGM06A is a Universal Control Variable Generator Module (UCVG) from General Electric. It belongs to the Mark VI Speedtronic Series for gas and steam turbines. This board runs turbine application code as a single-slot single-board computer. It mounts inside the control module and communicates with I/O boards using the VME bus. The operating system is QNX, a real-time multitasking OS. This device is a revised version of the IS215UCVGM06 parent board. It includes one functional revision (A-rated).
Key Features at a Glance
- Processor: Intel Ultra Low Voltage Celeron at 650 MHz
- Memory: 128 MB SDRAM and 128 MB flash
- Operating System: QNX real-time OS
- Ethernet: Two 10BaseT/100BaseTX ports (RJ-45)
- Front Panel: Monitor port, keyboard/mouse port, USB ports, reset switch, 4 panel LEDs, Ethernet LEDs
- Expansion: One PMC expansion slot
- Battery: Type 1 Lithium battery with enable switch
- Lithium battery note: Replace only with an equivalent type
Technical Specifications
- Brand: General Electric
- Model: IS215UCVGM06A
- Series: Mark VI Speedtronic
- Product Type: UCV Controller Board
- Functional Acronym: UCVG
- Revision: 1 (A-rated)
- Country of Origin: United States
- Voltage Range: 14 to 32 V dc
- Maximum Lead Resistance: 15 Ohm
- Operating Temperature: 0 to 70 °C
- Technology: Surface mount
- Board Size: 16.2 cm (H) x 8.6 cm
- Programming: Boolean
- Processing Speed: Up to 100,000 rungs or blocks per second
- Clock synchronization: Within ±100 microseconds using VCMI
- Reference Manual: GEH-6421J
Measurement & Performance Data
- Measurement range: Software-defined via turbine control application
- Frequency response: Real-time with QNX OS
- Sensitivity: Block-level execution down to 10 µs resolution
- Linearity: Determined by I/O boards over VME bus
- Resolution: 16-bit typical via VCMI communication
- Temperature range: 0 to 70 °C (operating)
- Environmental tolerance: Industrial control room use
- Noise immunity: VME backplane with shielded enclosure
Installation Guide
- Mounts inside a Mark VI control module with at least one VCMI board
- Three rack types: GE Fanuc rack (stand-alone, remote I/O only) or Mark VI racks (local + remote I/O)
- A cooling fan is required above or below the controller
- For GE Fanuc racks, add a VDSK board for fan power and rack ID
- Use the backplane connector for VME bus communication
- Enable the Lithium battery switch before first use
Debugging & Maintenance Convenience
- Front reset switch for quick reboot
- Four front panel LEDs for status checks
- Ethernet port LEDs show link and activity
- Monitor and keyboard/mouse ports allow direct interaction
- USB ports for easy file uploads or firmware updates
- Lithium battery can be accessed and replaced without soldering
- Second Ethernet port configuration validated by Toolbox at each power-on
Compatibility
- Works with Mark VI I/O boards via VME bus
- Uses VCMI board for CSDB data exchange
- Supports simplex and TMR (triple modular redundant) systems
- Second Ethernet port supports Modbus or private EGD networks
- First Ethernet port connects to UDH for configuration
- Suitable for steam, gas, LM (land-marine aero-derivative), and BOP products
Certifications & Standards
- Manufactured in the United States
- Designed for GE Speedtronic Mark VI safety and control standards
- Industrial control use with QNX real-time certification
- Meets VME bus standard for industrial backplane communication
Package Contents
- 1 x IS215UCVGM06A UCV Controller Board
- 1 x Type 1 Lithium battery (pre-installed)
- No cables or mounting hardware included
Warranty & Shipping
- Warranty: 12 months from date of shipment
- Repair service: 3 to 7 days typical
- Shipping carriers: FedEx, UPS, DHL
- Express shipping available. Tracking provided.
- In stock for fast dispatch.
Typical Applications
- Gas turbine control systems
- Steam turbine management
- Land-marine aero-derivative (LM) turbine control
- Balance of plant (BOP) automation
- Simplex and TMR configurations
- Remote I/O control via GE Fanuc racks
Diagnostic Capabilities
- Real-time performance monitoring via QNX
- External clock interrupt for synchronization with VCMI
- Toolbox validates second Ethernet port settings at each power-on
- LEDs indicate power, run, fault, and Ethernet activity
- CSDB data exchange allows full system diagnosis over VME bus
Frequently Asked Questions (FAQ)
What PCB coating does the IS215UCVGM06A use?
This board does not include a specific Mark VI Series surface coating. No conformal coating is applied.
Why does this board have a special assembly version?
The assembly version comes from its base motherboard status. It adopts features from another Mark VI board.
Can I use this board to replace an IS215UCVGM06?
Yes. The IS215UCVGM06A is the A-revision upgrade. It adds one functional revision over the parent board.
What happens if the Lithium battery dies?
The board may lose configuration or real-time clock data. Replace only with the same type 1 Lithium battery.
How do I know if my system needs a simplex or TMR controller?
Simplex works for non-critical processes. TMR is for high-risk turbines requiring voted inputs and output voting hardware.
Which Ethernet port should I use for Modbus?
Use the second Ethernet port. It supports Modbus or private EGD networks. Toolbox configures it separately.
Is the QNX operating system difficult to learn?
No. QNX behaves like a standard multitasking OS. Most turbine engineers find it reliable and easy to use.
Does this board work with 3300 XL 11 mm Proximity Probes?
Yes. The controller processes signals from 3300 XL 11 mm Proximity Probes through compatible I/O boards. Use the VME bus to bring data into the CSDB.
Selection Guide
- Choose the IS215UCVGM06A if you need a single-slot Mark VI controller with Ethernet and QNX.
- Pick this board for new turbine projects or retrofits requiring real-time performance.
- Select simplex for standalone or remote I/O systems.
- Select TMR if you have triple-redundant I/O and need voted inputs.
- Use the first Ethernet port for UDH and peer-to-peer links.
- Use the second Ethernet port only for Modbus or private EGD networks.
- Do not mix rack types. GE Fanuc racks support remote I/O only.
- Always install the required cooling fan. No fan = shorter board life.
- Replace the Lithium battery only with an equivalent type to avoid memory loss.
