Description
Product Overview

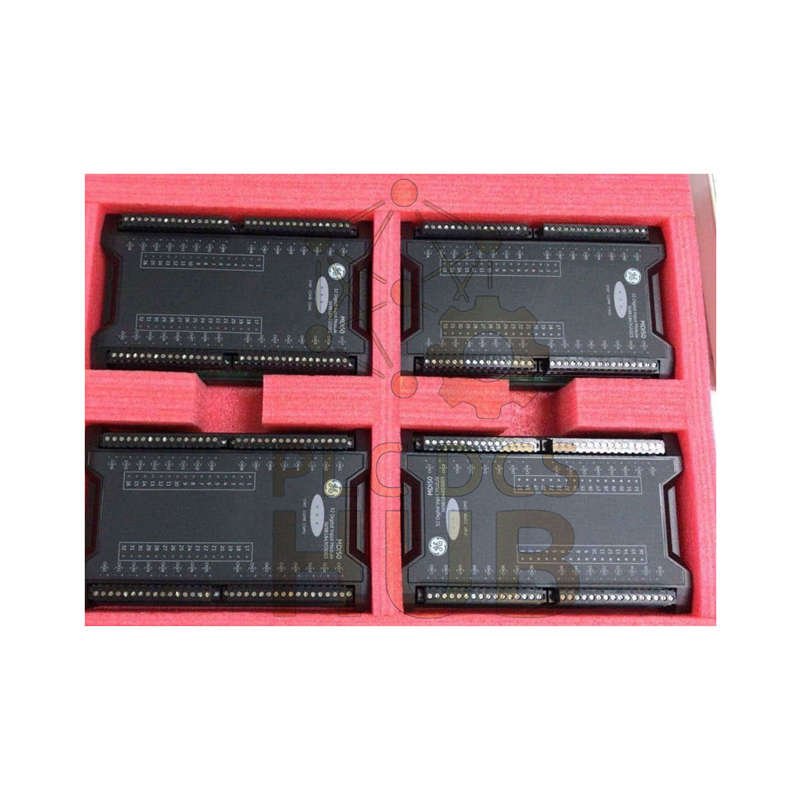

The GE Nexus MAI50 369B1841G5006 analog input module delivers reliable performance for industrial automation. This 16-channel module handles various signals with high accuracy. It ensures stable data acquisition in harsh environments. Redundant power supply boosts system uptime. Easy integration and robust design save time and costs.
Key Features
- 16 isolated analog input channels
- Supports 4-20mA and ±10V signals
- Dual redundant 24V DC power inputs
- High noise immunity for stable operation
- Compact screw terminal installation
- Clear LED status indicators
Technical Specifications
- Brand: GE
- Model: Nexus MAI50
- Input Channels: 16
- Measurement Range: ±10V, ±5V, 0-20mA, 4-20mA
- Accuracy: ≤0.1% full scale
- Resolution: 16-bit ADC
- Isolation: 1500V AC channel-to-system
- Noise Rejection: >120dB CMRR
- Power Supply: 21.6-26.4V DC
- Operating Temperature: 0°C to 60°C
- Humidity Tolerance: 10-90% non-condensing
- Vibration Resistance: 10-500Hz at 10m/s²
- Communication: 1Mbps serial bus
- Connector Type: DB-9 female + European terminal
Installation Guide
- Mount using standard screws
- Use 2.5mm² wires for terminals
- Connect redundant power supplies
- Ensure proper grounding
- Check cable routing for noise protection
Configuration & Maintenance
- Simple software setup
- Real-time status monitoring via LEDs
- Module replacement without tools
- Auto-calibration function
- Remote diagnostics capability
Compatibility
- Works with GE Nexus control systems
- Integrates with PLC and DCS platforms
- Standard industrial communication protocols
Certifications & Standards
- CE Marked
- FCC Part 15 Compliant
- EN 61326-1 Industrial EMC
- IEC 61000 Surge Immunity
Package Contents & Warranty
- 1x GE Nexus MAI50 module
- Installation manual
- 12-month warranty
Shipping Options
- FedEx International Priority
- UPS Worldwide Express
- DHL Global Mail
Typical Applications
- Process control systems
- Factory automation lines
- Environmental monitoring
- Energy management systems
- Test and measurement setups
Diagnostic Capabilities
- Channel-level fault detection
- Over-range alarm indicators
- Communication status monitoring
- Power supply health check
- Self-test functionality
Download Documentation
Get complete specifications and wiring diagrams. Download the full product manual now for detailed installation guidance.
Frequently Asked Questions
- What signals does this module accept?
- It handles 4-20mA current and ±10V voltage inputs.
- How many devices can connect together?
- Multiple modules link via high-speed serial bus.
- Can it operate in dusty areas?
- Yes, it tolerates limited particulate contamination.
- What indicates module failure?
- Red fault LED and communication timeouts.
- Is external signal conditioning needed?
- No, built-in isolation protects against noise.
- How long does calibration remain valid?
- Typical intervals exceed 12 months in normal use.
