Description
Your Machine’s Command Center

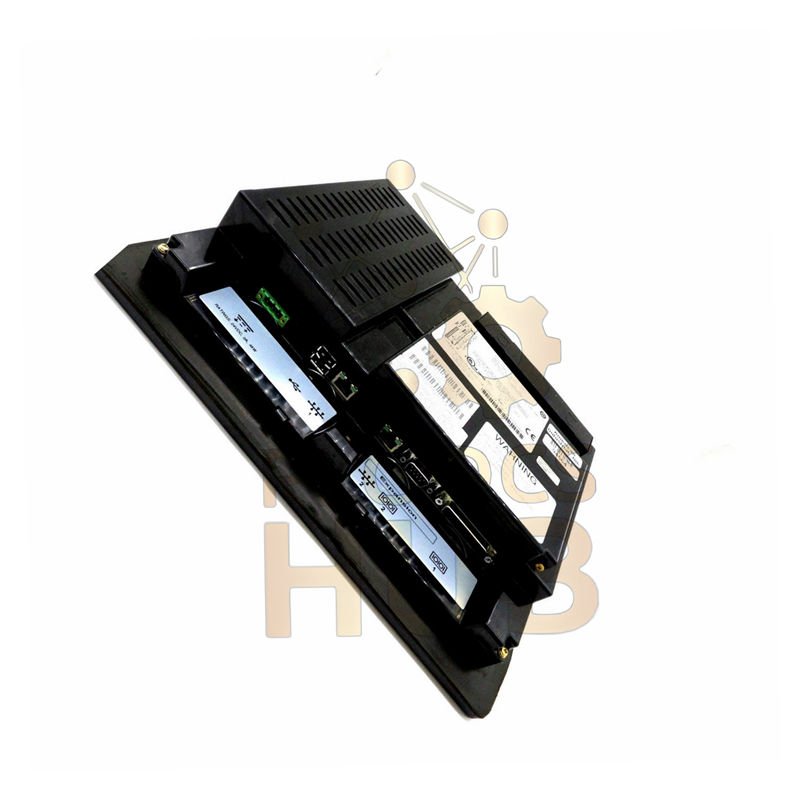

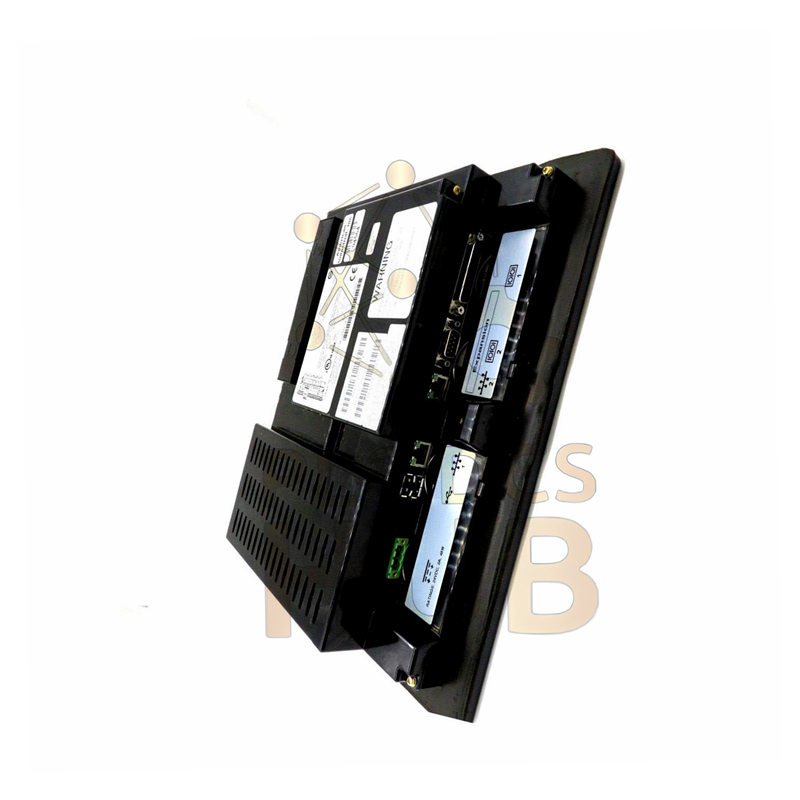

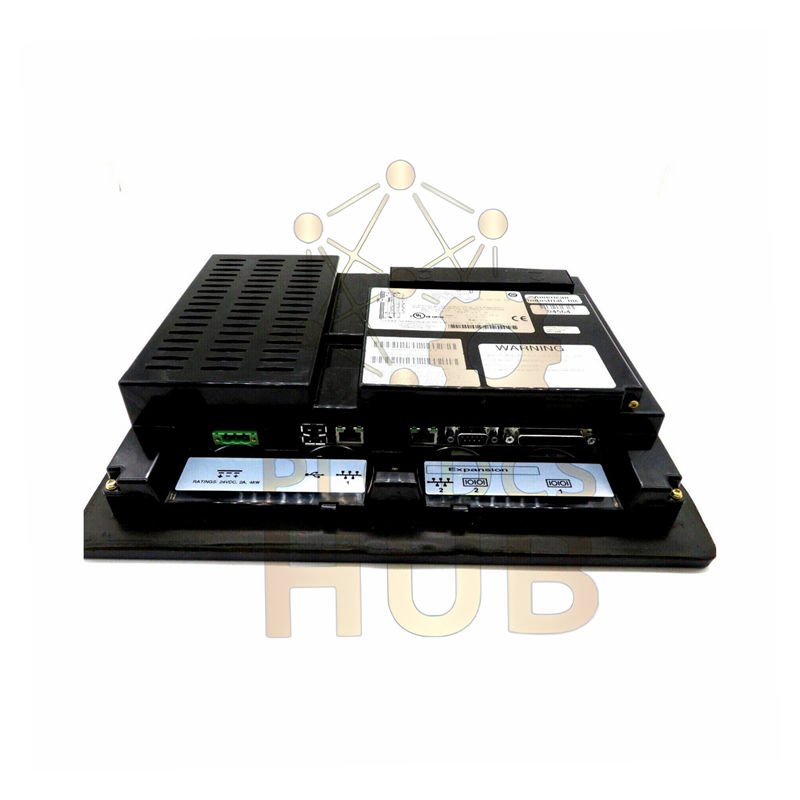

Take control with the GE QuickPanel IC754CSF12CTD. This 12-inch color touchscreen is the perfect link between you and your industrial process. It combines a bright display with rugged reliability. Simplify operation and monitoring from a single, intuitive terminal.
Clear Visuals, Tough Design
- Vibrant 12-inch Display: Full-color TFT LCD with 800 x 480 WVGA resolution for clear graphics.
- Intuitive Touch Interface: Resistive touchscreen for reliable operation, even with gloves on.
- Rugged Build: Designed for the factory floor with a strong enclosure rating.
- Easy to Power: Flexible 12-24V DC input simplifies electrical integration.
- Instant Status Updates: Multi-color LED and buzzer provide clear visual and audio alerts.
Detailed Technical Specifications
- Brand & Model: GE Fanuc IC754CSF12CTD QuickPanel View Control.
- Product Type: Industrial Touchscreen Operator Interface (HMI).
- Display: 12.1″ TFT Color LCD, 800 x 480 pixels.
- Touch Technology: Analog Resistive Touchscreen.
- Processor: Advanced ARM Core Microprocessor.
- Operating System: Microsoft Windows Embedded Compact 7.
- Application Memory: 64 MB dedicated for runtime programs.
- Total DRAM: 512 MB for OS, storage, and applications.
- Data Backup: 512 KB battery-backed SRAM retains data during power loss.
- Communication Ports: Integrated RS-232 and RS-485 serial ports.
- Ethernet Port: 1 x RJ45 with dual status LEDs for network connection.
- Power Supply: 12-24 VDC (30V Max), consumes approximately 15W.
- Operating Temperature: Reliable performance from 0°C to 50°C.
- Storage Temperature: Safe storage from -20°C to +60°C.
- Humidity Rating: Up to 85% relative humidity, non-condensing.
- Vibration Resistant: Tested to withstand industrial vibration levels.
- Enclosure Rating: Front panel meets IP65 for dust and water jet protection.
- Weight: 6.63 lbs (3.01 kg) for robust construction.
Easy Setup & Strong Support
- Mount using standard panel cutouts or a VESA bracket.
- Connect power using the included quick-connect plug for safety.
- Program easily with GE’s Proficy View-Machine Edition software.
- LEDs give instant visual feedback on power, communication, and faults.
- Full 12-Month Warranty covers all parts and workmanship.
- Fast Global Shipping via FedEx, UPS, or DHL with full tracking.
Connectivity & Compatibility
- Core unit in the GE QuickPanel control family.
- Connects to PLCs, drives, and other devices via serial or Ethernet.
- Uses standard HMI-CAB- series cables for communication.
- The Windows CE OS ensures stable operation for industrial applications.
Expert Frequently Asked Questions
- What software do I need to program this HMI?
- You need GE’s Proficy View-Machine Edition (ME) software to create and download application screens to the IC754CSF12CTD.
- Can I use this screen in a wet environment?
- The front panel has an IP65 rating. This protects it against dust and low-pressure water jets, making it suitable for damp washdown areas.
- How is user data saved during a power failure?
- The unit has a 512 KB battery-backed SRAM memory. This special memory keeps important data safe when main power is lost.
- What is the difference between the 64MB and the 512MB memory listed?
- The 64MB is for running the active application. The total 512MB DRAM includes space for the Windows CE operating system and file storage.
- From experience, what’s a key tip for mounting this panel?
- Ensure good ventilation behind the unit. Do not install it in a sealed enclosure. This prevents overheating and extends the display’s life.
- Can I connect a barcode scanner or printer to it?
- Yes, through the RS-232 serial port. You can configure the IC754CSF12CTD to communicate with various serial devices using the right driver.
- Is the touchscreen sensitive enough for precise input?
- Yes, the resistive touchscreen allows accurate touch, even for small buttons. It can be calibrated within the settings menu for optimal accuracy.
