Description
Your Precision Protection Partner

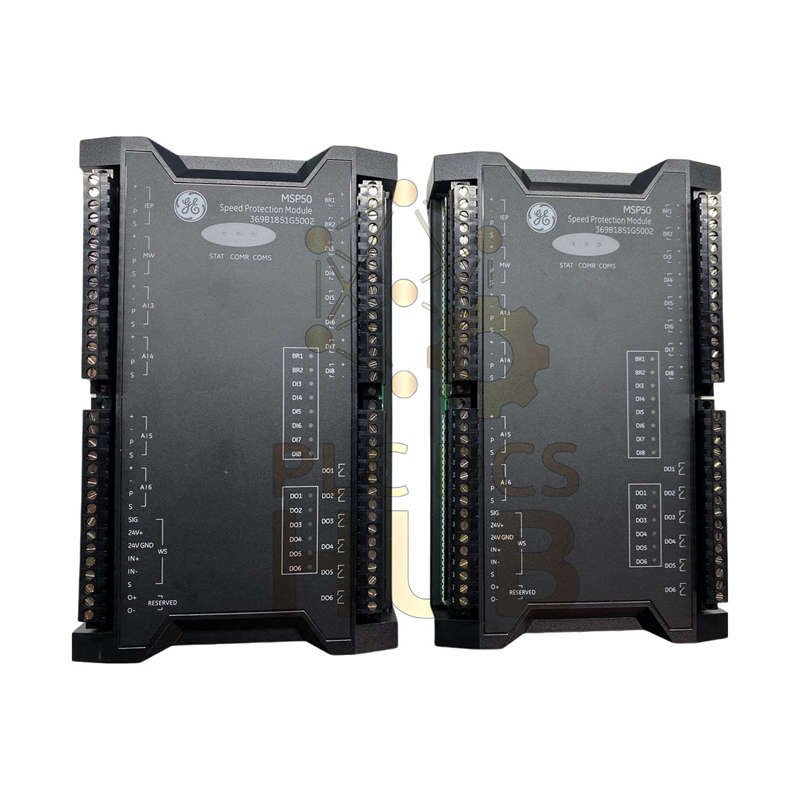

The GE Nexus MSP50 module guards your critical machinery. It delivers exact speed measurement and reliable protection. This robust module fits into tough industrial environments. It ensures your turbines, compressors, and pumps run safely.
Core Features & Benefits
- Precise Speed Monitoring: One channel for 1-20000 Hz. 0.01% resolution.
- Universal Sensor Support: Works with magnetic, Hall, and eddy current probes.
- Rich I/O for Data: 6 AI, 8 DI, and 6 DO channels for full control.
- Built-in Diagnostics: Clear LED status and SOE for quick troubleshooting.
- Rugged & Reliable: High isolation and wide 0-60°C operating range.
- Fast Integration: Part of the GE Nexus system with redundant networks.
Complete Technical Specifications
- Brand & Model: GE – Nexus MSP50 369B1851G5002
- Speed Input: 1 channel, 1 Hz to 20 kHz.
- Sensor Types: Magnetic, Hall Effect, Eddy Current.
- Resolution: 0.01%.
- Analog Inputs (AI): 6 channels. Options: 0-20mA, 0-5V, ±10V.
- AI Accuracy: 0.1%.
- Digital Inputs (DI): 8 channels with 1-50ms filter.
- Digital Outputs (DO): 6 channels, 250V AC/DC at 0.1A.
- Sequence of Events (SOE): Supported on DI/DO, 1ms accuracy.
- Isolation: 500V AC (channel-ground), 1500V AC (system).
- Operating Temperature: 0°C to +60°C.
- Power Supply: Redundant 24V DC.
- Power Consumption: 1.76W (typical), 10.2W (max).
- Processor: Intel 64-bit, 1.66 GHz.
- Memory: 1 GB DDR2 RAM, 2 GB Flash.
- Control Network: 1 Gbps redundant Ethernet.
- I/O Network: 1 Gbps redundant Ethernet.
- Real-time OS: QNX®.
- Scan Cycle: As fast as 40ms.
- Certification: CE marked.
Easy Setup & Long-Term Use
Installation: Mount on a standard DIN rail. Use proper wiring guidelines. Ensure good grounding.
Commissioning: Configure quickly with standard tools. Clear indicators confirm operation.
Maintenance: Simple visual checks via LEDs. Remote diagnostics minimize downtime.
Compatibility: Integrates with the full GE Nexus I/O platform. Connects to common control systems.
What You Receive
- One (1) GE Nexus MSP50 Module.
- Installation and User Documentation.
- Complimentary 12-Month Warranty.
Warranty: We offer a full 12-month warranty against defects. Contact our support team for service.
Global Shipping: We ship worldwide via FedEx, UPS, and DHL for reliable delivery.
Where It Is Used
- Overspeed protection for gas and steam turbines.
- Critical pump and fan monitoring.
- Speed control in compressor stations.
- Condition monitoring in power generation.
Customer Questions Answered
Q: Can this module work with my existing vibration probes?
A: Yes. The MSP50 supports common eddy current probes used for speed and vibration.
Q: How fast can it trigger a shutdown?
A> With its 40ms scan cycle and hardware logic, response is very fast for critical trips.
Q: Is special software needed for configuration?
A: It uses GE’s standard toolkit, familiar to control engineers for easy setup.
Q: From a maintenance view, is it complex?
A> Most users find it straightforward. The front LEDs give immediate health status, reducing guesswork.
Q: What is the common power supply hookup?
A: Use a clean, well-regulated 24V DC source. Connect to both terminals for full redundancy.
