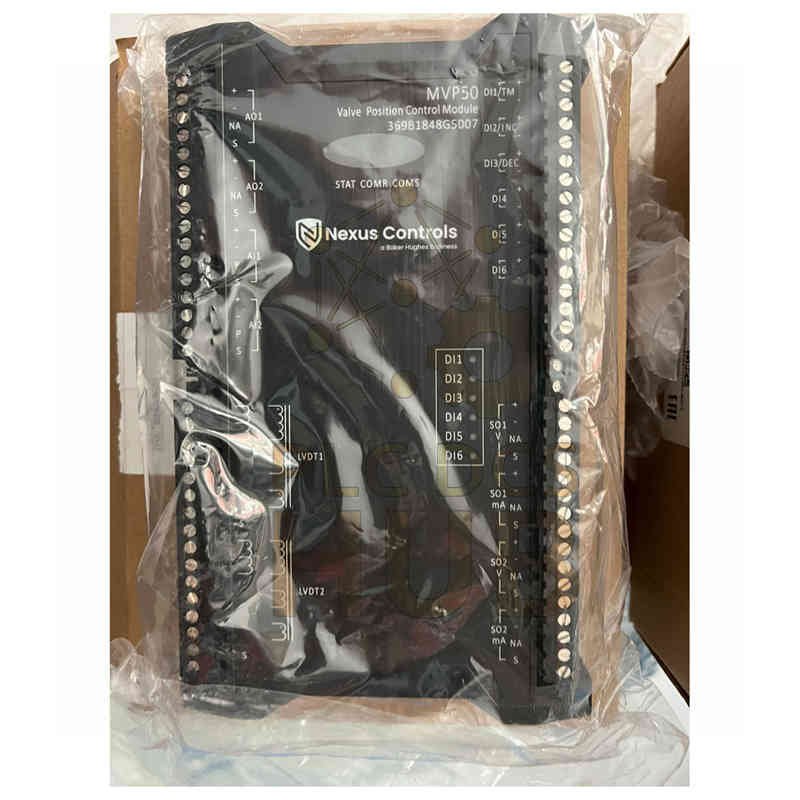

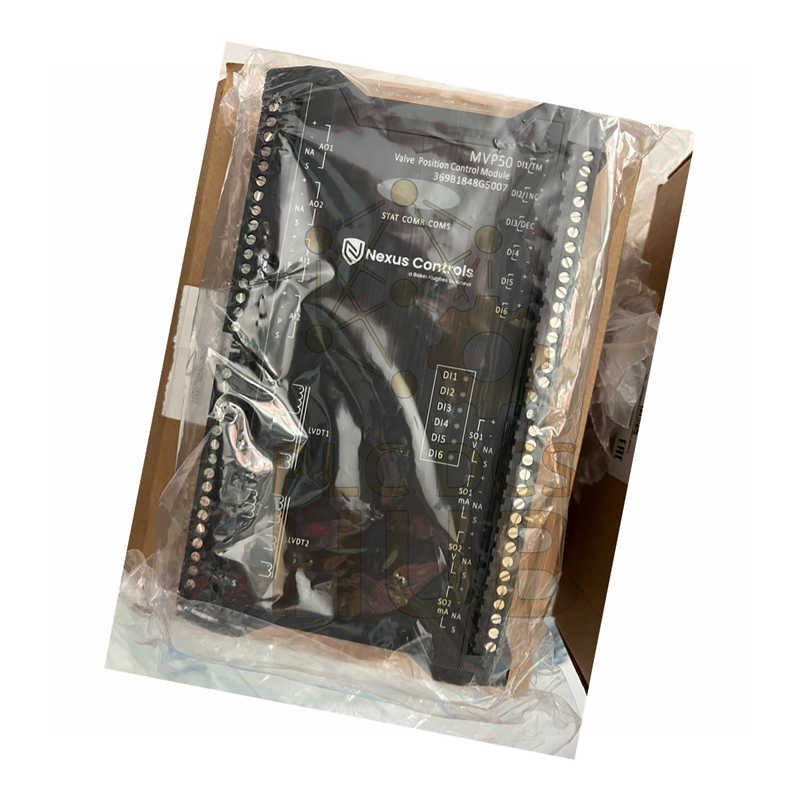

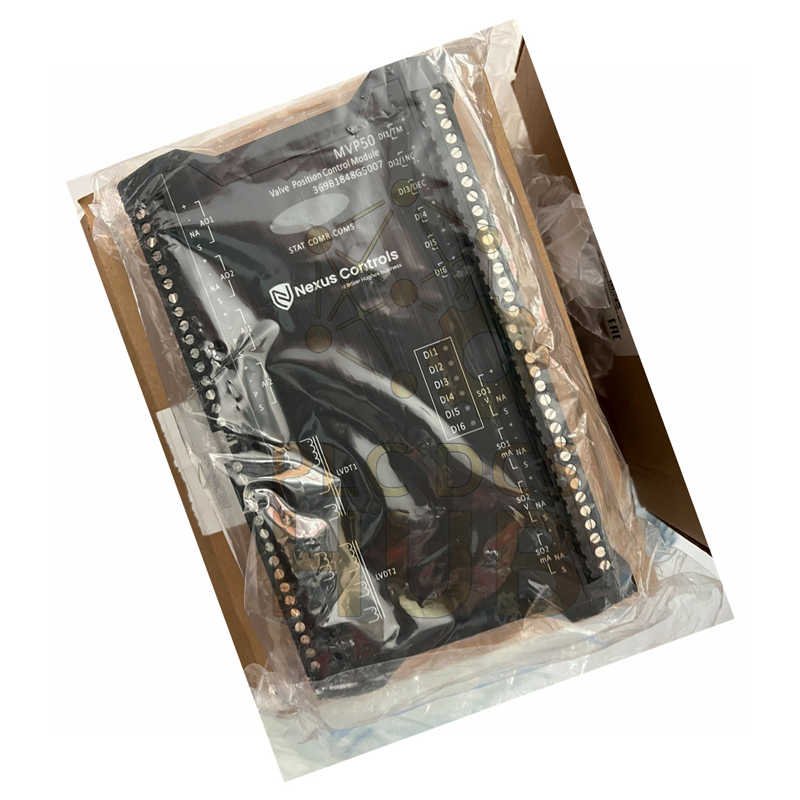

GE Nexus MVP50 369B1848G5007 Valve Position Control Module

Description

Product Introduction

The GE Nexus MVP50 369B1848G5007 module delivers precise valve position control.

The module supports LVDT feedback and fast servo control.

The controller uses a 1.66 GHz Intel CPU and QNX real-time OS.

The system runs reliable 40 ms scan cycles and redundant networks.

Technical Specifications

• Brand: GE
• Model: 369B1848G5007
• Series: Nexus MVP50 Valve Control Module
• LVDT Inputs: Two channels. Support 3-wire or 6-wire LVDTs. Line break detection.
• Analog Inputs: Two channels. Accept 0–20 mA, 0–5 V, ±10 V.
• Servo Outputs: Two outputs. ±40 mA or ±10 V. Channel fault detection.
• Analog Outputs: Two channels. 0–5 V.
• Digital Inputs: Six isolated DI channels.
• Signal Filtering: Firmware filter 3–50 ms. Default 24 ms.
• Isolation: 500 VAC channel-to-ground. 1500 VAC channel-to-system.
• Power: Redundant 24 VDC input. Typical 3.7 W. Peak 10.7 W.
• Processing: 64-bit Intel 1.66 GHz CPU. 1 GB DDR2. 2 GB flash.
• Networking: 1 Gbps redundant UDH control network. 1 Gbps I/O network. 1 Gbps unit tracking link.
• I/O Capacity: Four 1 Mbps serial buses. Up to 12 modules per bus. Max 48 modules.
• System OS: QNX real-time multitasking.
• Timing: 40 ms scan cycle. NTP sync ±1 ms. SOE accuracy 1 ms.
• Environment: Operating range 0–60 °C.
• Certification: CE compliance through system integration.

Installation Guide

• Mount the module in a clean, dry panel.
• Feed stable redundant 24 VDC power.
• Use shielded cables for LVDT wiring.
• Ground shields at one end only.
• Check isolation before live operation.
• Match LVDT excitation to field devices.

Commissioning and Maintenance

• Run step tests to verify valve motion.
• Confirm LVDT zero and span levels.
• Check servo current during load tests.
• Review event logs weekly.
• Update firmware only during planned downtime.

Compatibility Information

• Works with Nexus I/O modules and Nexus controllers.
• Fits GE redundant network architectures.
• Accepts standard industrial LVDT transducers.
• Integrates with PLC and DCS supervisory systems.

Packing List

• One GE Nexus MVP50 369B1848G5007 module.
• One terminal set.
• One factory test sheet.
• One installation note.

Warranty

• 12-month warranty from delivery.
• Warranty covers hardware faults under normal use.

Shipping Options

• FedEx
• UPS
• DHL

Typical Applications

• Steam turbine valve control.
• Gas turbine fuel valve control.
• Compressor guide vane control.
• Pump stroke and actuator control.
• High-speed position feedback.

Diagnostic Capability

• Real-time channel status indicators.
• LVDT open-circuit detection.
• Servo output fault detection.
• Fast event capture with 1 ms SOE.
• System and network alarm logs.

FAQ

How do I verify LVDT wiring?

Check coil resistance, excitation polarity, and shield termination.

How do I tune the servo loop?

Adjust current gain and output limits during field tests.

Why does the module show unstable feedback?

Reduce filter time or inspect ground loops and cable routing.

How can I check network redundancy?

Force one link offline and confirm seamless control.

How do I keep stable operation in high heat?

Ensure panel airflow and limit dust buildup.

Download the product manual for full setup and wiring diagrams.
