Description
Affordable Machine Protection

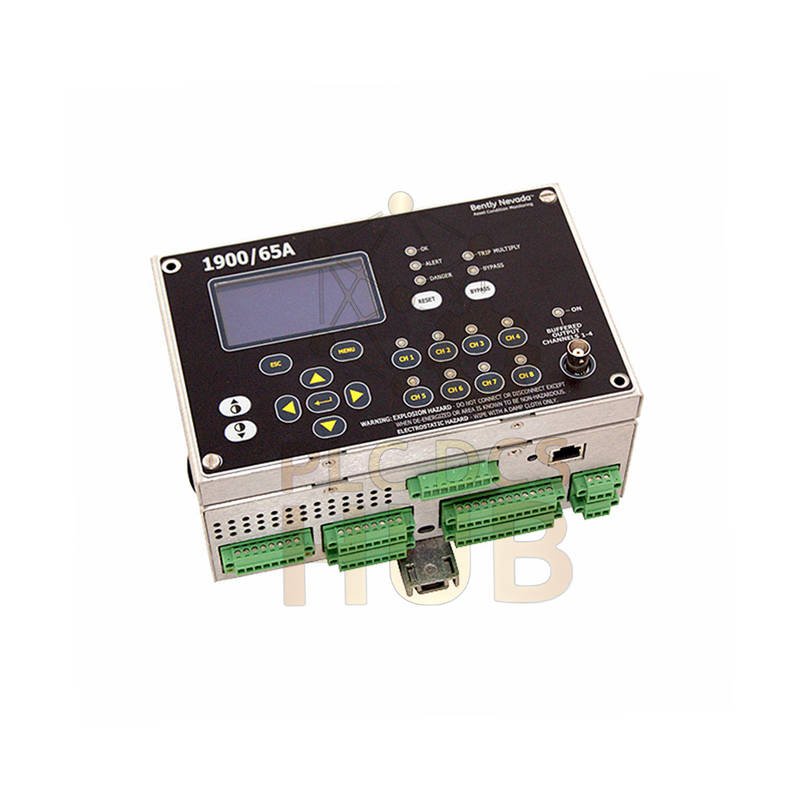

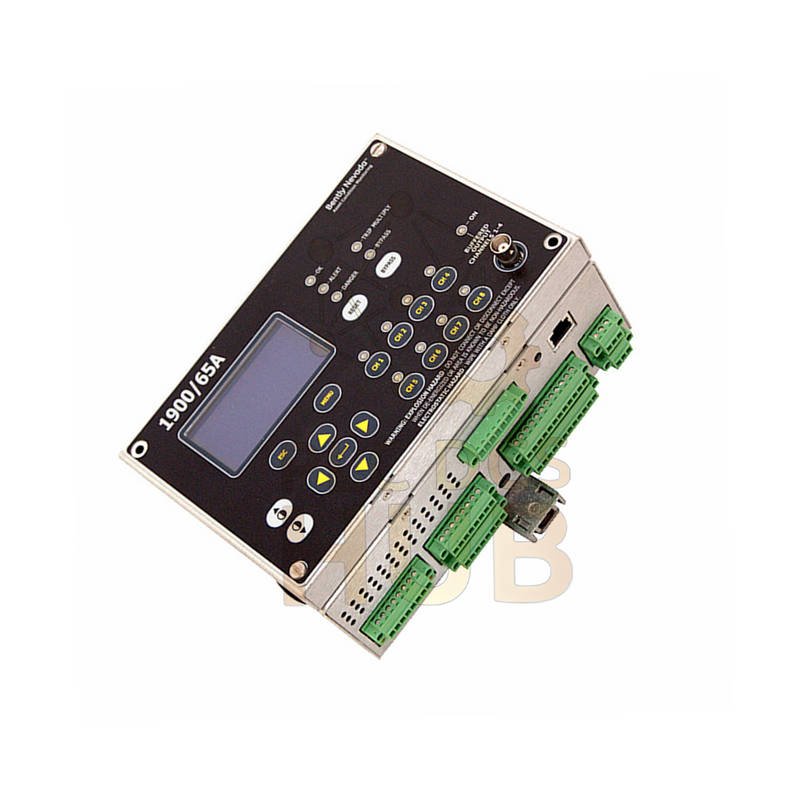

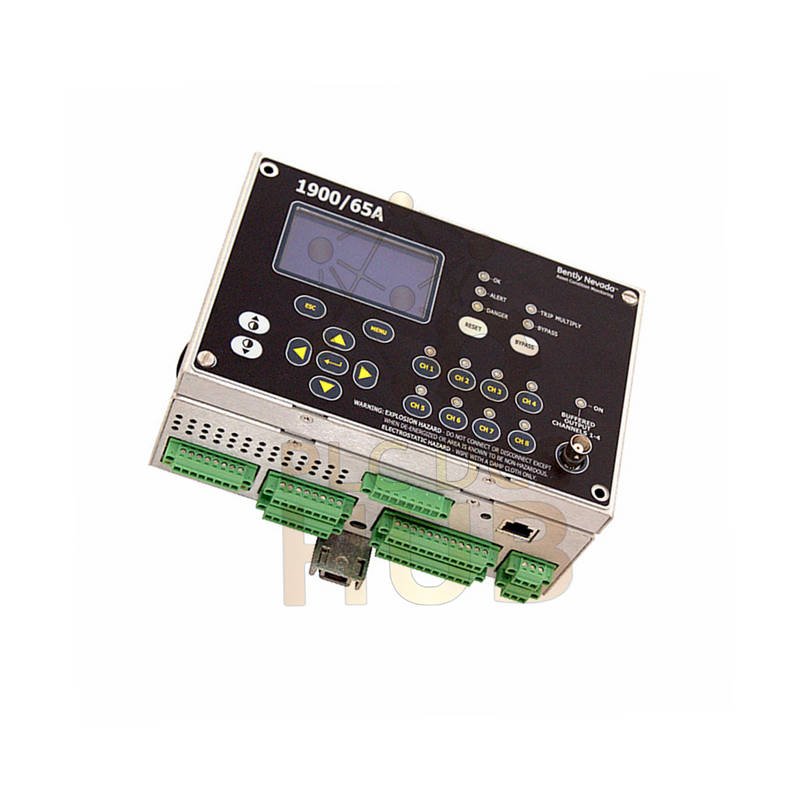

The Bently Nevada 1900/65A-00-00-03-00-00 monitor watches your equipment continuously. It is a low-cost solution for general machines. Protect pumps, fans, and conveyors from damage. This reliable monitor helps prevent expensive downtime. Its simple design makes installation easy.
Core Features & Benefits
- Budget-Friendly: Get Bently Nevada quality at a great price.
- Versatile Use: Works on many types of industrial equipment.
- Continuous Monitoring: Always watches for machine problems.
- Simple Setup: Easy to install and configure.
- Rugged Housing: Built tough for plant environments.
Complete Technical Specifications
- Full Model: Bently Nevada 1900/65A-00-00-03-00-00
- Product Type: General Purpose Equipment Monitor
- Power Input: 18 to 36 VDC wide range
- Current Draw: 0.35A typical, 1.0A maximum
- Power Use: 8.5W typical, 14W maximum
- Monitor Size: 196.9mm L x 149.4mm W x 74.4mm H
- Monitor Weight: 0.77 kg (1.70 lb)
- Enclosure Type: NEMA 4X/IP66 Fiberglass with window
- Enclosure Size: 300.2mm x 249.4mm x 209.8mm
- Mounting Options: DIN rail or bulkhead plate
- Operating Temp: -20°C to +70°C
- Storage Temp: -30°C to +90°C
- Humidity Rating: 95% non-condensing
- Input Channels: Accepts speed, vibration, temperature signals
- Alarm Outputs: Relay contacts for warning and danger
Package & Support Details
- Includes the 1900/65A monitor module in housing.
- Comes with all necessary mounting hardware.
- Backed by a 12-month product warranty.
- Shipped worldwide via FedEx, UPS, and DHL.
- Fast delivery with full tracking provided.
Simple Purchase Guide
The 1900/65A-00-00-03-00-00 is ready for general machines. Check your required sensor inputs first. You will need a 24VDC power supply separately. This model has no display. Order now for reliable equipment protection.
Frequently Asked Questions
What machines are best for this monitor?
It is perfect for pumps, fans, blowers, and basic motors. Use it on any non-critical machine needing protection.
Can I see machine data without the display option?
Yes. You can view data through relay outputs or connect it to a control system. The -00 suffix means no local screen.
How many sensors can connect to this unit?
The monitor accepts multiple input types. Typically, it handles one or two primary measurement signals for protection.
What’s a common installation tip for this model?
Use the DIN rail mount inside the enclosure for easy service. Leave space for wire bending as shown in the manual.
Is this compatible with existing Bently Nevada systems?
Yes. The 1900/65A can work alongside other monitors. It provides basic protection at a lower cost point.
