Description

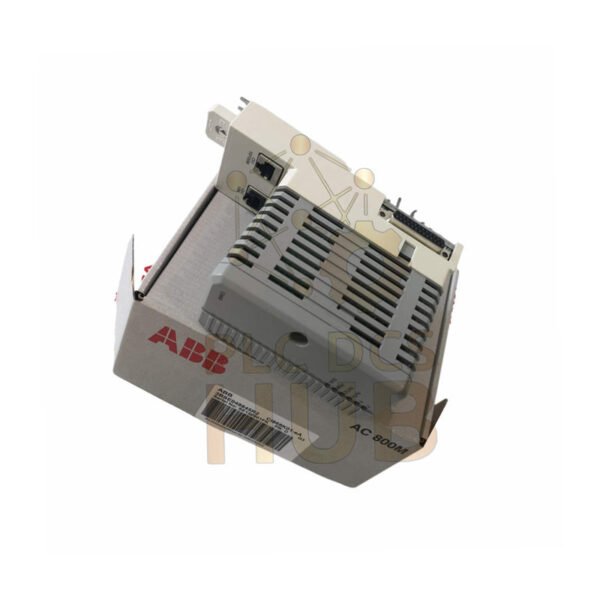

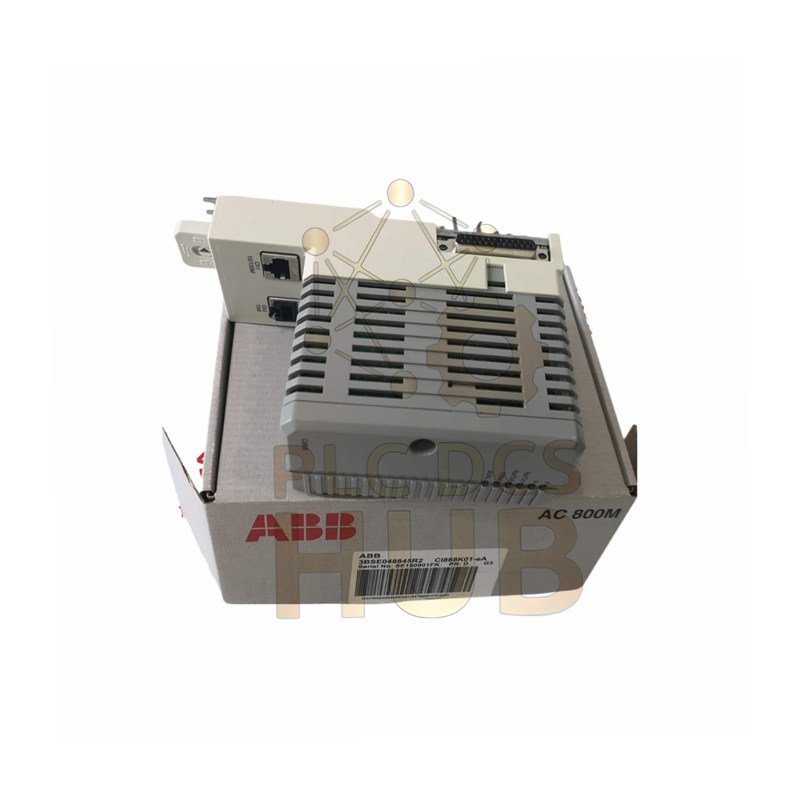

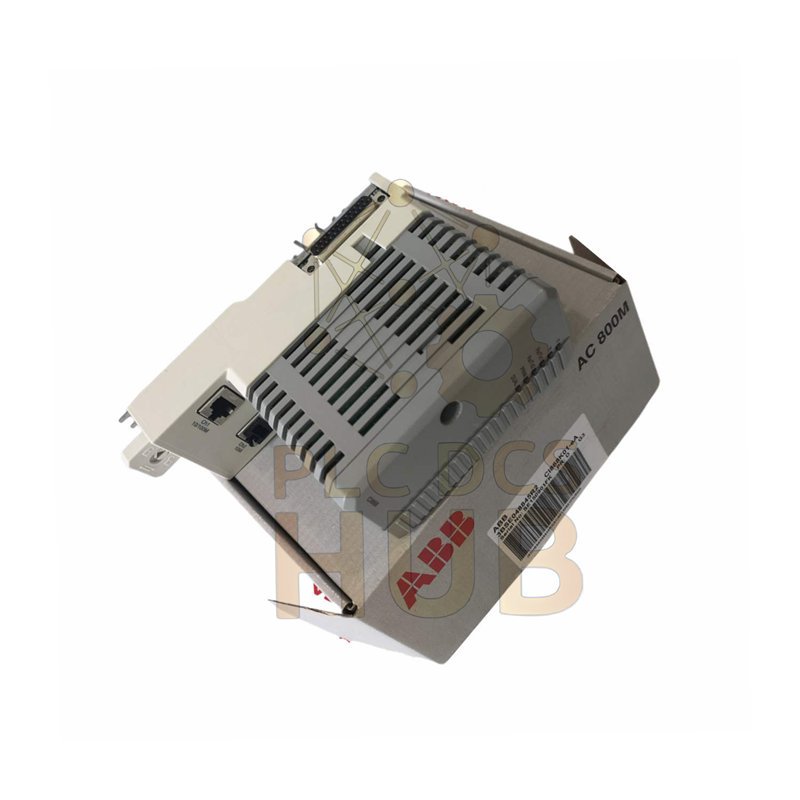

Product Overview: ABB CI868K01 IEC 61850 Interface
The ABB CI868K01 is a vital communication module.
It provides a robust IEC 61850 Interface for industrial systems.
This component ensures seamless integration in substation automation.
It is sold under the part number 3BSE048845R1.
The package contains the CI868 Communication Interface and TP867 Baseplate.
Install this module for reliable, high-speed data exchange.
Key Technical Specifications
- Manufacturer: ABB
- Part Number: 3BSE048845R1
- ABB Type Designation: CI868K01
- Product Type: Communication Module
- Core Function: IEC 61850 Communication Interface
- Dimensions (Net):
- Depth / Length: 127.5 mm
- Height: 186 mm
- Width: 59 mm
- Net Weight: 0.7 kg (1.54 lbs)
- Environmental Compliance: Follows EU Directive 2011/65/EU (RoHS Information)
- Certifications: Specific certifications available upon request.
System Integration and Compatibility
- Compatibility: Designed for seamless integration into ABB control systems.
- Interoperability: Ensures effective data exchange using the IEC 61850 standard.
- Installation Guide: Consult the official ABB manual for setup. Proper seating on the TP867 baseplate is key.
- Maintenance: The module design supports easy hot-swap replacement.
Delivery, Warranty, and Support
- Packaging Contents:
- 1x CI868, Communication Interface
- 1x TP867, Baseplate
- Quality Assurance: We offer a 12-month warranty against defects.
- Shipping Options: We ship globally using reliable carriers: FedEx, UPS, and DHL.
Typical Applications and Diagnostic Capabilities
- Primary Use: Substation automation and power utility control systems.
- Functional Scope: Enables GOOSE messaging and client/server communication.
- Self-Diagnosis: The module provides status indicators for simple fault analysis. This aids in fast system troubleshooting.
- Data Reliability: IEC 61850 ensures high-speed, secure, and standardized communication.
Frequently Asked Questions (FAQ)
- What is the main function of this module?
It links your control system to the network using the IEC 61850 standard. - Does the baseplate come with the interface?
Yes, the TP867 baseplate is included in the package. - How do I check the module’s operational status?
Check the LED indicators. A steady green light usually means normal operation. - Can I replace this module without turning off the system?
Yes, it supports hot-swap capability in compatible rack setups. - What should I do if the communication link fails?
First, inspect the network cable connections. Then, verify the configuration settings in the controller.
