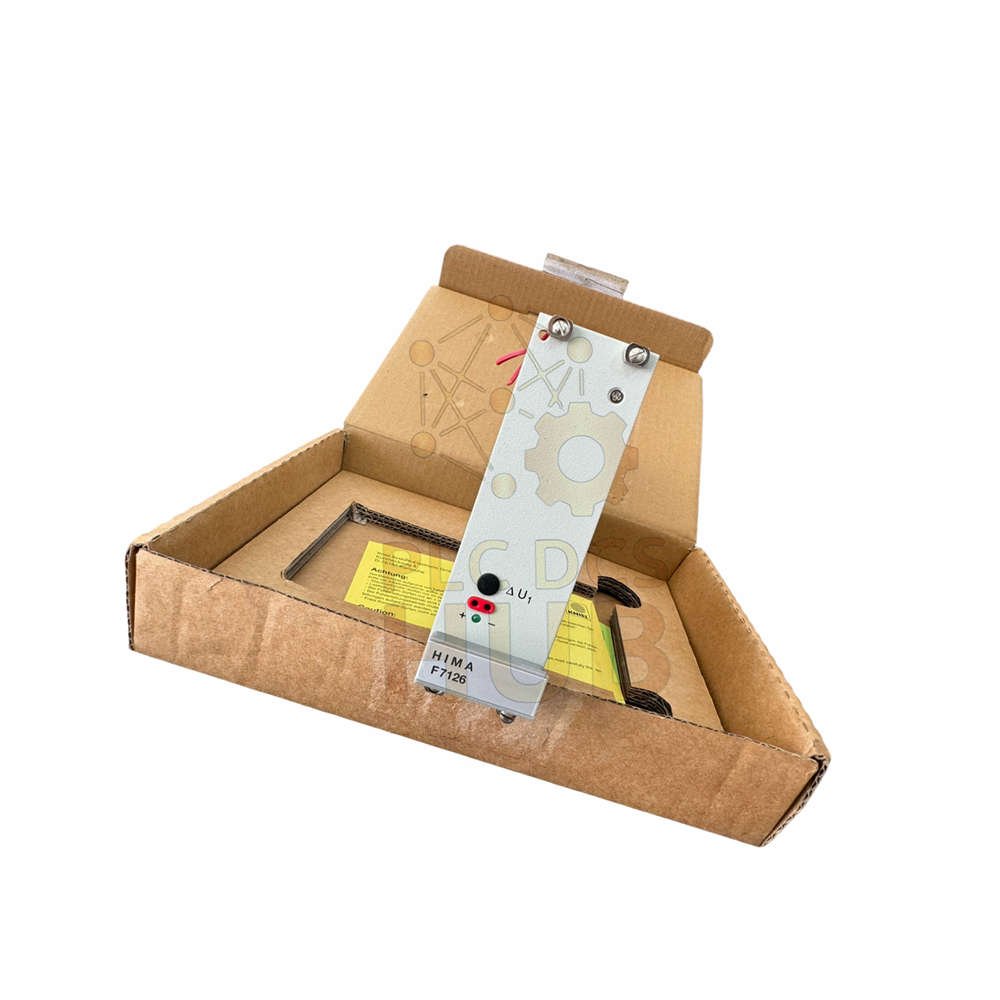

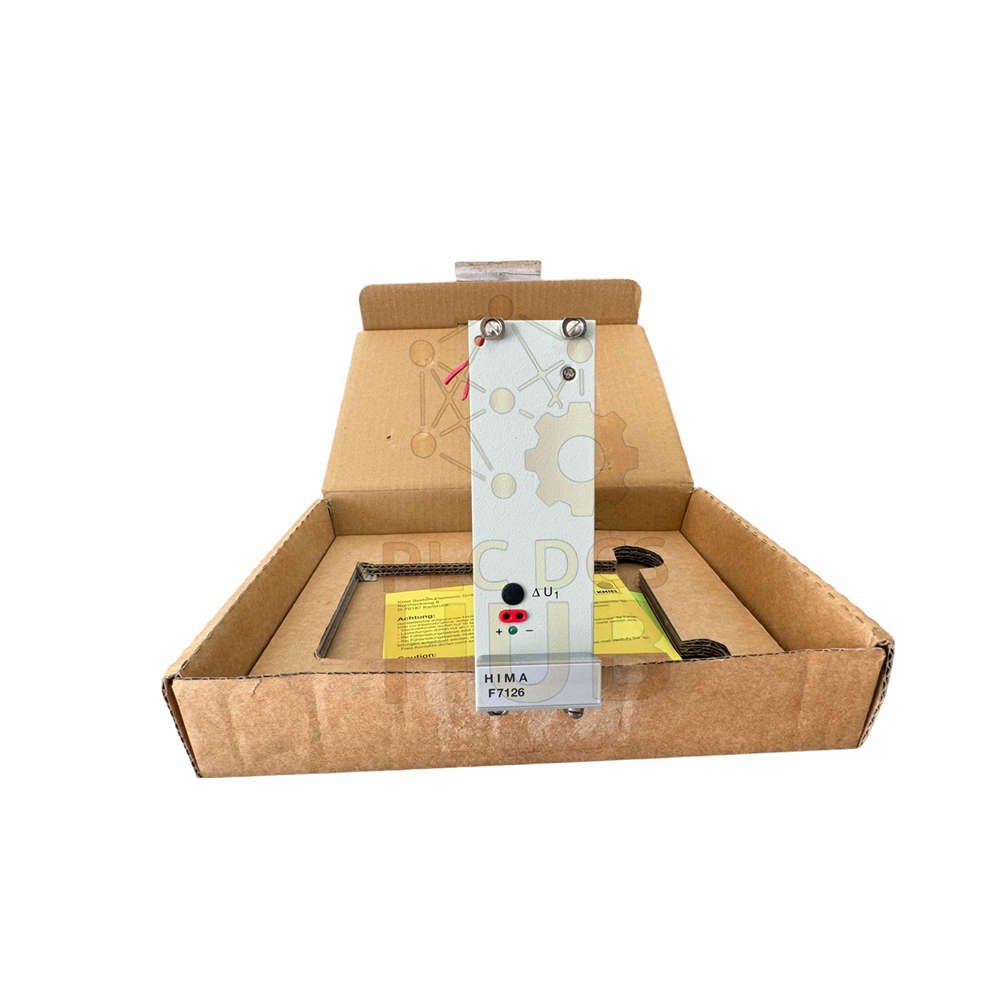

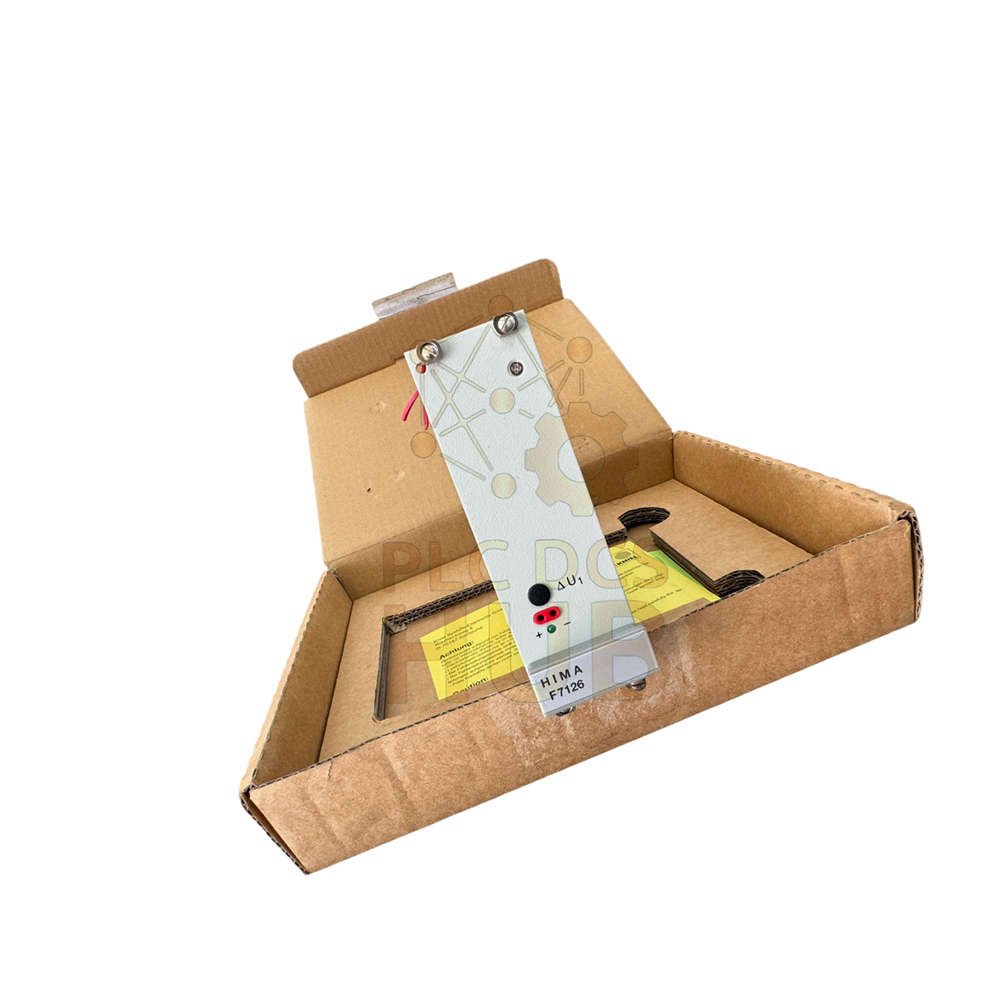

HIMA F 7126 Power Supply Module 24V/5V DC | Reliable Industrial Power

Description

Product Overview

• The HIMA F 7126 provides stable power for high-end automation systems.
• This DC/DC converter transforms 24 V DC into a precise 5 V DC output.
• It features safe isolation between input and output circuits for maximum protection.
• The 8 TE module width allows for easy integration into standard HIMA subracks.
• Industrial users rely on the F 7126 for critical power distribution reliability.

Technical Specifications

• Brand: HIMA
• Model: F 7126
• Input Voltage: 24 V DC (Range: -15% to +20%)
• Output Voltage: 5 V DC (Adjustable range: ±0.5 V)
• Output Current: 10 A
• Efficiency Rate: ≥ 77%
• Overvoltage Protection: Threshold set at 6.5 V ± 0.5 V
• Current Limitation: Approximately 13 A
• Short Circuit Proof: Integrated protection against output short circuits.
• Interference Limits: Class B according to VDE 0871/0877 standards.
• Primary Fuse: 6.3 A slow-blow type.
• Ripple Factor: Less than 15%.

PLCDCS HUB’s Insight

• The HIMA F 7126 excels in redundant power configurations.
• Maintain a voltage difference below 0.025 V for optimal load balancing.
• The front-panel potentiometer offers high-resolution tuning for specific system requirements.
• This module demonstrates excellent environmental tolerance in high-vibration industrial zones.

Applications & Compatibility

• Compatible Systems: Designed for HIMA PES automation architectures.
• Device Support: Powers logic modules, I/O cards, and communication units.
• Target Industries: Oil and gas, chemical plants, and power generation.
• Safety Functions: Ideal for SIL 3 rated safety instrumented systems.

Installation & Maintenance

• Slide the F 7126 into the rack until connectors seat firmly.
• Use the front test socket for routine voltage verification.
• Adjust the output using the accessible potentiometer for precise 5.4 V factory settings.
• The module design ensures easy replacement without complex rewiring.

Purchase & Logistics

• Condition: Brand New / In Stock.
• Shipping Partners: FedEx, UPS, DHL for fast global delivery.
• Warranty Period: 12-Month Quality Guarantee.
• Package List: One HIMA F 7126 Power Module, protective packaging.

Buying Guide & FAQ

• What is the primary function of this module?
• It provides regulated low-voltage power from a standard 24V industrial bus.
• Can I use two F 7126 modules for redundancy?
• Yes, ensure the output voltage difference is within 0.025 V.
• Is the module protected against electrical faults?
• Yes, it includes short-circuit and overvoltage protection.
• Does it require external cooling?
• Standard rack ventilation is sufficient for the F 7126 module.
