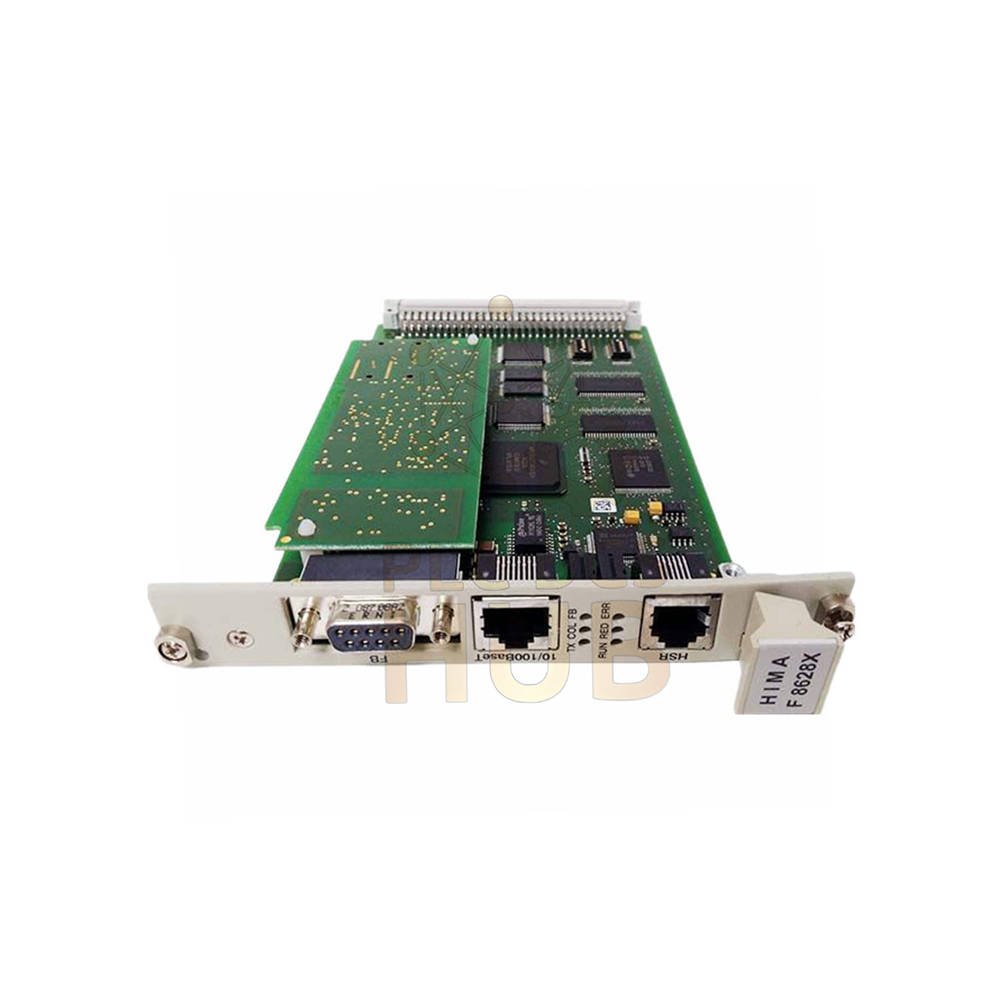

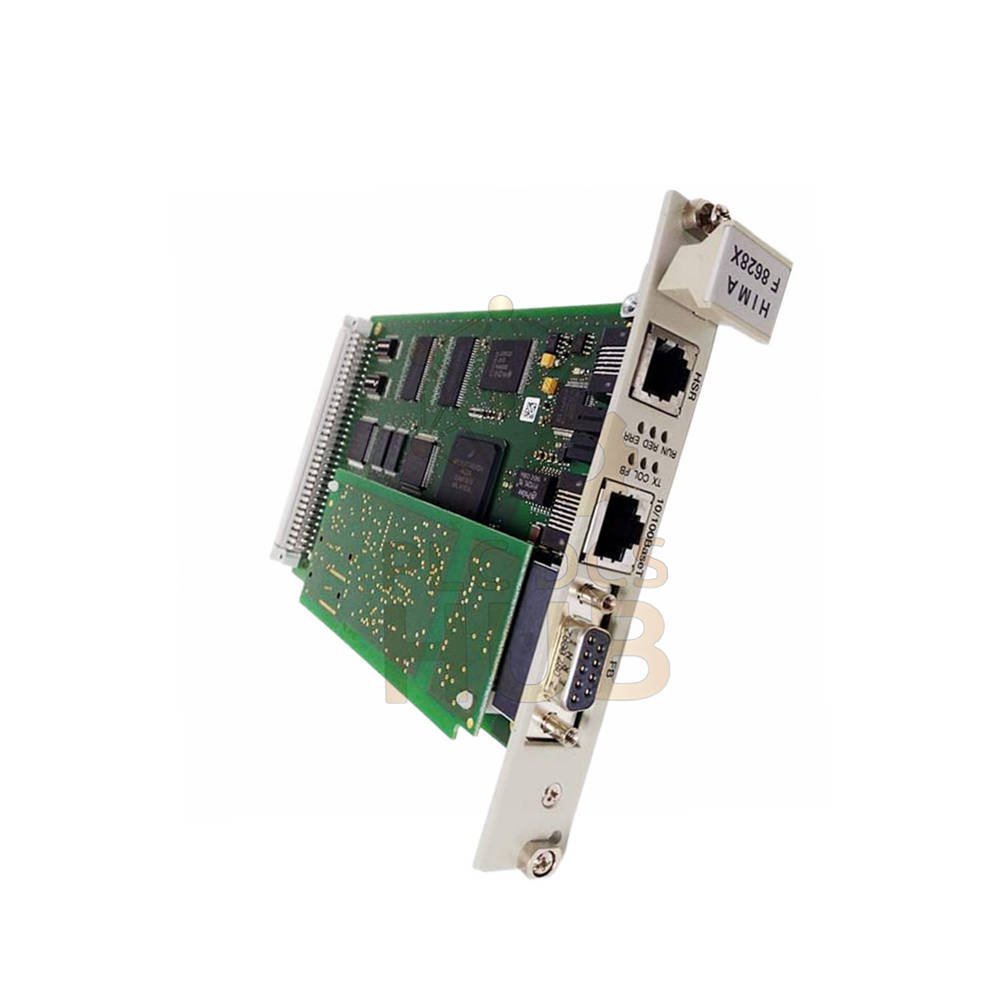

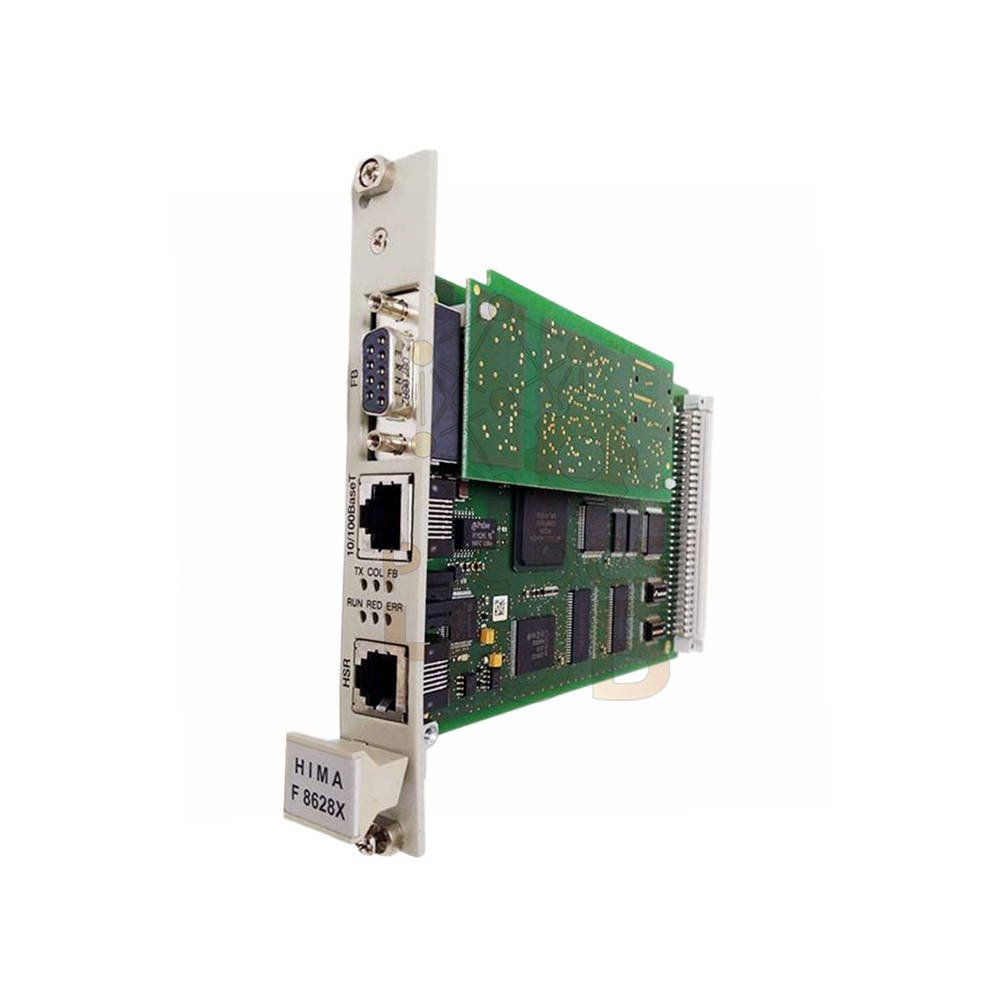

HIMA F 8628X Communication Module Profibus DP Slave New Original

Description

F 8628X HIMA Profibus DP Module Product Introduction

• The HIMA F 8628X is a high-performance Profibus DP slave module.
• It fits H41q and H51q safety systems perfectly.
• This module supports ELOP II programming via Ethernet since version 4.1.
• It simplifies network setups by using a single bus for all data.
• You get faster configuration and better system visibility with the F 8628X.
• The module remains compatible with existing 19-inch rack hardware.

PLCDCS HUB’s Insight

• The F 8628X bridges the gap between classic safety racks and modern networks.
• It replaces older serial methods with high-speed Ethernet connectivity.
• Support for MODBUS-TCP and OPC ensures your safety controller talks to modern SCADA.
• We recommend this module for plants moving toward digital transformation.
• The integrated RJ45 port makes remote diagnostics much easier.

Technical Specifications

• Brand: HIMA
• Model Number: F 8628X
• Part Number: 98 4862865
• Form Factor: 19-inch module (3 HU high, 4 WU wide)
• Interfaces: 9-pole SUB-D and RJ45 100 Base-T
• Protocols: Profibus DP, MODBUS-TCP, and OPC Alarm & Event
• Operating Temp: 0 to +60 degrees Celsius for industrial use
• Anti-Interference: High EMC shielding for noisy plant environments
• Resolution: Real-time diagnostic reporting via ELOP II software
• Environmental: Robust design for 24/7 continuous safety operation

Compatibility and Applications

• Safe CPUs: Compatible with F 8650X and F 8652X.
• Non-Safe CPUs: Compatible with F 8651X and F 8653X.
• System Type: Designed for HIMA H41q and H51q subracks.
• Industry Use: Ideal for Oil and Gas, chemical, and power plants.
• Diagnostic Power: Provides detailed status bytes to the host PLC.

Installation and Maintenance

• Mounting: Slide the module into the standard 19-inch rack slot.
• Connections: Plug RJ45 for Ethernet or SUB-D for Profibus.
• Hot Swap: Replace modules without shutting down the entire system.
• Ease of Use: Configure the IP address through ELOP II version 4.1.
• Diagnostics: Front LEDs show active communication and power status.

Shipping and Warranty

• Availability: In Stock for immediate worldwide shipping.
• Fast Delivery: Shipped via FedEx, UPS, or DHL express.
• Package List: One F 8628X module in anti-static protective packaging.
• Warranty: Includes a full 12-month warranty for peace of mind.

Buying Guide

• Check Software: Ensure your ELOP II version is 4.1 or higher.
• Confirm Model: Verify the 98 4862865 part number before ordering.
• Quantity: Order spare units to minimize downtime during maintenance.
• Expert Support: Contact us for advice on system migration projects.

Frequently Asked Questions

• Question: How does the F 8628X differ from the older F 8628?
• Answer: The F 8628X adds Ethernet programming and MODBUS-TCP support.
• Question: Does this module support redundant configurations?
• Answer: Yes, it works in both single and redundant H51q systems.
• Question: What tools do I need for configuration?
• Answer: You only need a standard PC with ELOP II and an Ethernet cable.
• Question: Is the module pre-configured?
• Answer: No, you must set the station address during system commissioning.
