HIMA F 8650X 32-Bit Processor | PES H51q Controller Module

Description

Product Introduction

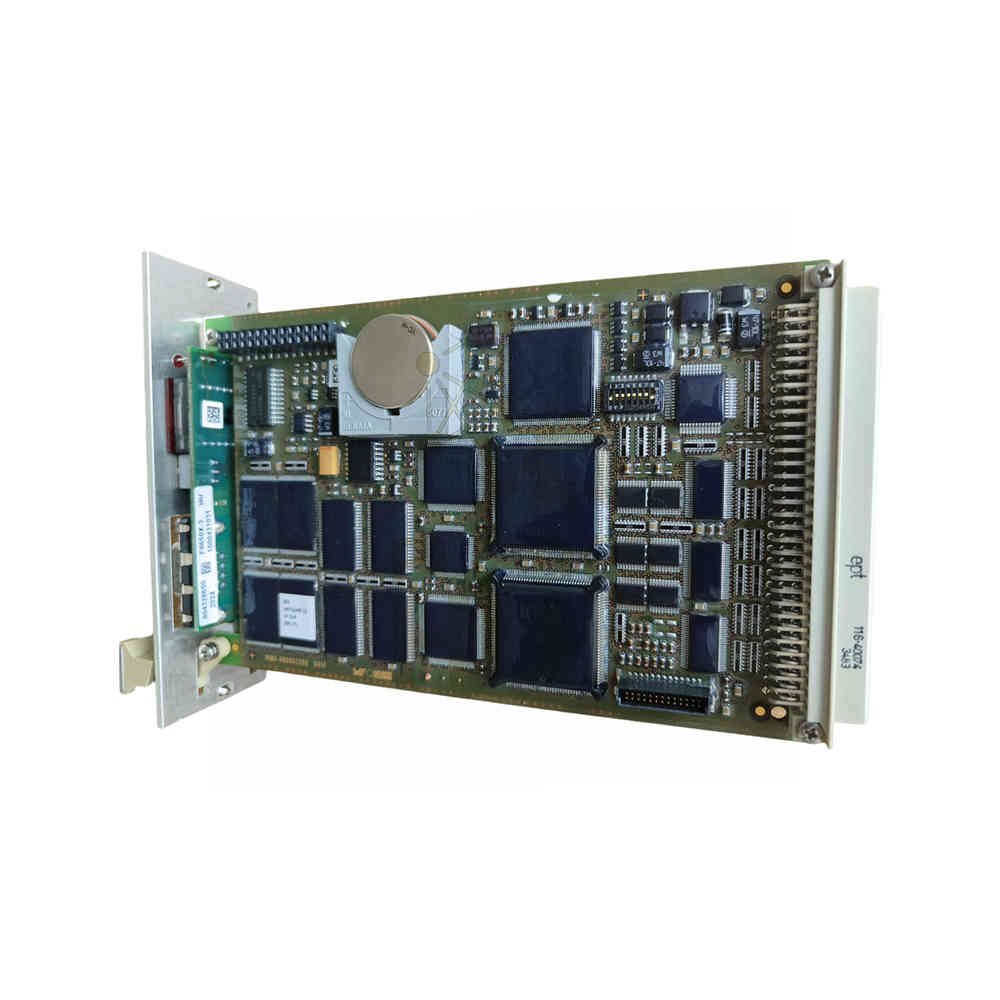

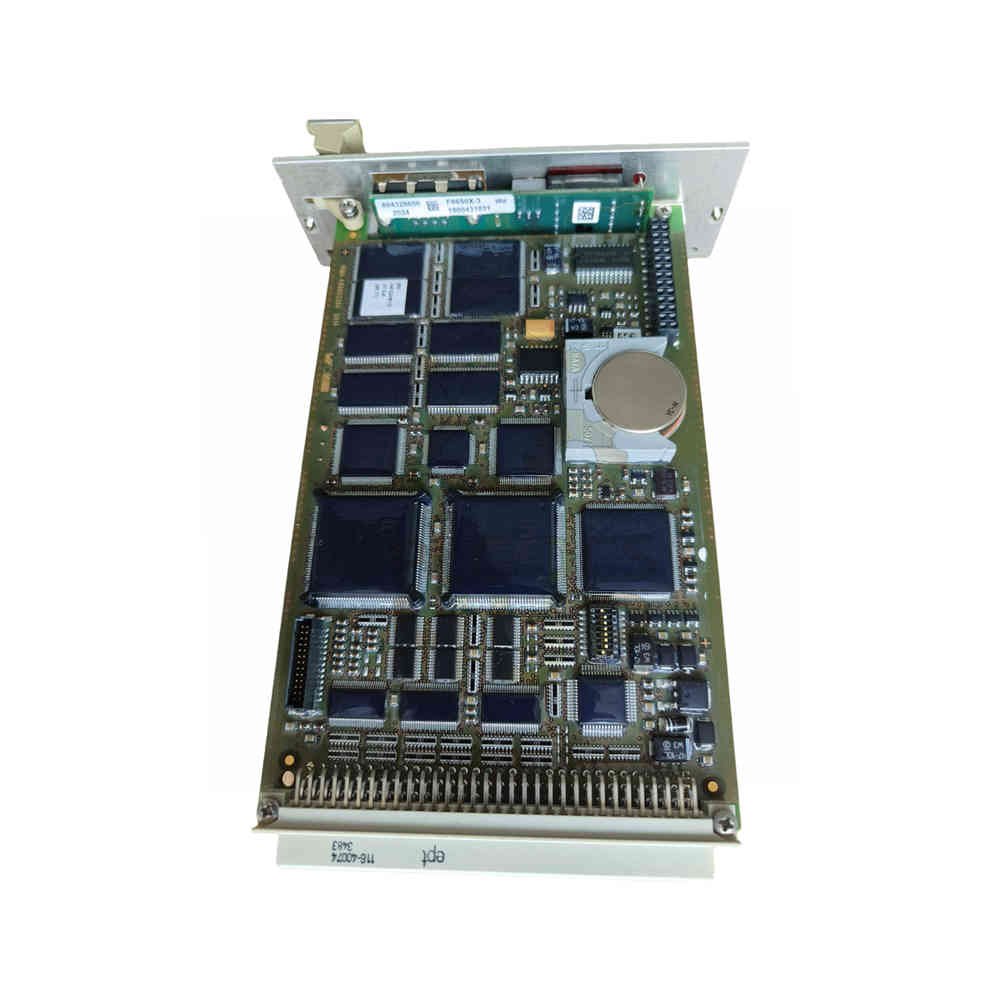

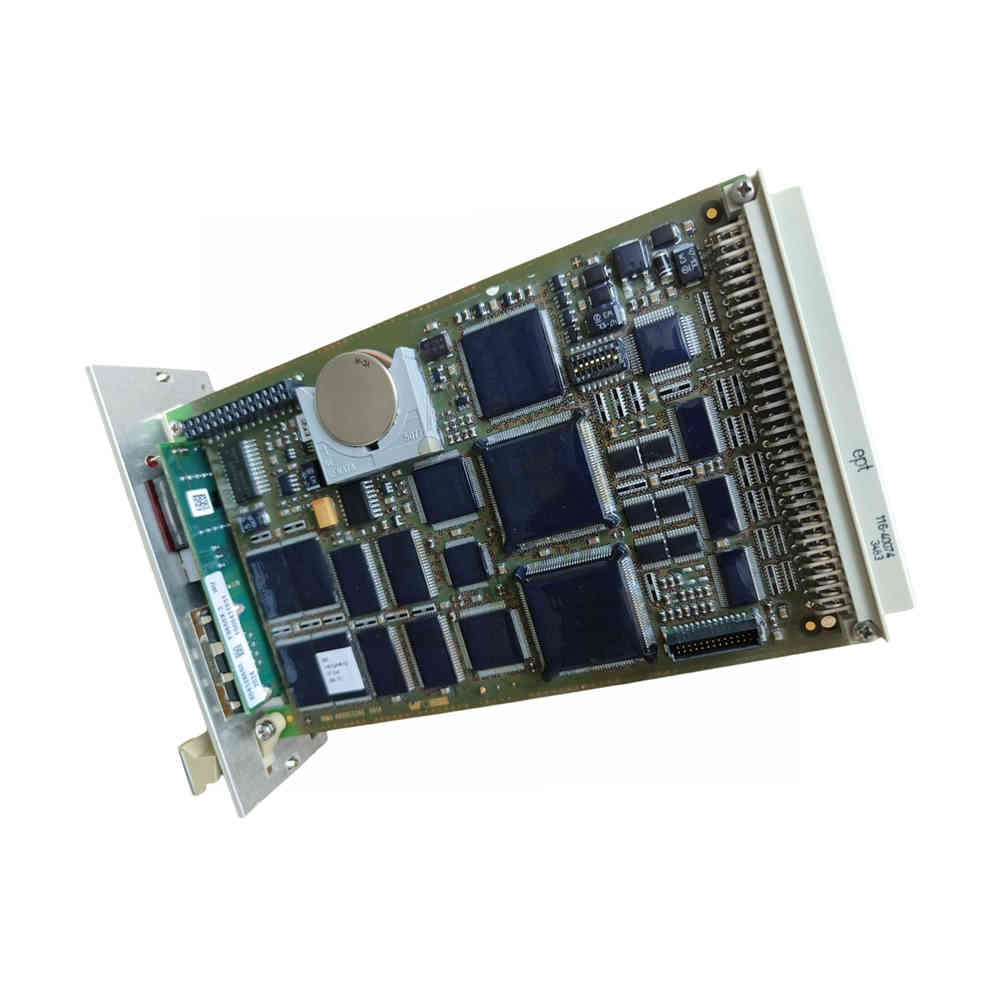

The HIMA F 8650X is a safety-related central module. It works with PES H51q-MS, -HS, and -HRS systems. This module meets IEC 61508 SIL 3 standards. It uses a 32-bit Intel 386EX microprocessor. The device runs at a 25 MHz clock frequency. It is the brain for critical safety tasks.

Key Features & Benefits

• Safety approved up to SIL 3 (IEC 61508).
• Self-education function from OS BS41q/51q V7.0-8.
• Two electrically isolated RS 485 interfaces.
• Safety watchdog with 24 V / 500 mA output.
• Four-digit matrix diagnostic display.
• Connect to Ethernet via F 8627X module.
• Supports SafeEthernet and Modbus TCP.

Technical Specifications

• Brand: HIMA
• Model: F 8650X
• Series: H51q
• Module Type: Safety-Related Central Module
• Microprocessor: Intel 386EX, 32-bit
• Clock Frequency: 25 MHz
• OS Flash-EPROM: 1 MB
• User Program Flash-EPROM: 1 MB
• Data SRAM: 1 MB
• Interfaces: 2x RS 485 (electrically isolated)
• Diagnostic Display: 4-digit matrix with LEDs
• Watchdog Output: 24 V / 500 mA (short-circuit proof)
• Power Supply: 5 V / 2 A
• Space Requirement: 8 SU
• Construction: Two European standard PCBs

RS 485 Pinout Details

• Pin 2 (RP): 5 V decoupled by diodes
• Pin 3 (A/A’): Receive/Transmit Data A
• Pin 4 (CNTR-A): Control signal A
• Pin 5 (C/C’): Data Ground
• Pin 6 (VP): 5 V positive pole
• Pin 8 (B/B’): Receive/Transmit Data B
• Pin 9 (CNTR-B): Control signal B

Environmental & Performance Data

• Temperature Range: Operates reliably at 25°C to 60°C.
• Battery Life: 1000 days at 25°C, 200 days at 60°C.
• Interference Immunity: Isolated RS 485 for noise rejection.
• Resolution: 32-bit data processing.

Installation & Compatibility

• Compatibility: Works with F 8627X communication module.
• Backplane Bus: Connects central module to Ethernet ports.
• Software: ELOP II TCP compatible (from OS V7.0-8).
• Upgrade Note: Change the fan concept when upgrading from F 8650.
• Check the bus station number on switch S1.
• Verify the transmission rate before startup.

Diagnostic Capabilities

• Four-digit alphanumeric error display.
• Two LEDs show CPU and IO errors.
• Two toggle switches request detailed error info.
• Push-button ACK resets error indication.
• In failure stop, ACK restarts the system.
• Displays “BATI” when battery is low.

Maintenance & Servicing

• Change the buffer battery after 6 years max.
• Replace within three months if “BATI” shows.
• Use Lithium battery CR 2477N (HIMA part 44 0000018).
• You can change the battery while the CPU runs.
• Refer to the “Functions of BS 41q/51q” manual for error codes.

Certifications & Compliance

• IEC 61508 SIL 3 certified for safety applications.
• Suitable for PES H51q systems.
• CE compliant (standard for industrial control).

Typical Applications

• Emergency shutdown systems (ESD).
• Fire and gas monitoring.
• Turbine and compressor control.
• Burner management systems.
• High-integrity pressure protection (HIPPS).
• Connects to Ethernet networks via F 8627X.
• Works with 3300 XL 11 mm Proximity Probes for rotor monitoring.

Package Contents

• F 8650X Central Module (1 unit).
• Diagnostic display board (pre-assembled).
• User manual reference guide.
• Warranty card (12 months).

Warranty & Shipping

• 12-month warranty against defects.
• Fast shipping via FedEx, UPS, and DHL.
• Global delivery with tracking.
• Contact us for bulk order discounts.
• Need help? Chat on WhatsApp +86 158 8020 0923

FAQ – Experience & Selection Guide

• What is the real lifespan of the buffer battery?
• In hot panels (near 60°C), replace every 12 months. At room temperature, it can last 2-3 years. Never wait for the “BATI” alert in critical plants.
• Can I use F 8650X with an old F 8650 backplane?
• Yes, but you must update the cooling fan concept. The X version runs slightly hotter. Ignoring this causes random shutdowns.
• Why does my module show no communication?
• First, check the S1 switch for correct bus station number. Second, verify the termination resistors on RS 485. 90% of issues come from these two steps.
• Is this module new or refurbished?
• We sell only genuine new units. Each F 8650X comes with a full 12-month warranty. No grey market parts.
• How do I choose between F 8650 and F 8650X?
• Always pick the F 8650X for new projects. It supports self-education and ELOP II TCP. The old F 8650 lacks these features. Only use F 8650 as a direct replacement in very old systems.
• Which communication module works best?
• Use F 8627X for Ethernet and Modbus TCP. For Profibus DP, select a different gateway. The F 8627X offers the best diagnostic data back to the central module.
