Description
Product Overview

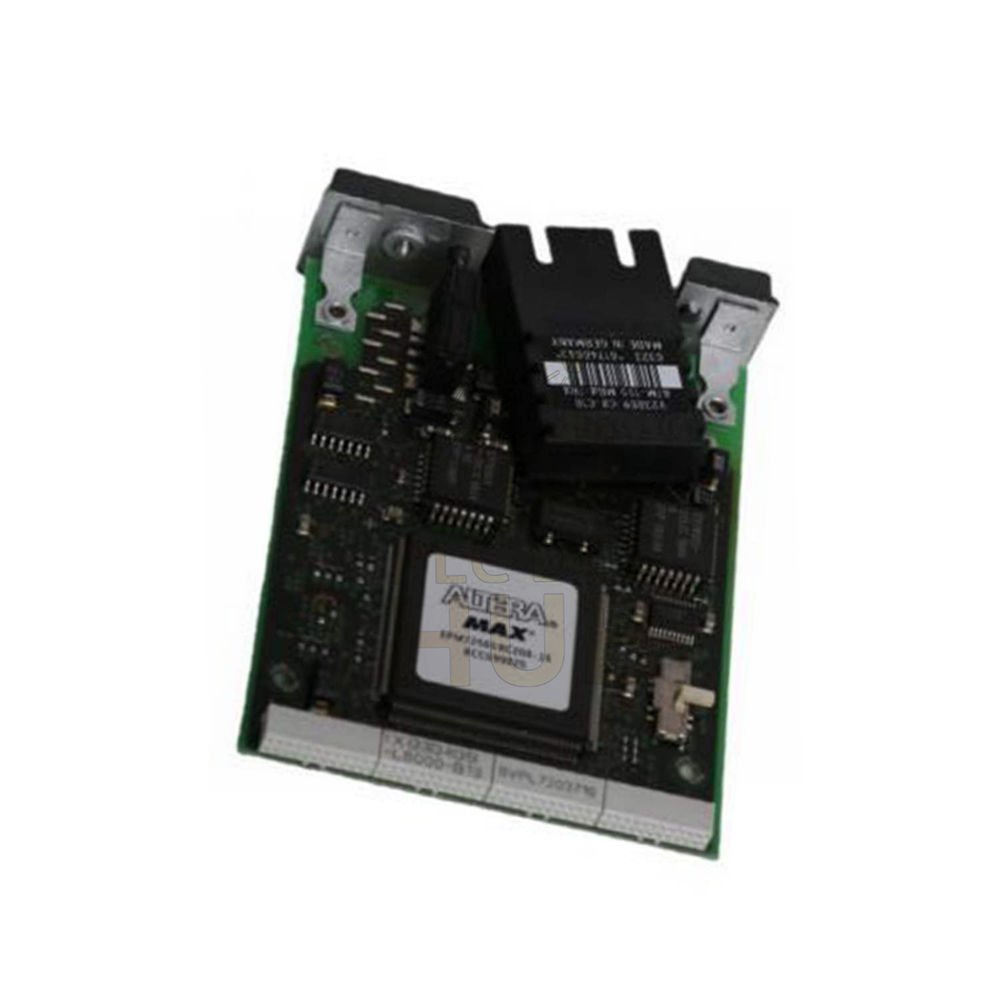

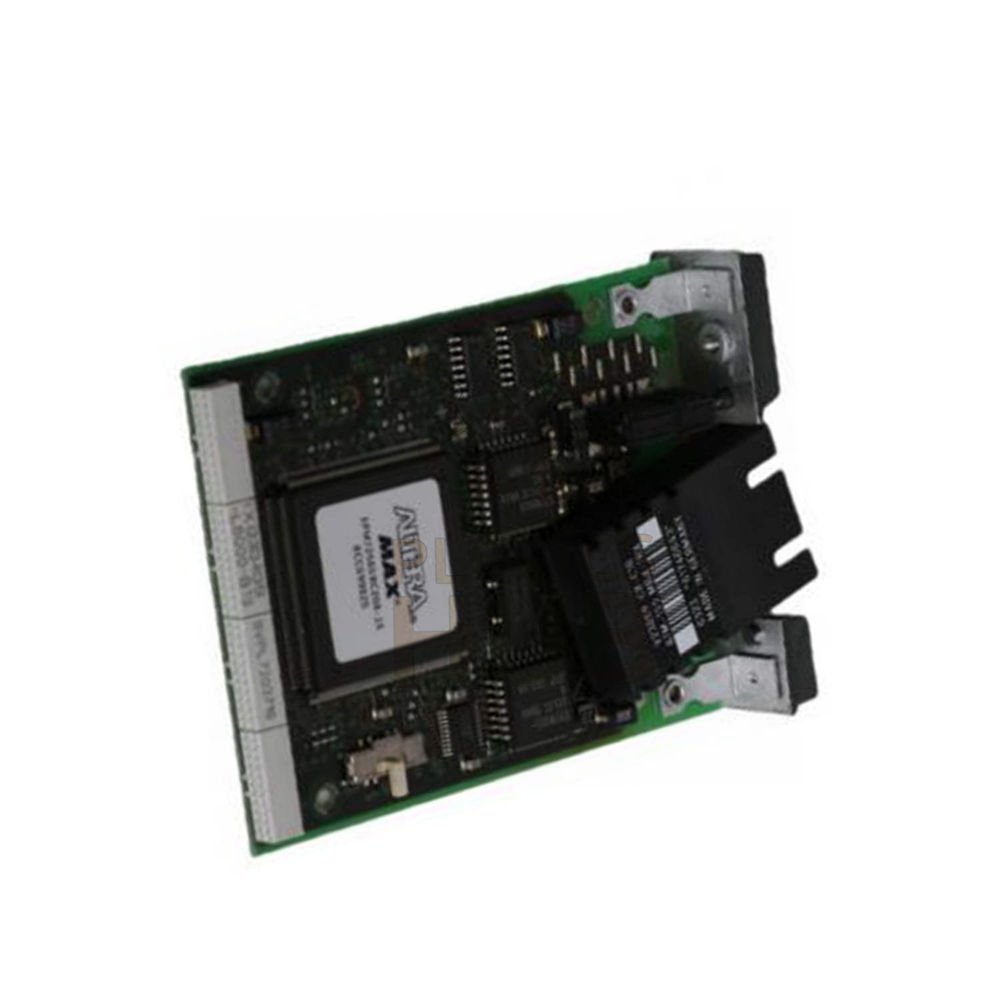

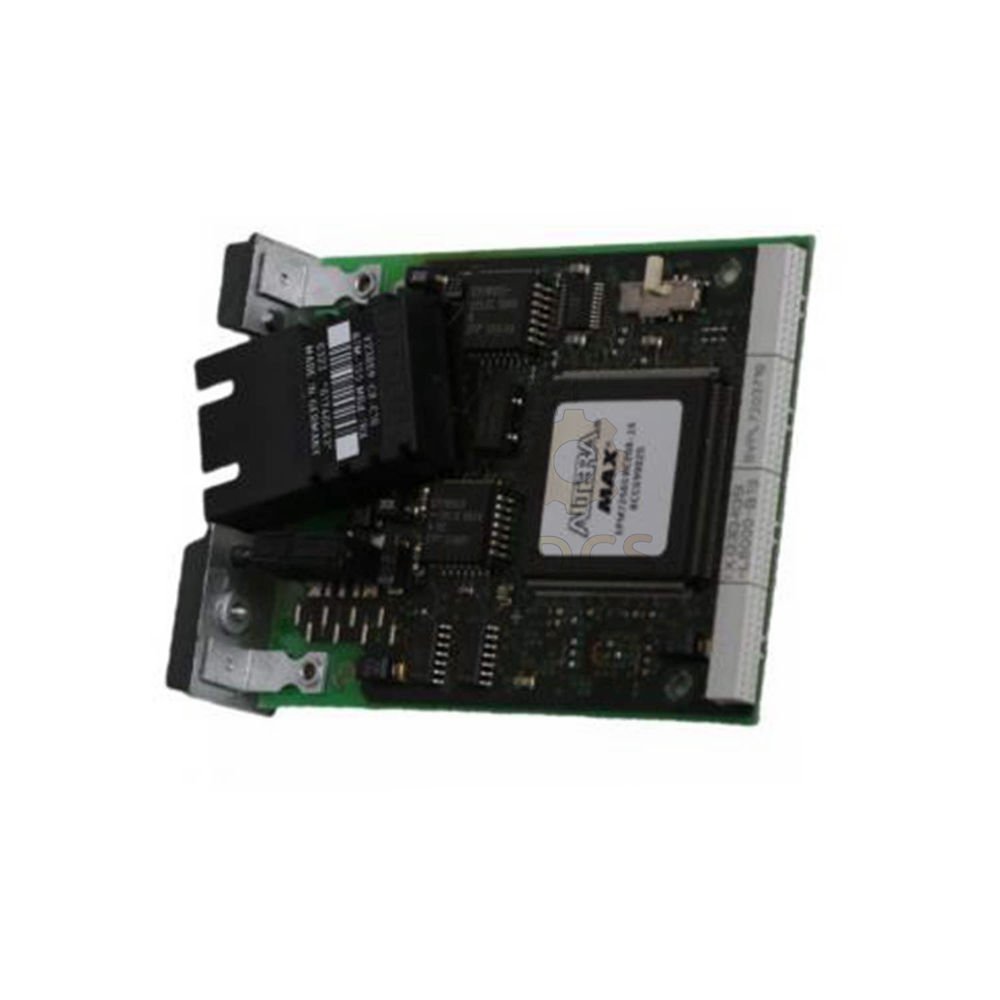

HIMA F60CPU03 is the main brain of the HIMatrix F60 controller. This CPU module handles all central tasks for your safety system.
It stores the operating system and your user program. Also, it manages communication with PADT and other systems. The module monitors both voltage and temperature automatically.
Install it only in the right slot next to the power supply module. This compact unit weighs just 280 g and fits in 6 RU, 4 HP space.
Key Features at a Glance
- 4 Ethernet ports with integrated switch
- 5 MB program and data memory
- Response time from 6 ms
- SIL 3 certified for high safety demands
- Supports safeethernet and PROFIsafe
Technical Specifications
Ethernet Communication
- Ports: 4 x RJ-45, 10/100Base-T
- Transfer mode: half and full duplex
- Auto negotiation: Yes
- Auto crossover: Yes
- IP address: freely configurable
- Subnet mask: freely configurable
- Integrated switch for easy networking
Supported Protocols
- Safety-related: safeethernet, PROFIsafe
- Standard protocols: PADT, OPC, Modbus TCP, TCP SR, SNTP, ComUserTask, PROFINET
Memory & Performance
- Total program and data memory: 5 MB (minus 64 kB for CRCs)
- Response time: 6 ms or faster
Fieldbus Interfaces
- 2 x 9-pole D-sub connectors (FB1 and FB2)
- Fieldbus submodule pluggable
Power Requirements
- Operating voltage: 24 VDC (-15% to +20%)
- Ripple: ≤ 15%
- 3.3 VDC at 1.5 A
- 5 VDC at 0.1 A
- Safe isolation per IEC 61131-2
Environmental Data
- Ambient temperature: 0°C to +60°C
- Storage temperature: -40°C to +85°C
- Buffer for date/time: gold capacitor
Physical Specifications
- Space requirement: 6 RU, 4 HP
- Weight: 280 g
Safety Certifications
- CE EMC certified
- TÜV IEC 61508 up to SIL 3
- IEC 61511:2004
- EN ISO 13849-1:2008
- IEC 62061:2005
- EN 50156-1:2004
- EN 298:2003
- EN 230:2005
- PROFIBUS Nutzerorganisation (PNO) Test Specification for PROFIBUS DP Slave, Version 3.0 (November 2005)
Installation Notes
- Insert this module only in the right slot next to the power supply.
- Make sure the subrack is powered off before installation.
- Use shielded cables for fieldbus connections.
- Keep ambient temperature within 0°C to 60°C for best performance.
Warranty & Shipping
We provide 12-month warranty from shipment date. This covers manufacturing defects only.
We ship worldwide via FedEx, UPS, and DHL. Express delivery available. Tracking number sent within 24 hours.
Professional FAQ
1. Can I use this CPU with other HIMatrix models?
No. The F60CPU03 works only with the HIMatrix F60 subrack. It will not fit in other HIMatrix series like F30 or F35.
2. What happens if the gold capacitor fails?
The date and time buffer will stop working. However, the CPU continues normal safety functions. Replace the module to restore time buffering.
3. How do I choose between safeethernet and PROFIsafe?
Use safeethernet when connecting to other HIMA systems. Use PROFIsafe when working with Siemens or third-party PROFIsafe devices. Both work well for SIL 3 applications.
4. Is this module hot-swappable?
No. You must power down the entire subrack before removing or inserting this CPU. Hot swapping can damage the module or backplane.
5. What is the real-world response time I can expect?
The datasheet says 6 ms minimum. In practice, with complex user programs and many I/O points, expect 10 to 15 ms. Test your specific configuration for accurate timing.
Selection Guide
- Pick F60CPU03 when you need a compact safety CPU for HIMatrix F60 systems.
- Choose this model if you need 4 Ethernet ports with integrated switch.
- Select this CPU for applications requiring SIL 3 safety level.
- Consider this unit when you need both safeethernet and PROFIsafe support.
- Avoid this model if you need more than 5 MB of program memory.
- For larger memory needs, check HIMA’s higher-end CPU options.
Looking for compatible I/O modules? Check our Versamax collection for additional automation components.
For questions or bulk pricing, contact us anytime.
