Description
Product Overview

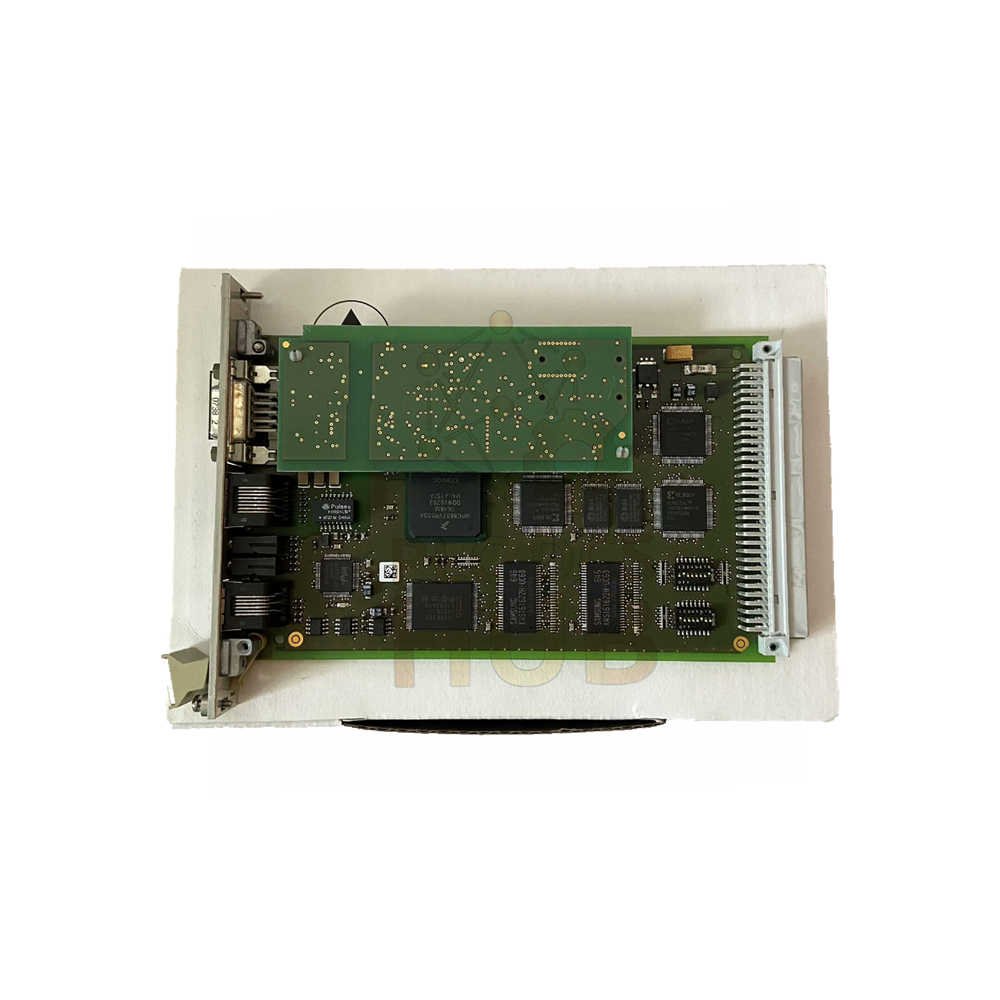

The HIMA F8628X is a communication module for Profibus DP slave protocol. It enables ELOP II programming via Ethernet (from ELOP II V4.1). This module works with new CPUs: F8650X/F8652X (safe CPU for H51q/H41q systems). It also works with F8651X/F8653X (non-safe CPU for H51q/H41q systems). Older modules F8627 and F8628 remain available. Consequently, one bus handles both programming and fieldbus communication. Thus, you save hardware costs. Moreover, it supports open system architecture.
Key Advantages
Profibus DP slave connectivity for industrial networks
ELOP II programming over Ethernet (V4.1 or higher)
Works with safe and non-safe CPUs
Dual interfaces: 9-pole SUB-D and 100 Base-T RJ45
Fits H41q and H51q 19-inch systems
Technical Specifications
Brand: HIMA
Model: F8628X
Type: Profibus DP Slave Communication Module
Protocol: Profibus DP slave
Programming: ELOP II over Ethernet (from V4.1)
Interfaces: 9-pole SUB-D (Profibus), 100 Base-T RJ45 (Ethernet)
System compatibility: H41q and H51q systems
Mounting: 19-inch module for H41q/H51q systems
Height: 3 height units (HU), 3 x 44.45 mm
Width: 4 width units (WU), 4 x 5.08 mm
Measurement range: Profibus DP cyclic data exchange
Frequency response: 12 Mbps maximum (Profibus DP)
Sensitivity: EN 50170 compliant
Linearity: Digital protocol, no analog distortion
Resolution: Bit-level Profibus data frames
Temperature range (operating): 0°C to +60°C
Temperature range (storage): -25°C to +70°C
Environmental tolerance: IP20 protection, 5% to 95% RH non-condensing
Noise immunity: EN 61000-6, EN 50082-2, high EMC resistance
Standards & Certifications: IEC 61131-2, EN 50081-2, IEEE 802.3, EN 50170
Weight: approx. 0.5 kg
Installation Guide
Fits 19-inch racks for H41q or H51q systems
Uses 3 height units (HU) and 4 width units (WU)
Insert module into compatible backplane
Connect Profibus cable to 9-pole SUB-D port
Then connect RJ45 cable for programming
No special tools needed for installation
Finally, allow space for air circulation
Commissioning & Maintenance Convenience
ELOP II auto-detects module via Ethernet
Set Profibus slave address via software
LED indicators show power, link, and bus status
No routine calibration required
Likewise, firmware updates run over Ethernet
Hot-swapping not supported, power off first
Compatibility Notes
Works with HIMA F8650X and F8652X (safe CPUs)
Works with HIMA F8651X and F8653X (non-safe CPUs)
Supports H41q and H51q system racks
Compatible with any Profibus DP master
For reference, older F8627 and F8628 still available
However, not compatible with F8627X or F8628X firmware directly
Diagnostic Capabilities
Built-in self-test on system power-up
Profibus DP bus monitoring via LED status
Error counters for communication failures
ELOP II shows live diagnostic data
Link integrity test for Ethernet port
Consequently, it logs bus timeouts and retries
Typical Applications
Connect HIMA safety controllers to Profibus DP networks
ELOP II programming in H41q or H51q systems
Factory automation with Profibus DP masters
Process control in oil and gas industries
Power generation plants using Profibus DP
Therefore, remote diagnostics via Ethernet
Frequently Asked Questions (FAQ)
Can I use F8628X with older HIMA CPUs?
No, you cannot. This module requires F8650X, F8652X, F8651X, or F8653X CPUs only.
What is the maximum Profibus DP cable length?
1200 meters at 93.75 kbps. However, at 12 Mbps, the maximum length is 100 meters.
Does F8628X support Profibus DP master mode?
No, it does not. This module works only as a Profibus DP slave device.
How do I set the Profibus slave address?
Use ELOP II software over Ethernet. Then assign an unused address between 1 and 125.
Can I program ELOP II through the Profibus port?
No, you cannot. ELOP II programming requires the RJ45 Ethernet port exclusively.
What happens if Profibus communication stops?
The module reports a bus fault via LED. Consequently, ELOP II logs the error for analysis.
Experience-based tip:
Always terminate both ends of your Profibus DP cable. Use standard Profibus terminators. Otherwise, you may see intermittent communication failures.
Which baud rate works best for long distances?
Use 93.75 kbps or 187.5 kbps for runs over 500 meters. For short distances, 12 Mbps works reliably.
My module shows no Profibus activity. What should I do?
First, check the 9-pole SUB-D wiring. Then verify the slave address. Finally, test with a known good device like 3300 XL 11 mm Proximity Probes if available.
Packing List
One HIMA F8628X communication module
One printed quick start guide
No Profibus cables or terminators included
No RJ45 cable included
Warranty & Shipping
12-month warranty against manufacturing defects
Shipping via FedEx, UPS, or DHL worldwide
Tracking number provided within 24 hours
International shipping available
Contact & Support
For inquiries: +86 158 8020 0923 (WhatsApp)
Reference Link
For similar hardware needs, check 3300 XL 11 mm Proximity Probes.
