Description

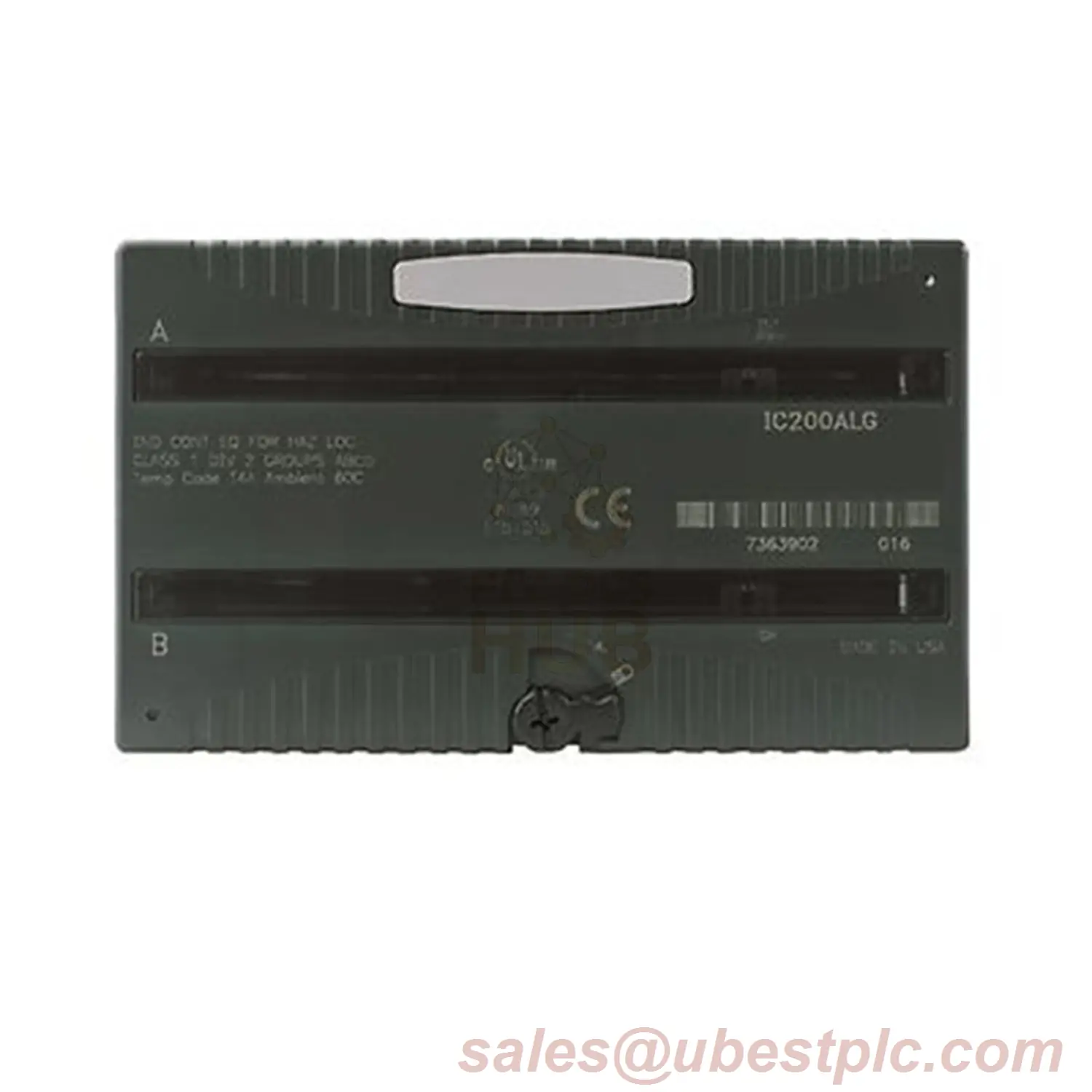

GE Fanuc VersaMax 4-Channel 10V Analog Output Module
Precision Control Made Simple
Deliver ultra-precise 0-10.24V signals with this 4-channel module IC200ALG321. Perfect for process control, it updates in 0.3ms with ±0.5% accuracy. Dual power LEDs ensure reliable operation.
Key Specifications
| Brand/Series | GE Fanuc / Emerson • VersaMax |
| Module ID | IC200ALG321 |
| Output Type | 4 single-ended voltage |
| Voltage Range | 0 to 10.24VDC |
| Resolution | 2.5mV steps |
| Accuracy | ±0.5% max (25°C) |
| Speed | 0.3ms update |
| Power | Backplane 5V/50mA + External 12-30VDC |
Why Choose This Module?
- 70dB noise isolation for clean signals
- Holds last state during power loss (safety feature)
- Works from -40°C to 85°C without derating
- Diagnostic LEDs for instant troubleshooting
Quick Setup
1. Mount on VersaMax backplate
2. Connect 12-30VDC external power
3. Wire devices to output terminals
4. Check FLD PWR and OK LEDs
Compatible Systems
All VersaMax PLCs. Not for RX3i or Series 90-70.
Package Contents
- 1x Analog output module
- 12-month warranty
- No certificates
Global Shipping
FedEx • UPS • DHL
Tracked delivery worldwide
Frequently Asked
Q: Minimum load resistance?
A: 5000 Ohms
Q: External power required?
A: Yes – 12-30VDC for field devices
Q: Accuracy at high temperatures?
A: ±1% max at 60°C
Q: Can it drive valves directly?
A: Yes – designed for actuators/valves
