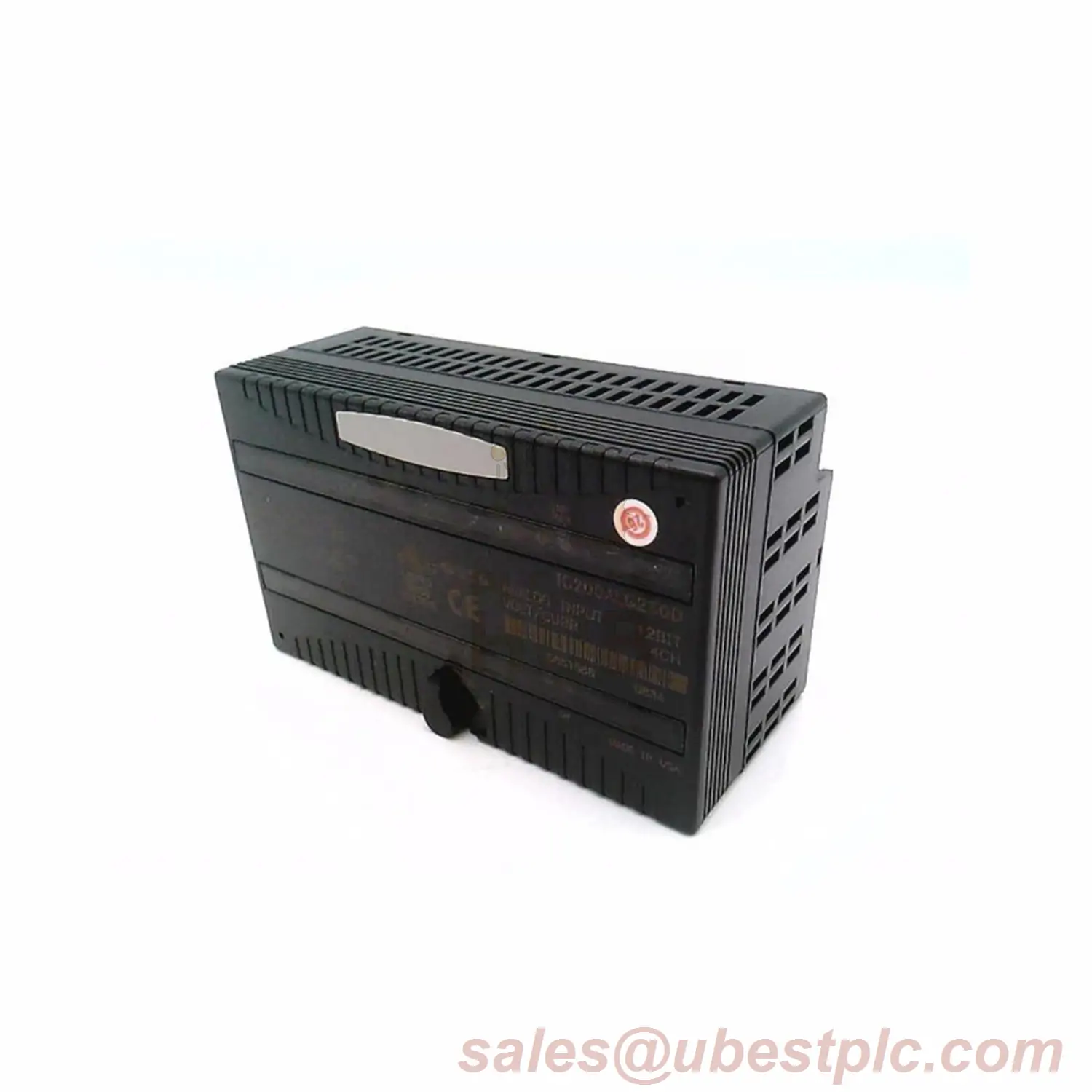

Emerson IC200ALG432 Mixed Analog Module: High-Speed Industrial I/O
Hybrid Signal Capability
Combines analog inputs and outputs in one module. Features ultra-fast 0.4ms update rate and 12-bit resolution. Ideal for compact control systems needing both monitoring and control functions.
Technical Specifications
| Brand | Emerson (formerly GE Fanuc) |
|---|---|
| Model | IC200ALG432 |
| Input Channels | 4 channels |
| Output Channels | 2 channels |
| Update Rate | 0.4ms |
| Response Time | 5ms (input) |
| Accuracy | ±0.3% @25°C ±1% @60°C |
| Power Supply | 10VDC external |
Signal Performance
- 12-bit resolution for precise control
- Common mode voltage: 0V operation
- External power required for outputs
- Inputs powered by external transceiver source
Power & Efficiency
- Total consumption: 160mA (including load)
- Backplane: 60mA @5VDC
- No thermal derating required
- Diagnostics for power loss detection
Installation Requirements
- Maximum ambient temperature: 60°C
- EMI/RFI noise protection essential
- Protection against airborne contaminants
- Front-panel LED status indicators
Diagnostics & Alarms
- User-side power loss detection
- Configurable alarm thresholds
- Real-time status LEDs
- Integrated CPU for signal processing
Shipping & Warranty
- 12-month performance warranty
- Global express shipping:
- FedEx Industrial
- UPS Critical Parts
- DHL Automation Express
- Single-slot VersaMax design
Technical FAQ
Q: What signals can this module handle?
A: Mixed analog inputs and outputs (specific ranges configurable)
Q: Is external power required?
A: Yes, 10VDC external supply needed for outputs
Q: How fast is the signal processing?
A> 0.4ms update rate with 5ms input response
Q: Can I use this in high-temperature environments?
A> Rated up to 60°C with ±1% accuracy
