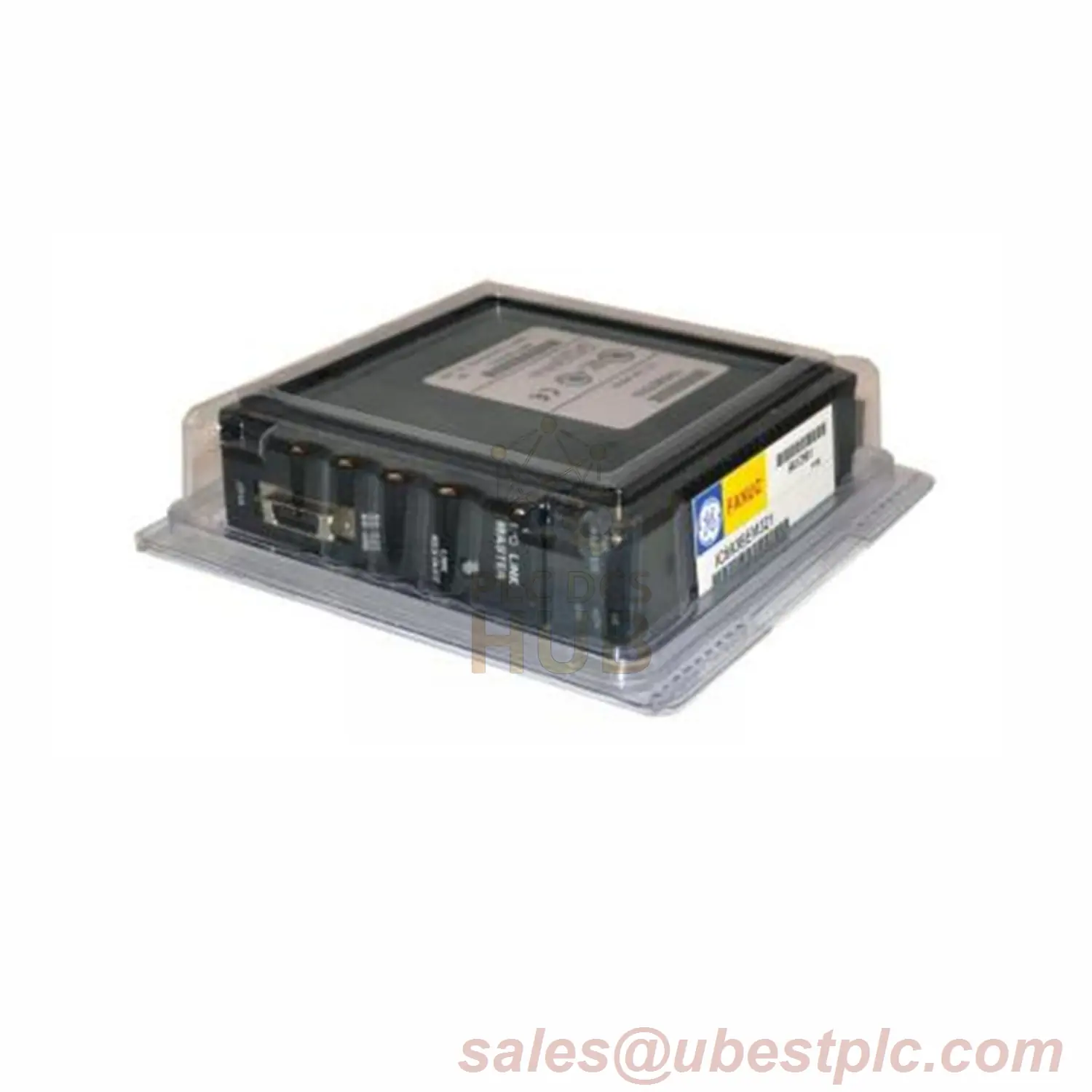

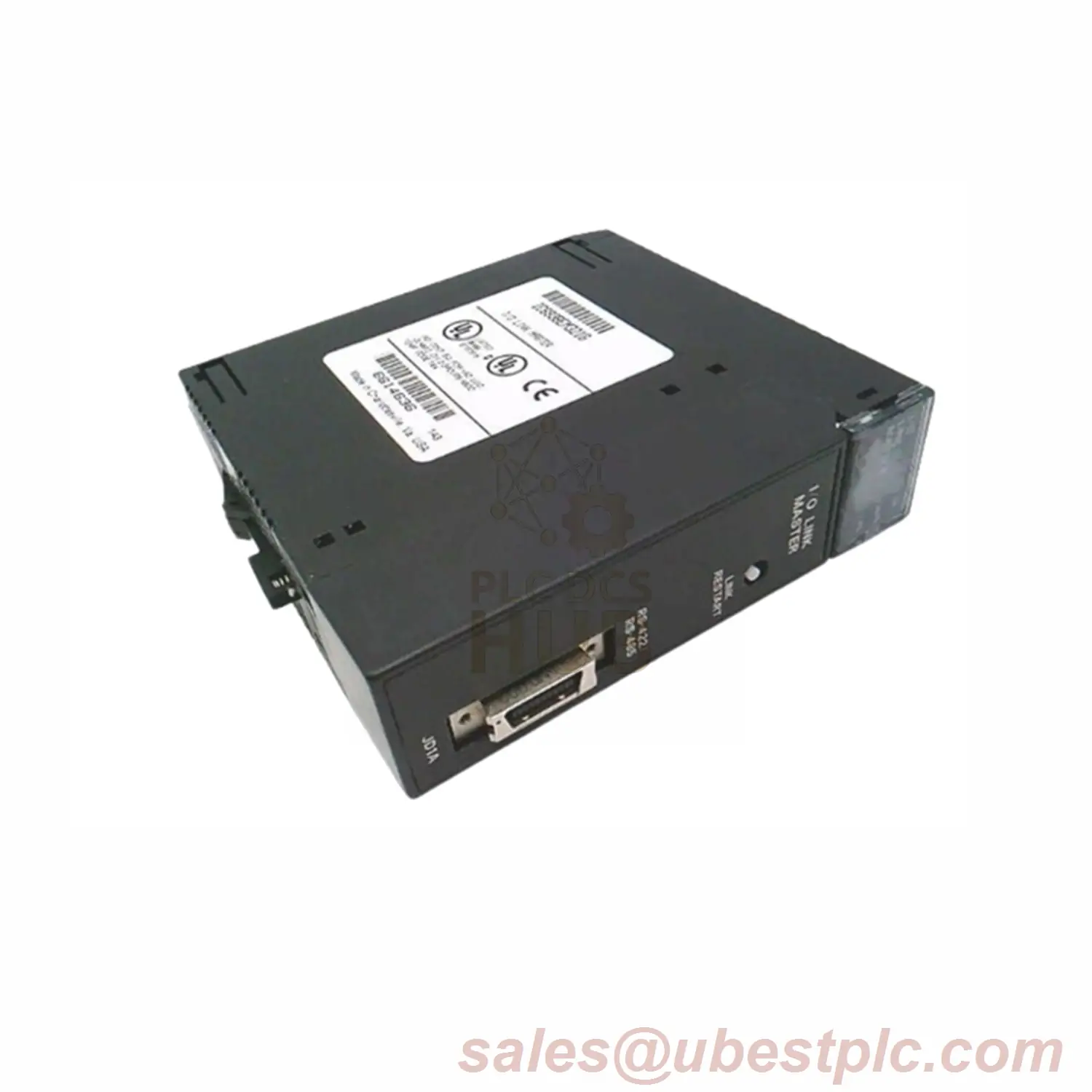

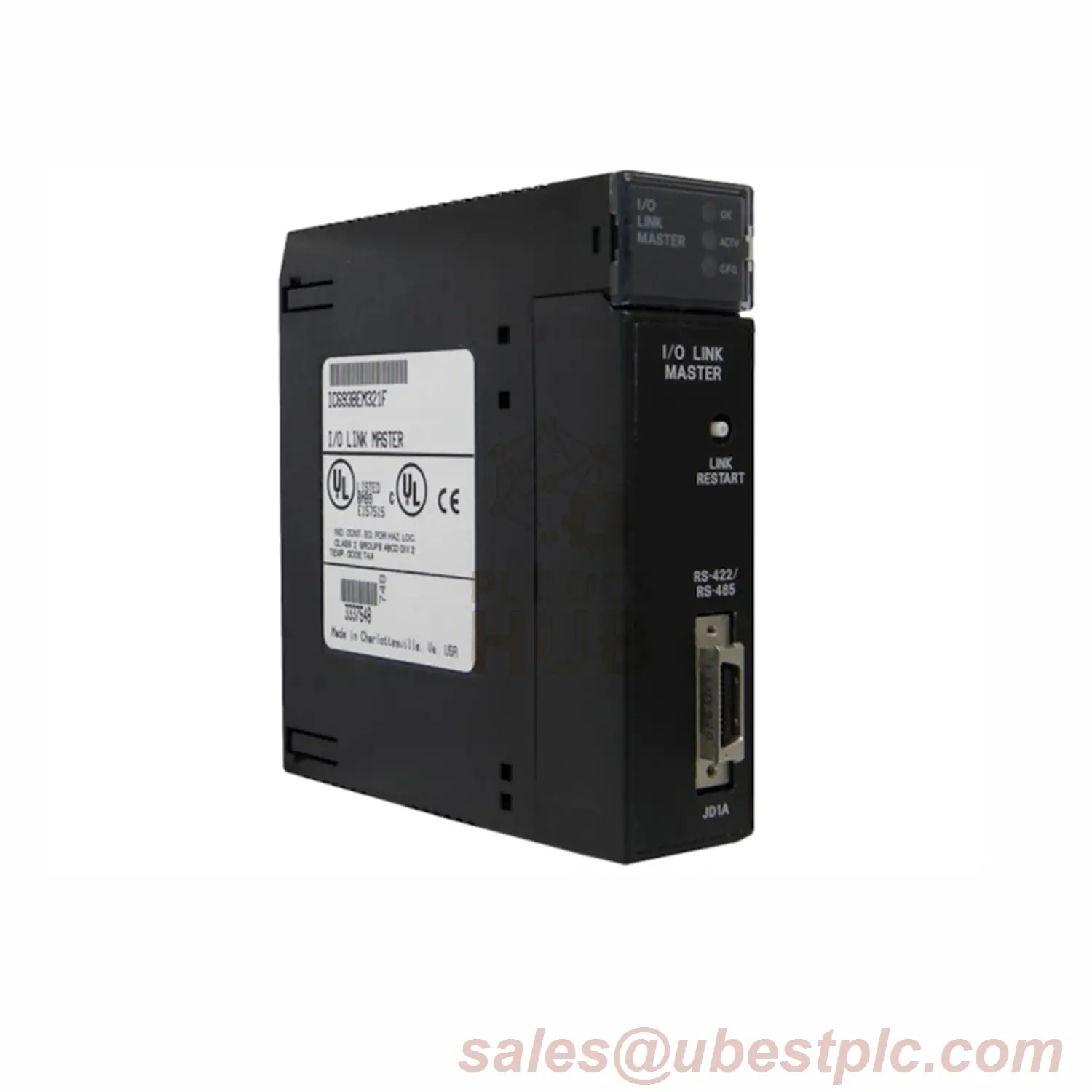

IC693BEM321 I/O Link Master: High-Density PLC Control Module
Core Functionality
Connect 16 slave modules to GE Fanuc Series 90-30/90-70 PLCs with this I/O Link Master. Manages 1024 digital inputs and 1024 outputs for high-speed industrial automation. Features RS-422/485 communication via 20-pin Honda connector.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693BEM321 (Full Suffix) |
| Series | Series 90-30 |
| I/O Capacity | 1024 Inputs / 1024 Outputs |
| Max Slaves | 16 modules |
| Connector | 20-pin Honda socket |
| Protocols | RS-422, RS-485 |
| Power | 5VDC (baseplate) |
Installation Guide
- Insert into any available slot of 90-30/90-70 baseplate
- Field devices require independent power supply
- Press reset button to clear system faults
- Max 6 master modules per baseplate
Compatibility
- PLCs: Series 90-30, Series 90-70
- Configuration Tools: GE Fanuc HHP, proprietary software
Package Contents
- 1× IC693BEM321 Master Module
- Installation manual
Warranty & Shipping
- 12-month warranty – Defect-free guarantee
- Global delivery: FedEx, UPS, DHL options
FAQ
Q: How many I/O points per module?
A: 1024 inputs + 1024 outputs – 2048 total points.
Q: Can I use multiple masters?
A: Yes! Install up to 6 modules in one baseplate.
Q: What protocols are supported?
A: RS-422 and RS-485 industrial serial protocols.
Q: Configuration method?
A: GE Fanuc Hand-Held Programmer or proprietary software.
