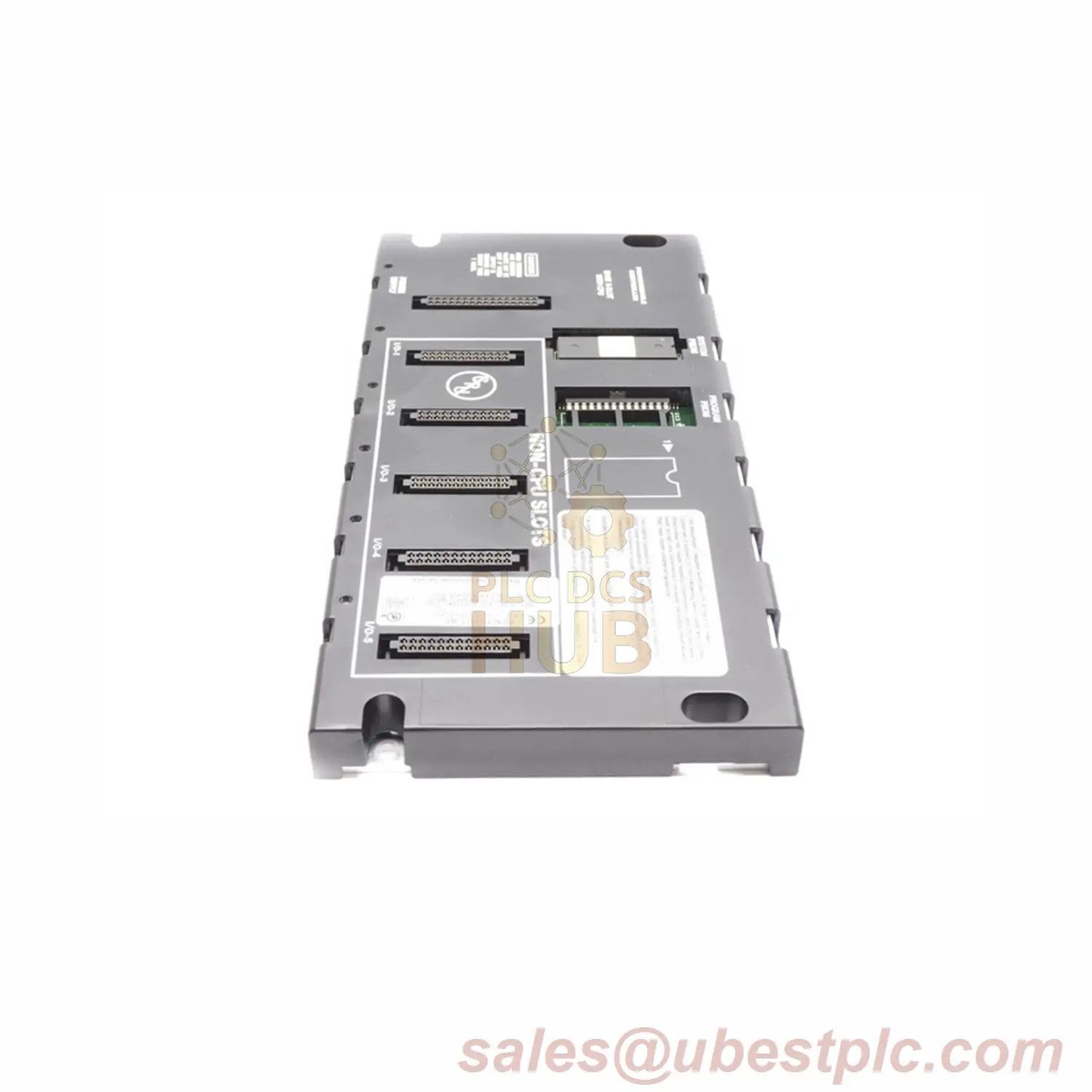

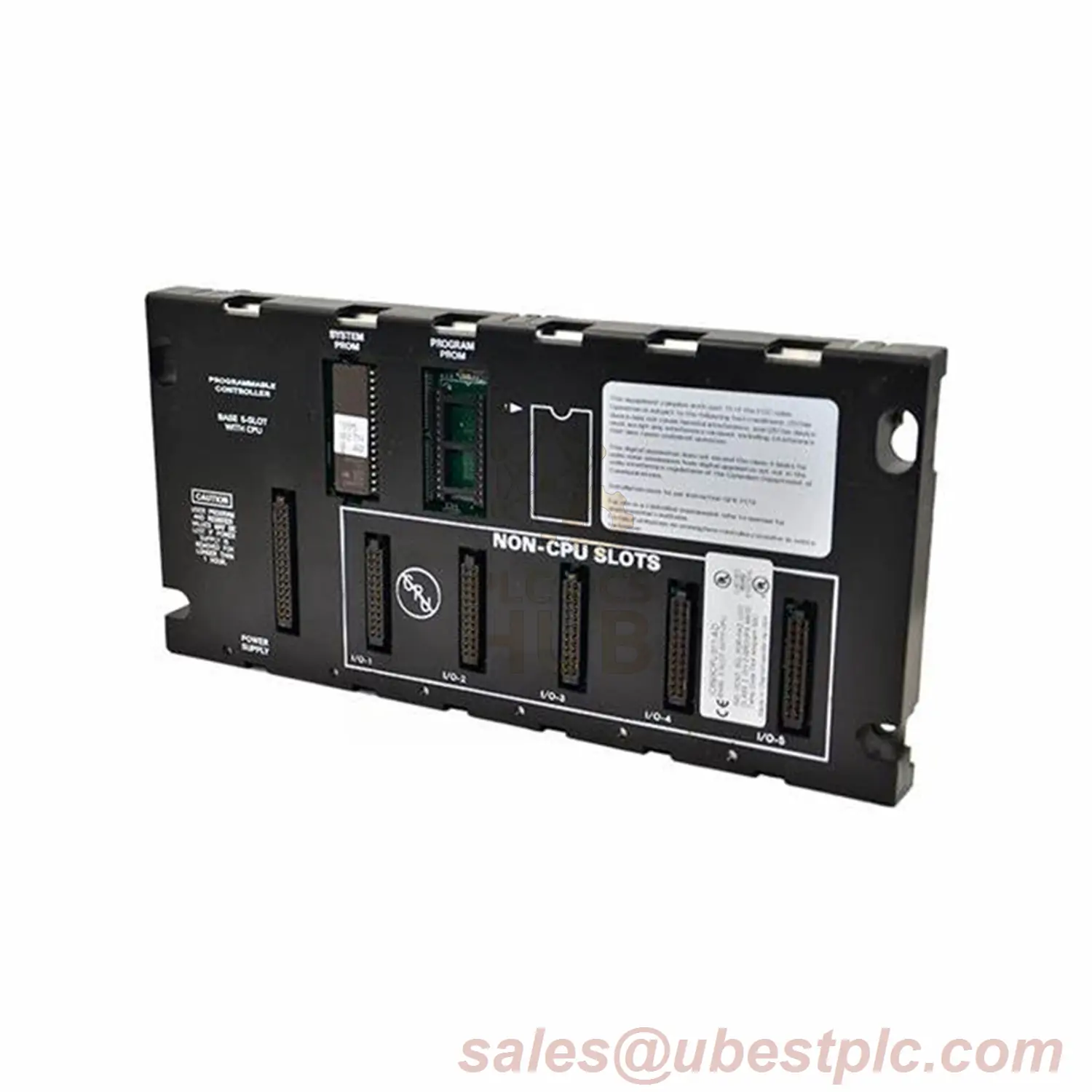

GE Fanuc IC693CPU313 Embedded CPU Baseplate
Integrated 5-slot PLC baseplate with 10MHz turbo CPU for Series 90-30 systems. Features 12KB memory, SNP communication, and capacitor backup. Note: Discontinued product.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693CPU313 |
| Series | 90-30 PLC |
| CPU | 80188 @ 10MHz |
| Memory | 12KB user program |
| Scan Speed | 0.6ms per 1K logic |
| I/O Capacity | 5 slots + power supply slot |
| Discrete Points | 160 inputs / 320 outputs |
| Analog Capacity | 64 input words / 32 output words |
| Communication | 1 serial port (SNP/SNP-X slave) |
| Power Consumption | 410mA @ 5V DC |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
Installation Notes
- Mount in controlled environment
- Connect power supply to dedicated slot
- Install backup battery for RAM
- Maximum 5 I/O modules
Packaging Contents
- IC693CPU313 baseplate unit
- Installation manual
- Shipping: FedEx, UPS, DHL
Frequently Asked Questions
Q: Is expansion possible?
A: No, non-expandable design
Q: Compatible with CCM/PCM modules?
A: No, incompatible
Q: Memory difference pre-Release 7?
A: 6KB vs 12KB post-Release 7
Q: Backup options during power loss?
A: Super capacitor + battery + optional EPROM
