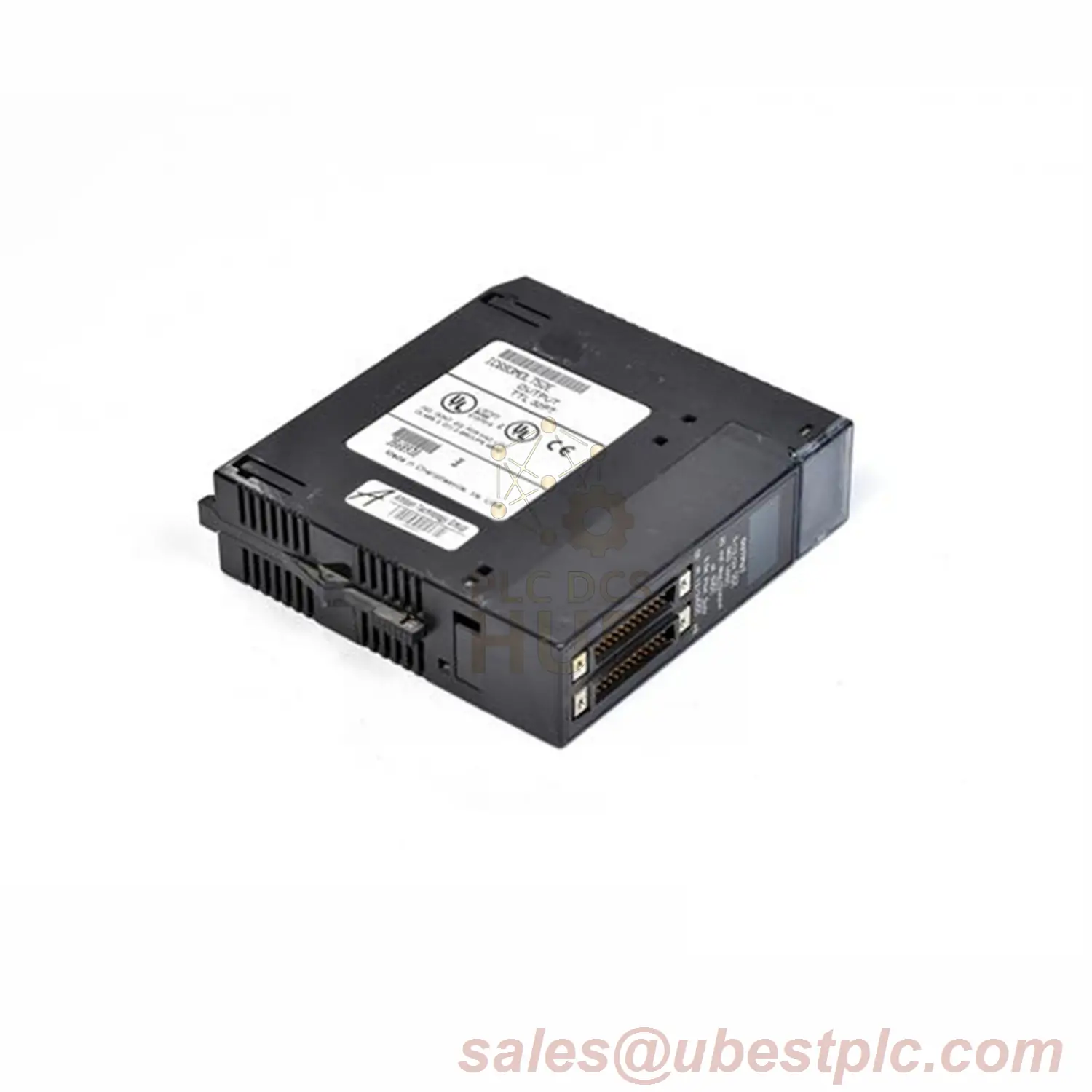

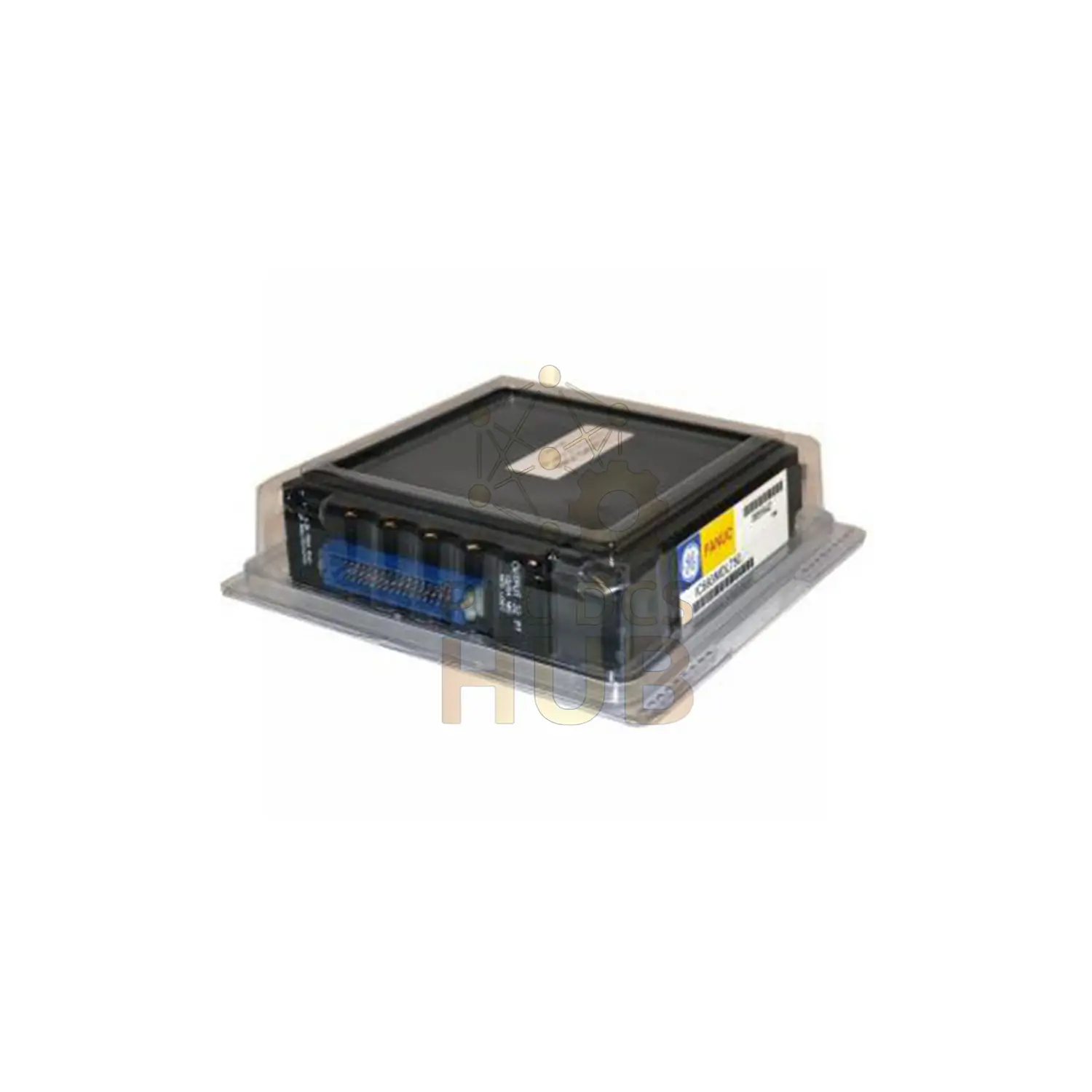

IC693MDL760: Hybrid Digital/Pneumatic Output Module
Core Functionality
Control both electrical and pneumatic systems with one module. Features 5 digital outputs and 11 pneumatic valves for industrial automation.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693MDL760 |
| Digital Outputs | 5 (24VDC sourcing) |
| Pneumatic Outputs | 11 valves |
| Max Pressure | 100 PSI |
| Solenoid Power | 21.6-26.4VDC external |
| Response Time | 12ms on/off |
| Current Draw | 75mA @5VDC (backplane) |
Pneumatic Performance
- 3-way solenoid valves integrated
- Inrush current: 33mA per valve
- Holding current: 13mA per valve
- Continuous operation limits:
- 11 valves @30°C
- 6 valves @40°C
- 4 valves @45°C
Installation Guide
- Front-panel pressure fitting (bottom side)
- External 24VDC power connection required
- Vent output ports when OFF
- Max operating temperature: 45°C
Compatibility
- GE Series 90-30 PLC systems
- Industrial pneumatic actuators
- 24VDC control circuits
Package Contents
- 1x IC693MDL760 module
- Installation manual
Warranty & Shipping
- 12-month reliability warranty
- FedEx, UPS, DHL express delivery
Visual Indicators
- Per-output status LEDs (ON/OFF)
- Solenoid power available indicator
FAQ
Q: How are pneumatic outputs controlled?
A: ON state connects 100PSI air; OFF state vents pressure.
Q: Power requirements for valves?
A: External 21.6-26.4VDC supply (33mA inrush per valve).
Q: Temperature limits for operation?
A: 45°C max (reduced valve capacity at higher temps).
Q: Response time for valve actuation?
A: 12ms maximum for state changes.
