Description

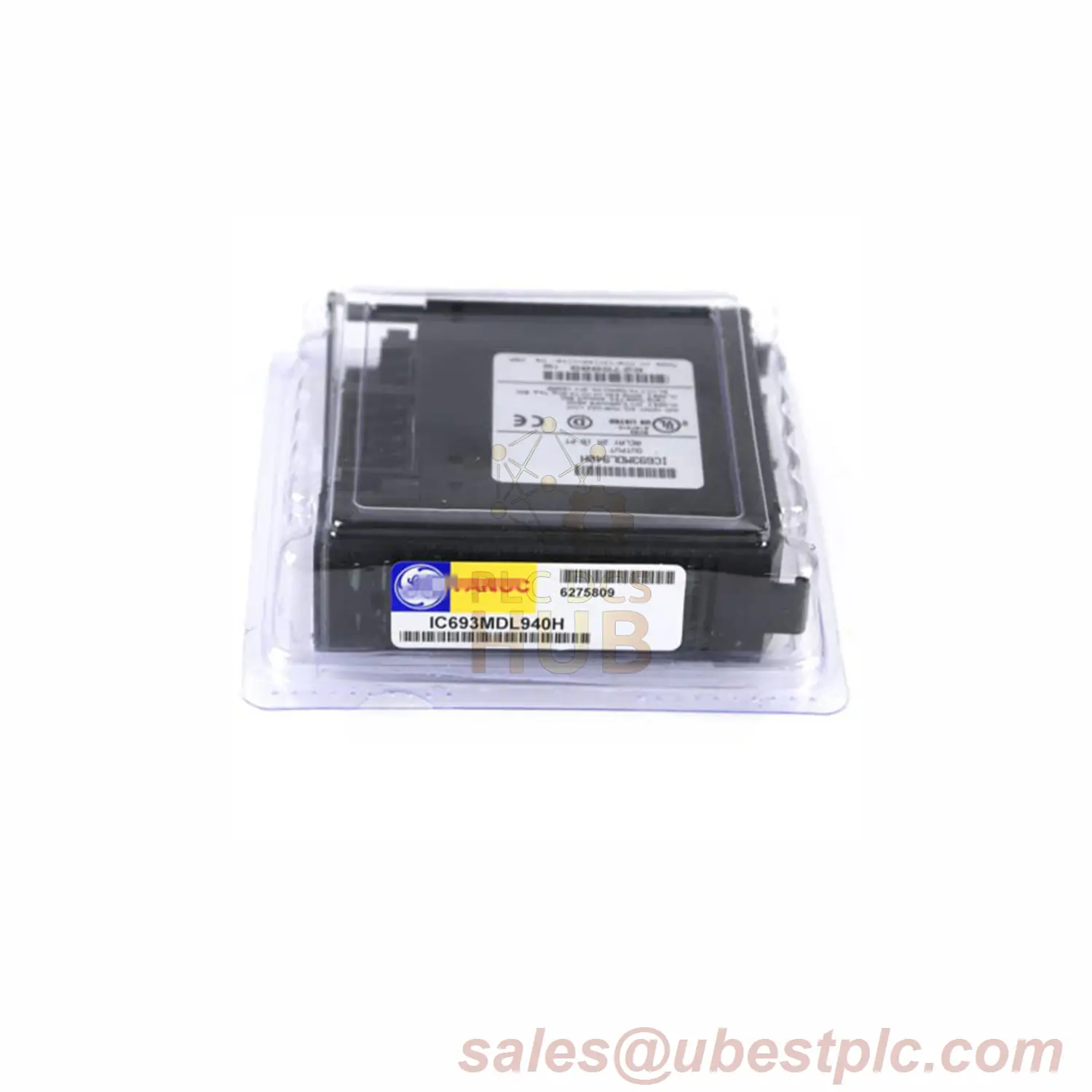

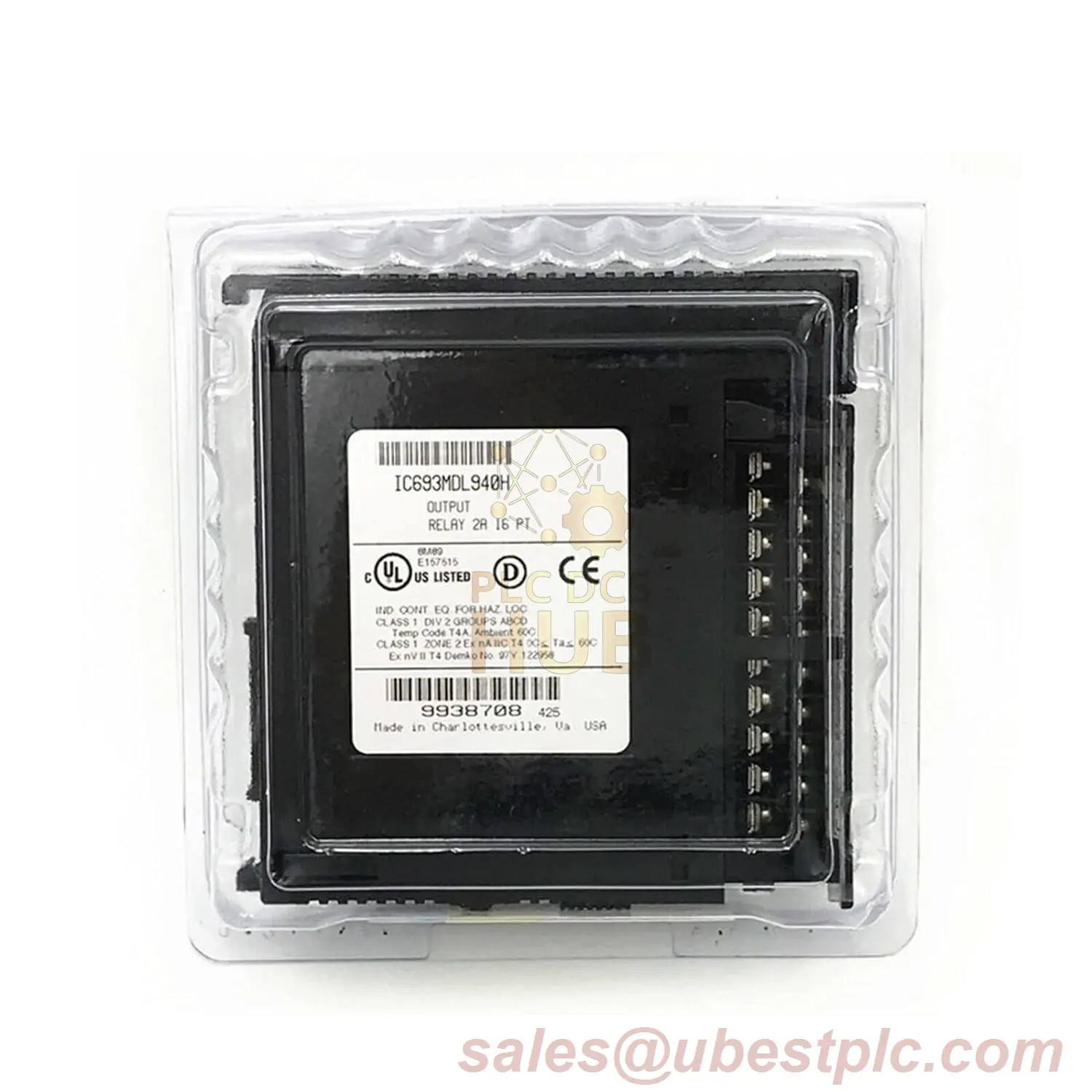

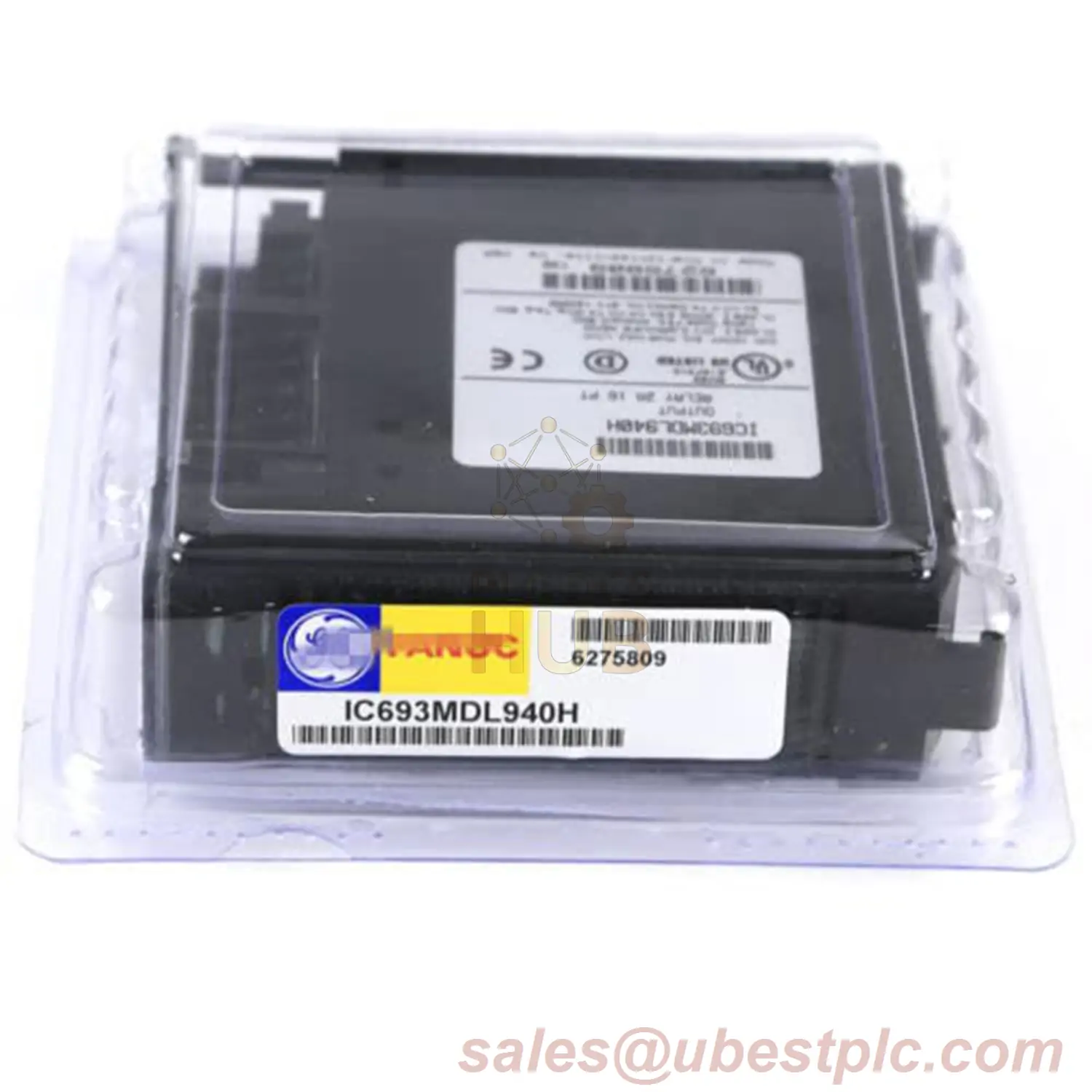

GE Fanuc IC693MDL940 Universal Relay Output Module
16-output industrial relay solution for Series 90-30 PLCs. Handles both AC and DC loads with 4A per common group. Perfect for switching high-power devices.
Core Advantages
- 16 relay outputs in 4 isolated groups
- Dual-voltage operation: 24VDC & 120/240VAC
- High-current handling: 2A per point
- Ultra-fast <15ms switching
- 5A inrush tolerance
Technical Specifications
Manufacturer
GE Fanuc Emerson
GE Fanuc Emerson
Full Model
IC693MDL940
IC693MDL940
AC Voltage
5-250V AC
5-250V AC
DC Voltage
5-30V DC
5-30V DC
Output Current
2A/point (4A/group)
2A/point (4A/group)
Response Time
<15ms
<15ms
Inrush Current
5A max
5A max
Min Load
10mA
10mA
Installation Guide
- Mount in Series 90-30 rack
- Connect power (AC/DC)
- Wire devices to output groups
- Verify group isolation
- Test relay operation
Compatibility
- All Series 90-30 PLC systems
- 5-slot and 10-slot racks
- AC motors & DC solenoids
- Industrial contactors
Package & Support
- Includes relay module
- Installation documentation
- 12-month performance warranty
- Global shipping: FedEx, UPS, DHL
Technical Questions
Q: How are outputs grouped?
A: 4 isolated groups of 4 outputs
Q: Can I mix AC and DC loads?
A: Yes, but not within same group
Q: Maximum switching frequency?
A: 10 operations/second at full load
Q: Relay contact material?
A: Silver alloy for 100,000+ cycles
Q: Surge protection?
A: Built-in spark suppression
