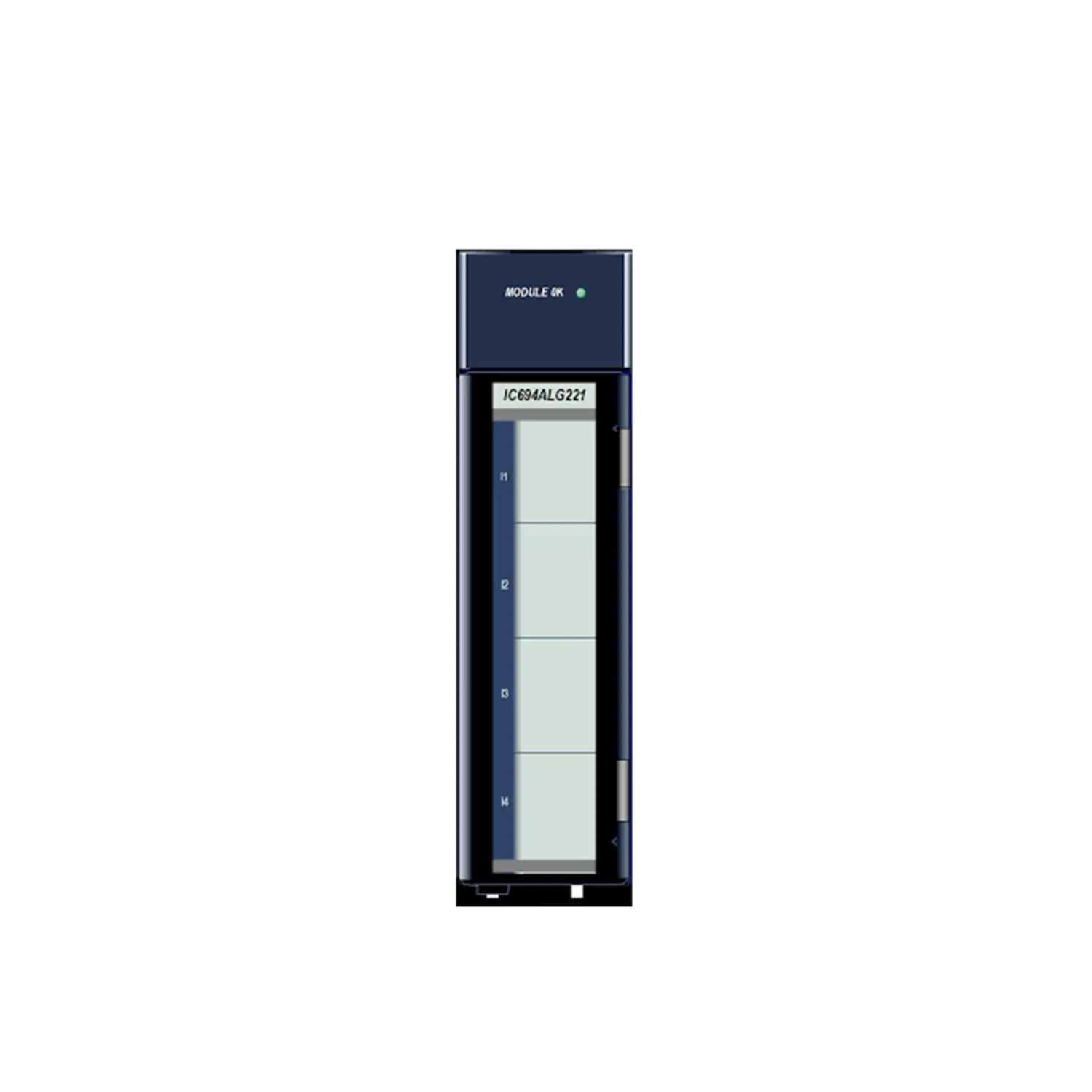

IC694ALG221 GE Fanuc Analog Input Module PACSystems RX3i

4-Channel Analog Input Module

The IC694ALG221 by Emerson Automation (ex-GE) captures 4 analog signals with 0.1% precision. Built for industrial monitoring and control systems.

Key Features

• ✅ 4 Inputs (0-20mA / 4-20mA)
• ✅ Ultra-Fast: 2ms update per channel
• ✅ High Accuracy: ±0.1% error
• ✅ Factory-Calibrated – ready to use
• ✅ 12-month warranty

Technical Specs

• Brand: Emerson
• Model: IC694ALG221
• Resolution: 4µA (4-20mA) / 5µA (0-20mA)
• Speed: 2ms per channel
• Power: 5V (25mA) / 24V (100mA)
• Isolation: 250V AC (continuous)
• Shipping: FedEx, UPS, DHL

Setup Guide

1. Power off the RX3i system.
2. Install in any I/O slot.
3. Connect sensors via terminal block.

Ideal For

• Pressure
• Process control systems
• Real-time monitoring

Real-World Example

A chemical plant used IC694ALG221 to monitor reactor temps, achieving 99.9% control accuracy.

FAQ

Q: Can I hot-swap this module?
No – always power off first.

Q: Max current per channel?
20mA (supports 4-20mA or 0-20mA).
