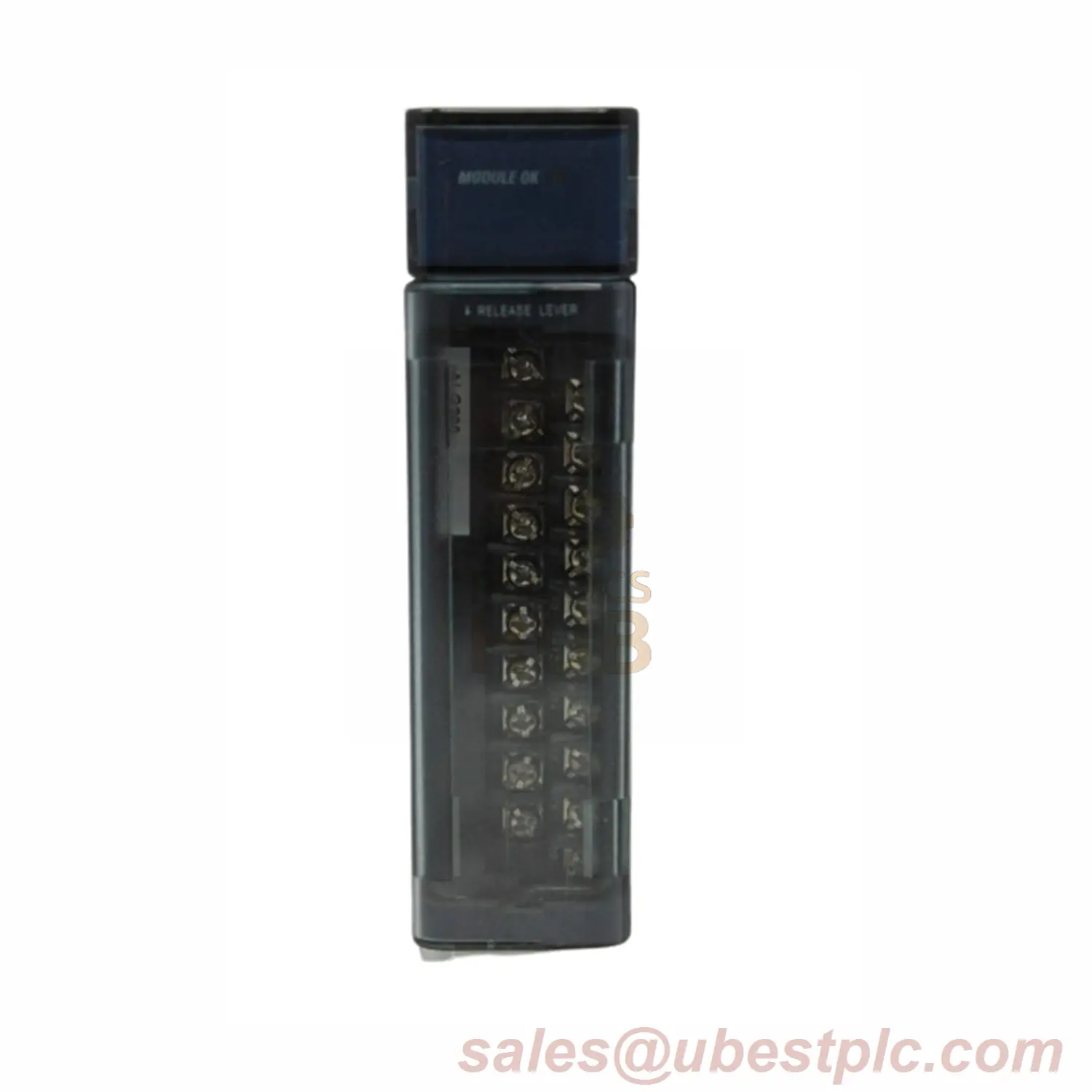

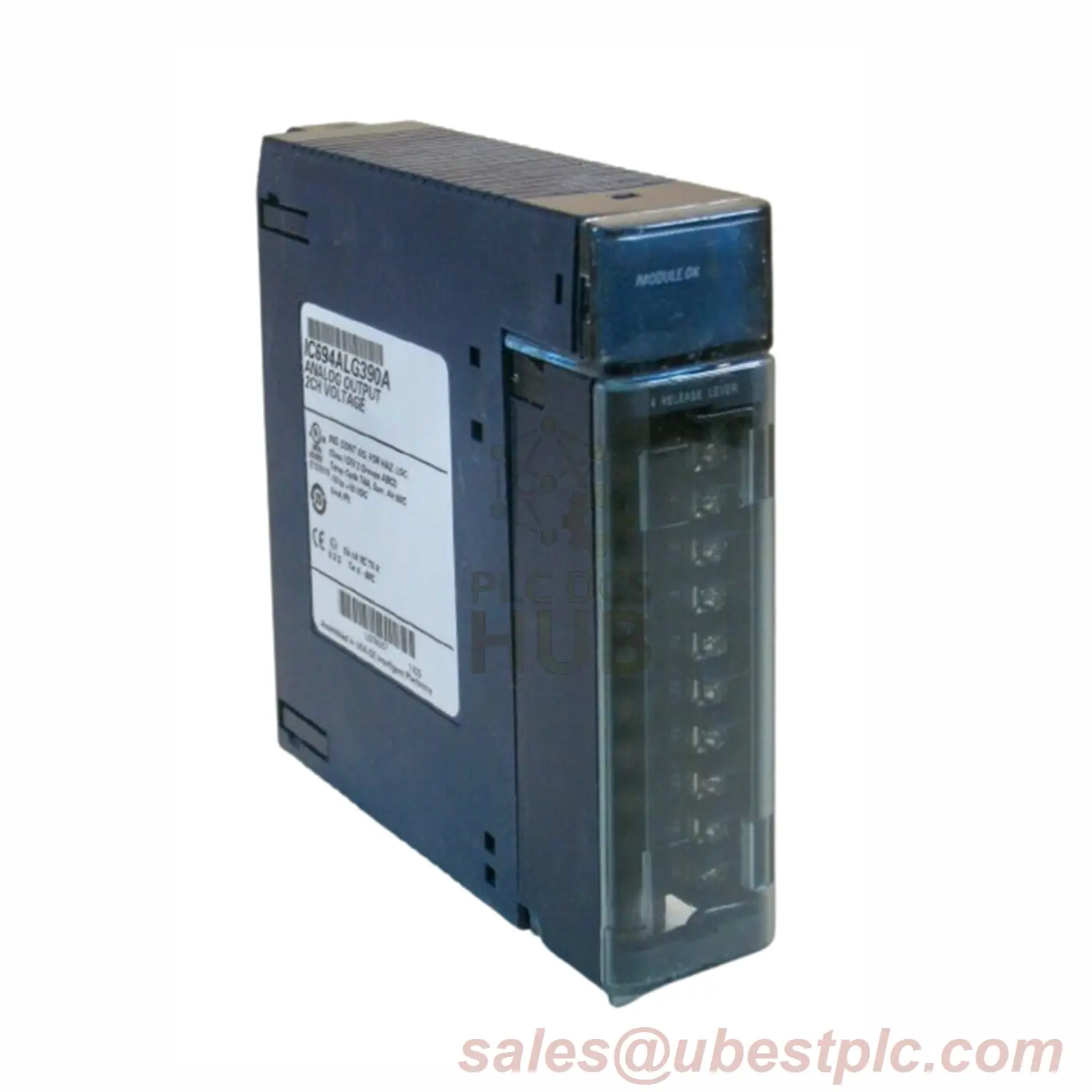

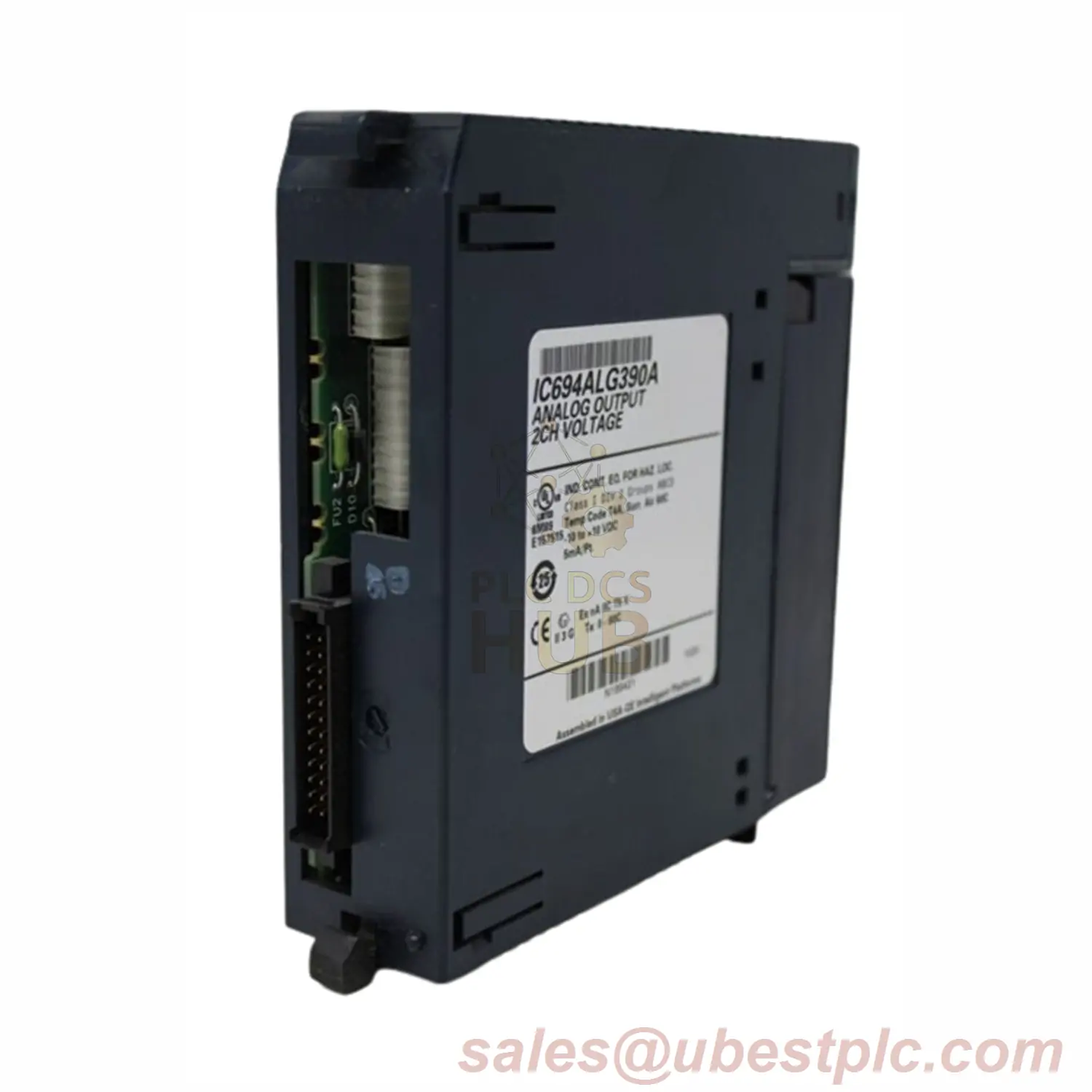

IC694ALG390 GE PACSystems RX3i Analog Output Module

IC694ALG390 – Dual-Channel Analog Output Module

Drive -10V to +10V signals with the GE Fanuc IC694ALG390. Perfect for precise control in RX3i systems.

Key Features

• ✅ 2 Output Channels – 13-bit precision
• ✅ Wide Voltage Range – -10V to +10V
• ✅ RX3i & 90-30 Compatible – Flexible integration
• ✅ Low Power Use – 32mA @5V / 120mA @24V
• ✅ 12-month warranty + global shipping

Technical Specs

• Brand: GE Fanuc
• Model: IC694ALG390
• Outputs: 2 channels (analog)
• Voltage: -10V to +10V (±0.5% accuracy)
• Backplanes: RX3i Serial / 90-30 Expansion
• Shipping: FedEx, UPS, DHL

Installation Guide

1. Power off the system completely.
2. Insert module into any available I/O slot.
3. Connect field devices to output channels.

Ideal For

• Controlling valves, actuators, or motors
• Industrial automation systems
• Precision signal generation

Safety Note

⚠️ Do NOT hot-swap – Always power off before installing/removing.

FAQ

Q: Can I use this with old 90-30 systems?
Yes – works with RX3i and 90-30 expansion backplanes.

Q: Update rate?
Outputs refresh every system scan cycle.
