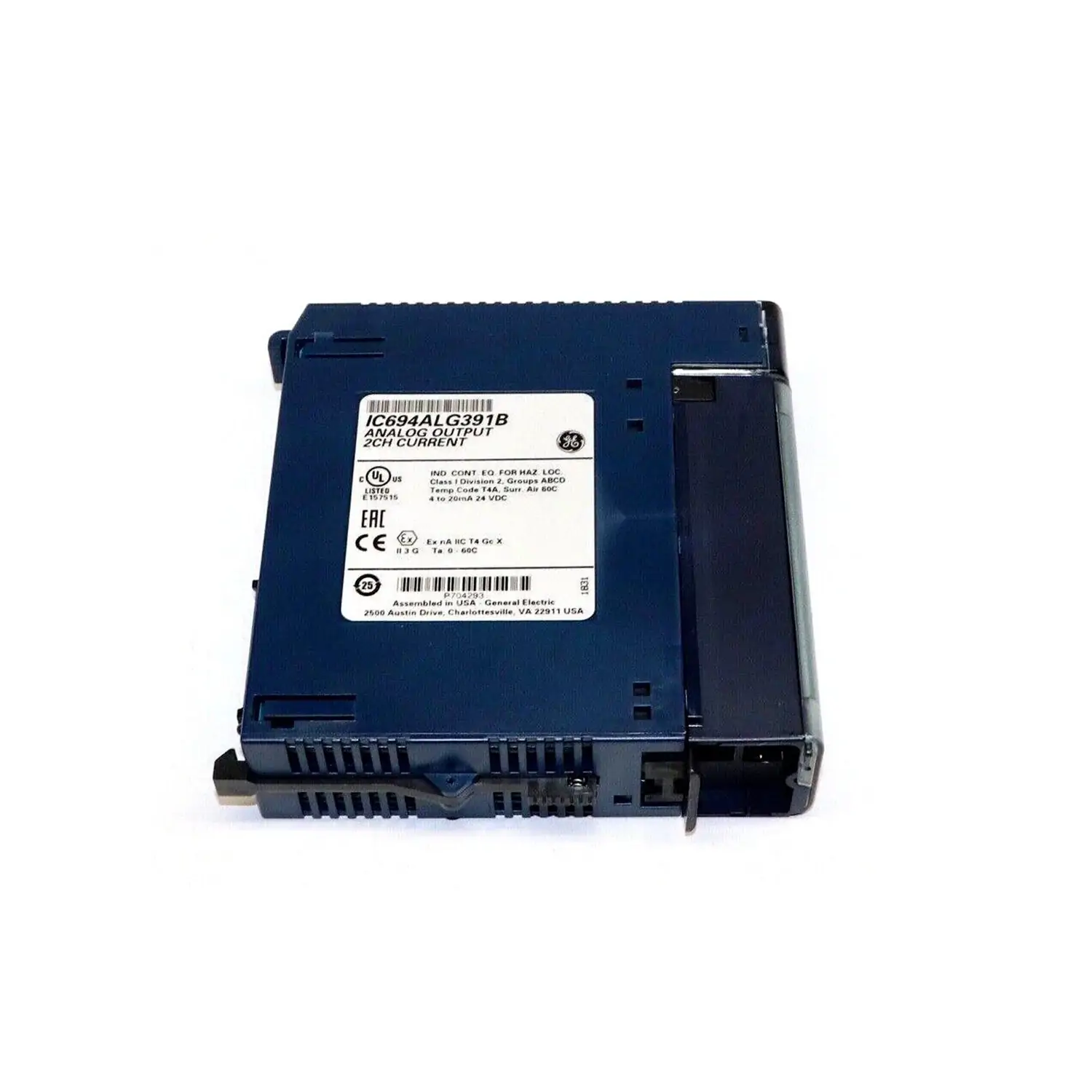

IC694ALG391 Output Module GE Fanuc PACSystems RX3i

Dual-Channel Analog Output Module

Control 0-20mA/4-20mA devices with the GE Fanuc IC694ALG391. 12-bit precision for industrial automation.

Key Features

• ✅ 2 Output Channels – 0-20mA or 4-20mA
• ✅ 12-Bit Precision – Smooth signal conversion
• ✅ RX3i & 90-30 Compatible – Legacy system support
• ✅ Status LED – Instant module health check
• ✅ 12-month warranty + global shipping

Technical Specs

• Brand: GE Fanuc
• Model: IC694ALG391
• Output Range: 0-20mA / 4-20mA (jumper-selectable)
• Power Handling: 30mA @5V / 215mA @24V
• Backplanes: RX3i Serial / 90-30 Expansion
• Shipping: FedEx, UPS, DHL

Setup Steps

1. Power off the PLC system.
2. Install module in any I/O slot.
3. Set jumpers for desired current range (0-20mA or 4-20mA).

Ideal For

• Process control systems
• PLC-driven actuator/sensor networks
• Legacy 90-30 system upgrades

Safety Alert

⚠️ Never hot-swap! Always disconnect power before installation/removal.

FAQ

Q: How to check if it’s working?
Green “Module OK” LED lights up when powered.

Q: Warranty details?
12 months coverage – defects in materials/workmanship.
