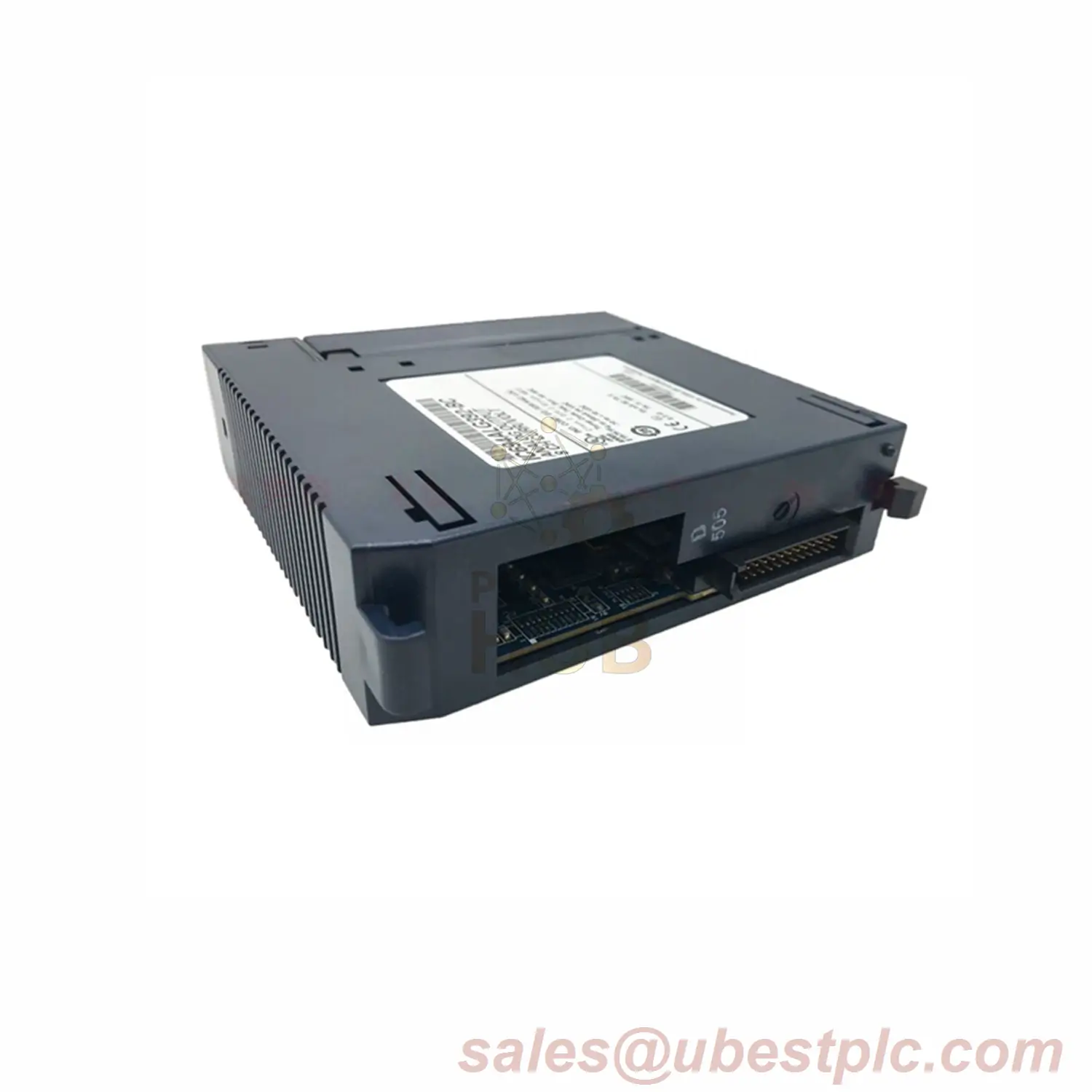

IC694ALG392 GE Fanuc | PACSystems RX3i Analog Output Module

8-Channel Analog Output Module

Control valves, motors, and sensors with the GE Fanuc IC694ALG392. Delivers 0-10V, ±10V, 0-20mA, or 4-20mA signals with 16-bit precision.

Key Features

• ✅ 8 Output Channels – Voltage or current mode
• ✅ Ultra-Fast – Updates every 8ms
• ✅ Open-Wire Detection – Prevents system failures
• ✅ Safety Lock – Holds last value during power loss
• ✅ 12-month warranty + global shipping

Technical Specs

• Part No.: IC694ALG392
• Outputs: 0-10V / ±10V / 0-20mA / 4-20mA
• Resolution: Up to 16-bit (0.3125mV/0.5µA)
• Power: 24V External (20-30V) or 5V Backplane
• Compatibility: RX3i, 90-30, 90-70 PLCs
• Shipping: FedEx, UPS, DHL

Setup Guide

1. Power off the system before installation.
2. Connect to any RX3i/90-30/90-70 PLC slot.
3. Configure outputs via software (voltage/current).

Ideal For

• PID control loops (automatic/manual)
• Process data loggers & isolators
• Industrial actuators & agitators

Safety & Notes

• ⚠️ No hot-swapping – Always disconnect power first.
• ⚠️ Protect from moisture/extreme temps – Low IP rating.

FAQ

Q: Can it reset outputs on power loss?
Yes – holds last value or resets to zero (user-configurable).

Q: Warranty details?
Covers defects in materials/workmanship for 12 months.
