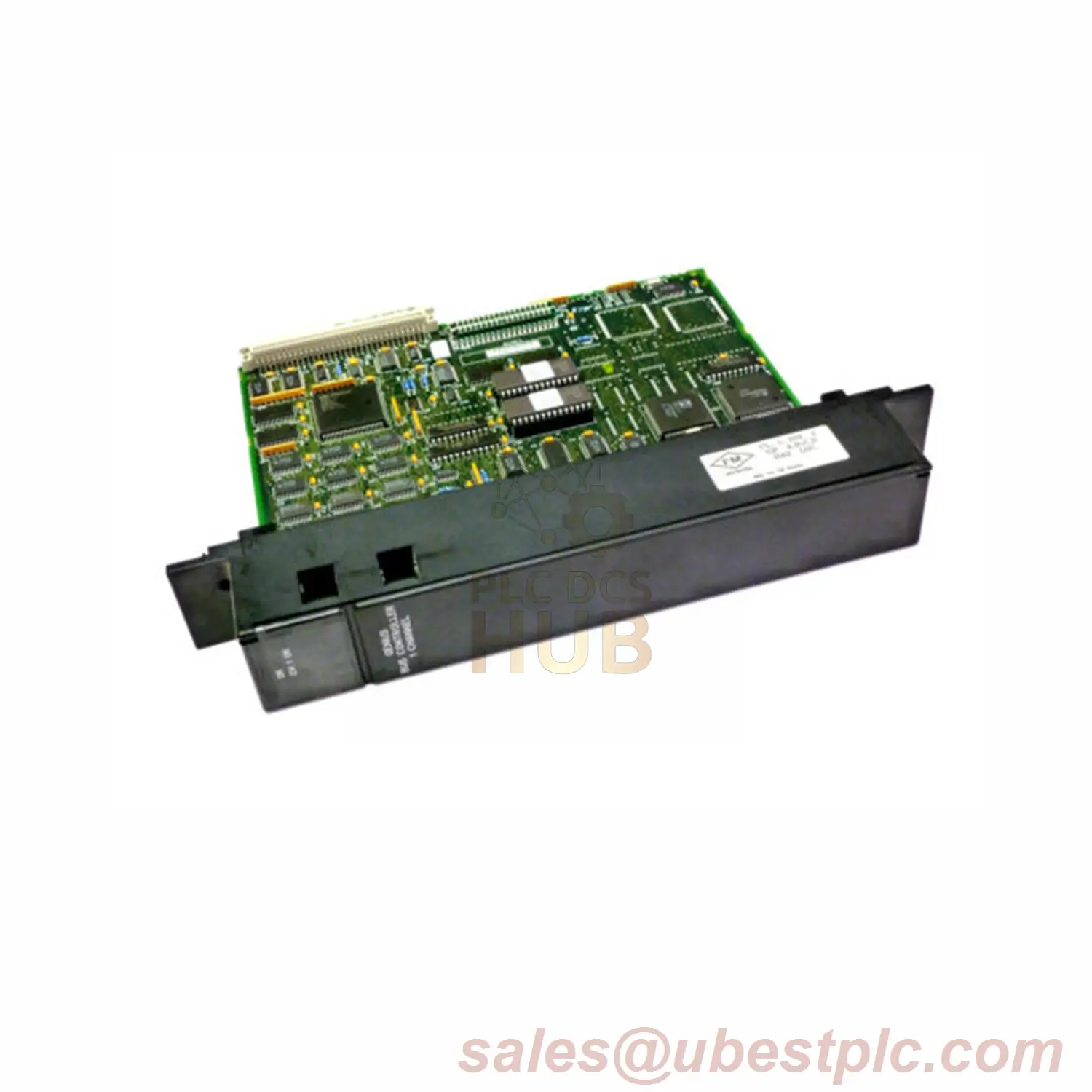

GE Fanuc IC697BEM734 Bus Controller
Essential communication hub for Series 90-70 PLCs. This single-slot module manages IC66 Bus data transfers between PLC CPUs and field devices. Features configurable baud rates, peer-to-peer communication, and real-time diagnostics.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC697BEM734 |
| Series | 90-70 PLC |
| Type | IC66 Bus Controller |
| Voltage | 5V DC |
| Current Draw | 1.3A (backplane) |
| Ports | PL1 (monitor), PL3 (Bus field) |
| LED Indicators | 3 status lights |
| Default Baud Rate | 153.6K |
| Weight | 5.0 lbs |
Installation Steps
- Insert into single slot on IC66 rack
- Connect PL1 to monitoring tools
- Link PL3 to Bus field devices
- Verify backplane power stability (5V±5%)
Packaging Contents
- IC697BEM734 module (1 unit)
- Installation documentation
- Shipping: FedEx, UPS, DHL available
Frequently Asked Questions
Q: Compatible with newer Windows OS?
A: Requires MS-DOS emulation for configuration
Q: Maximum device connections?
A: Limited by IC66 Bus specifications
Q: Redundancy support?
A: Through PLC-level backup systems
