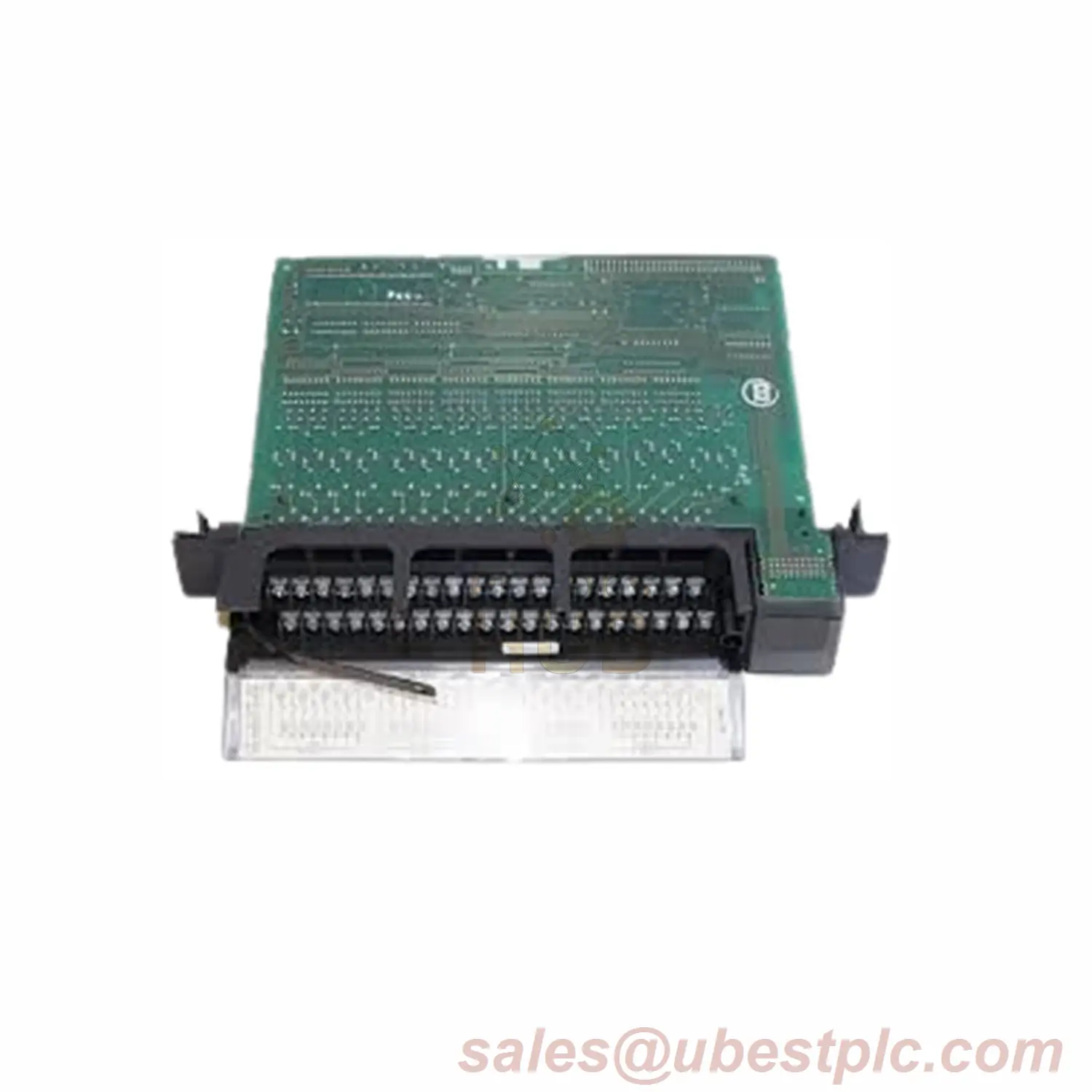

GE Fanuc IC697MDL654: 32-Channel Dual-Logic Input Module for Precision Control
Quick Overview
GE Fanuc IC697MDL654 delivers 32 DC inputs with ±48V tolerance (-3V to 56V range). Built for Series 90-70 PLCs, it supports positive/negative logic and works with 2/3-wire sensors. Features 1500V isolation, low 4.7mA current draw, and compact rack design.
Key Specs at a Glance
- Brand/Model: GE Fanuc IC697MDL654-XX
- Input Voltage: -3V to 56V DC
- On-State Range: 33-56V DC | 3-8mA
- Off-State Range: 0-10V DC | 0-2mA
- Isolation: 1500V AC
- Backplane Power: 0.3A @5V DC
Setup Made Simple
• Mount in Series 90-70 rack (VME compatible)
• Use 0.36–2.10mm² wires via terminal board
• Allow 50mm clearance for airflow
Works With
- 2-wire/3-wire proximity switches
- Industrial sensors (PNP/NPN)
- GE 90-70 PLC systems
Reliability Assured
- Certified: CE, UL, RoHS
- Warranty: 1 year
- Shipping: FedEx/DHL/UPS (2-4 days)
- Package: Module, manual, warranty docs
Real-World Uses
Automotive Assembly: Monitors 32 safety door sensors.
Power Plants: Reads valve position feedback signals.
Top Questions
Q: Negative voltage handling?
A: Yes! Accepts -3V to 56V inputs.
Q: Sensor compatibility?
A: Works with 2/3-wire (3mA@5V drop).
Q: Overload protection?
A: 1500V isolation prevents damage.
