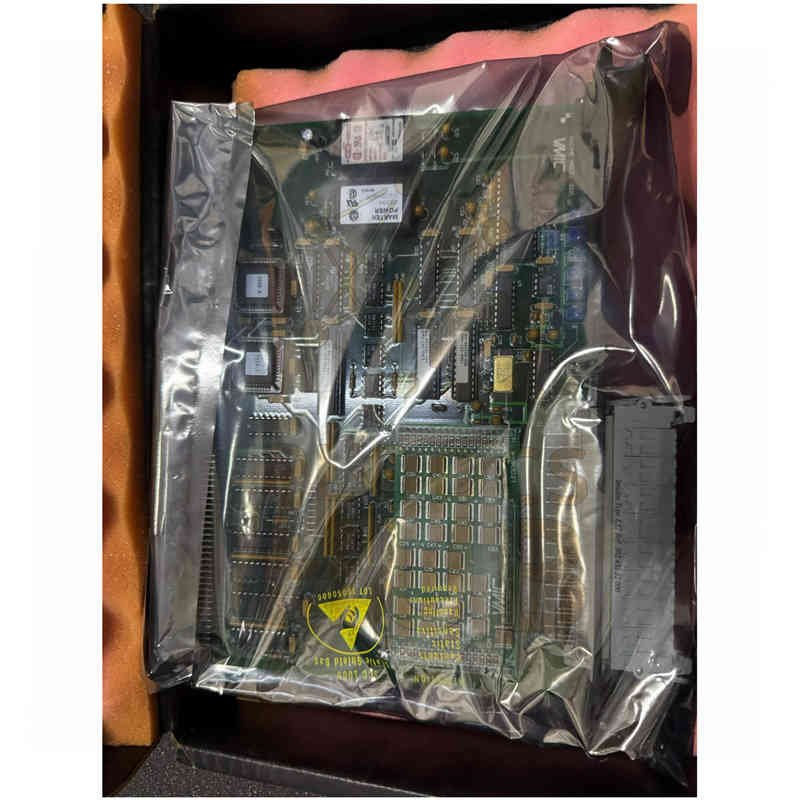

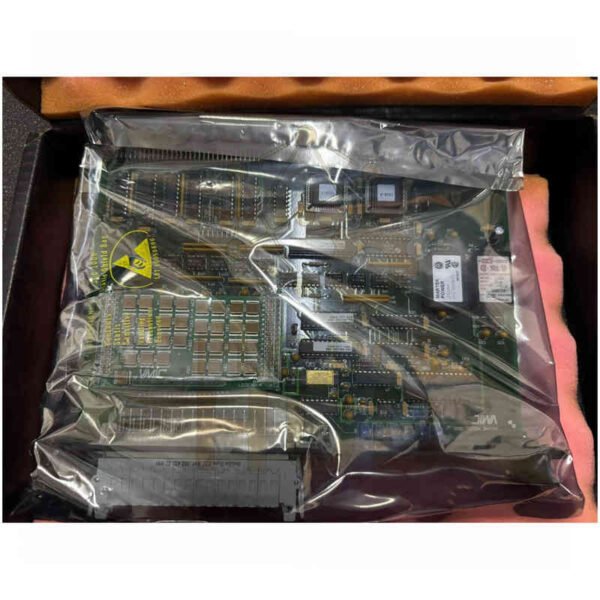

GE IC697VAL134 Series 90-70 ADC Converter Board
The GE IC697VAL134 board gives fast and clean conversion for many analog sources. It reads many channels, scans at high speed, and keeps signals safe.
Key Specs
- Brand: GE Fanuc Emerson
- Series: 90-70
- Model: IC697VAL134
- Type: Analog to digital converter board
- Weight: 3.00 lbs (1.36 kg)
- ADC resolution: 12 bits
- Input count: 31 single-ended channels
- Scan rate: 40 kHz total
- Input span: 50 mV to 10 VDC
- Isolation: 1000 VDC
- Cables: discrete wire type
- Front LED for fast status check
- Uses 128 bytes of VMEbus I/O space
Performance Highlights
- Fast scan helps reduce delay in control tasks
- Wide input span fits many field sensors
- Strong isolation gives safe operation
- Factory filters smooth low-level signals
- Works with many GE 90-70 systems
Extra Technical Notes
- Board ID register gives clear map data
- BIT voltage reference keeps value stable
- Auto channel switch for smooth reads
- Input guard protects against high voltage
- Needs power off before install for safety
Usage Benefits
- Starts scanning without software load
- Easy wiring with simple cable paths
- Simple layout helps fast service
- Good for test stands and field units
- Stable run for long duty cycles
Warranty and Shipping
- 12-month warranty
- Ships via FedEx, UPS, DHL
- Safe packing for worldwide delivery
FAQ
How do I check if the board reads all channels?
Read the LED and scan data from the host; missing channels show unusual steps.
Can I mix low-level and high-level inputs?
Yes, but keep cable runs short to avoid noise on small mV lines.
Does the 40 kHz scan rate change under load?
It stays stable in most cases unless the host system delays the bus.
When should calibration be done?
Users often calibrate after long storage or when readings drift.
How can I prevent noise on long analog wires?
Use shielded cable and ground one side to keep the board stable.
