ICS Triplex T8231 Power Pack – 750W 24Vdc T8231 Trusted Series

Description

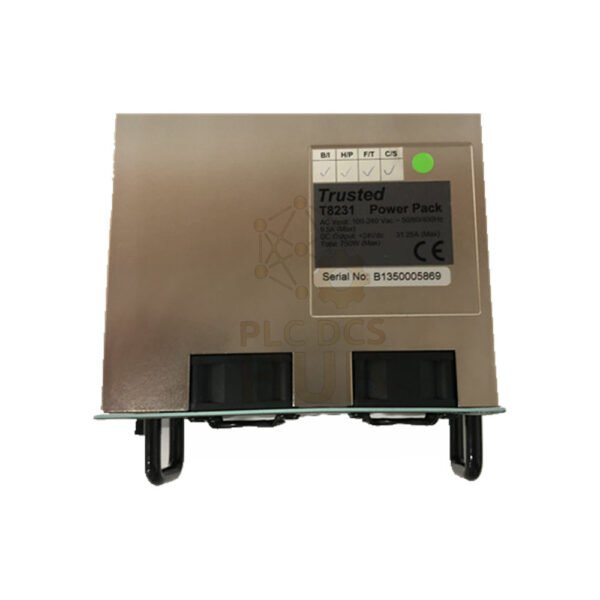

ICS Triplex T8231 Power Pack – 750W 24Vdc for Trusted Systems

• Manufacturer: ICS Triplex (Schneider Electric)
• Model Number: T8231
• Product Type: Power Pack (750W, 24Vdc)
• Family / Series: Trusted TMR System Power Supply
• Weight: 2.7 kg (same for T8232 model)

Power Shelf Dimensions (for T8231 / T8232)

• Height: 43 mm (1.71 inches)
  • Fits standard 1U rack space
• Width: 483 mm (19 inches)
  • Standard rack-mount width
• Depth: 340 mm (13.36 inches)
  • Compact depth for control cabinets

Key Electrical Data

• Output Power: 750 Watts (continuous)
• Output Voltage: 24 Vdc (nominal)
• Compatibility: Trusted TMR Controller Chassis
• Cooling: Convection (no fan noise)
• Efficiency: >85% typical

Installation at a Glance

• Slide power pack into designated shelf slot.
• Secure with front panel screws.
• Connect 24Vdc output to Trusted backplane.
• Use 2.5 mm² wire for main DC output.
• Power up after all connections are tight.

Maintenance & Troubleshooting

• Check green LED: ON means output normal.
• No output? Reset system circuit breaker.
• Keep vents clean every 6 months.
• Use a voltmeter to verify 24Vdc at terminals.
• Hot-swap not allowed – always power off before removal.

Compatibility Information

• Works with Trusted TMR Chassis T8100 series.
• Replaces older T8230 and T8232 in same shelf.
• Supports dual or single power pack configurations.
• Use with ICS Triplex processor modules (T8110B, T8111).

Certifications & Safety

• CE marked – meets EU standards.
• UL Recognized component.
• RoHS compliant (no hazardous substances).
• Designed for ordinary locations (OrdLoc).
• Overload and short circuit protection built-in.

Package Contents & Warranty

• ICS Triplex T8231 Power Pack – 1 unit
• Mounting screws and quick start guide
• 12-month warranty from delivery date (defects only)
• Free email support for first year

Shipping Options

• FedEx – International Priority (2-4 days)
• UPS – Worldwide Saver (tracked & insured)
• DHL – Express Easy (fast customs clearance)
• All orders ship within 24 hours (Mon-Fri)

Common Uses

• Powering Trusted TMR controller chassis
• Safety shutdown systems (SIS)
• Oil & gas, power generation, chemical plants
• Redundant power configurations in critical processes

Diagnostic Features

• LED status: green = OK, red = fault.
• Remote voltage sensing available on backplane.
• Built-in overvoltage protection (OVP).
• Current limit indicator via system diagnostics.

Frequently Asked Questions (FAQ)

• Q1: What is the max output current of T8231?
  At 24Vdc, 750W gives 31.25 Amps (approx). Check load carefully.
• Q2: Can I use T8231 with non-ICS chassis?
  No. It is built only for ICS Triplex Trusted TMR backplane.
• Q3: Does this module support hot swap?
  No. Always power off the chassis before removing or inserting.
• Q4: Is there a redundant power option?
  Yes. Use two T8231 units in same shelf for redundancy.
• Q5: What is the operating temperature range?
  0°C to 55°C (32°F to 131°F). Keep in ventilated cabinet.

Practical Tips & Buying Guide

• Engineer’s advice: Always leave one empty slot beside the power pack for air flow.
• Warranty claim process: Contact us with order number and photos of defect. We send replacement within 7 days.
• Choosing shipping: Use DHL for urgent spares. FedEx economy saves cost if not critical.
• Before buying T8231: Verify your chassis depth – T8231 fits 340mm depth shelves only.
• Alternatives: Need lower power? Check T8232 (same size but different rating).

Get Support or Place Order

• WhatsApp / Call: +86 158 8020 0923 (click to chat)
• Email: sales@plcdcshub.com – mention T8231 for quick quote
• Volume discounts available for 2+ units
