ICS Triplex T8311 Trusted TMR Expander Interface | 20-32Vdc 250Mbps

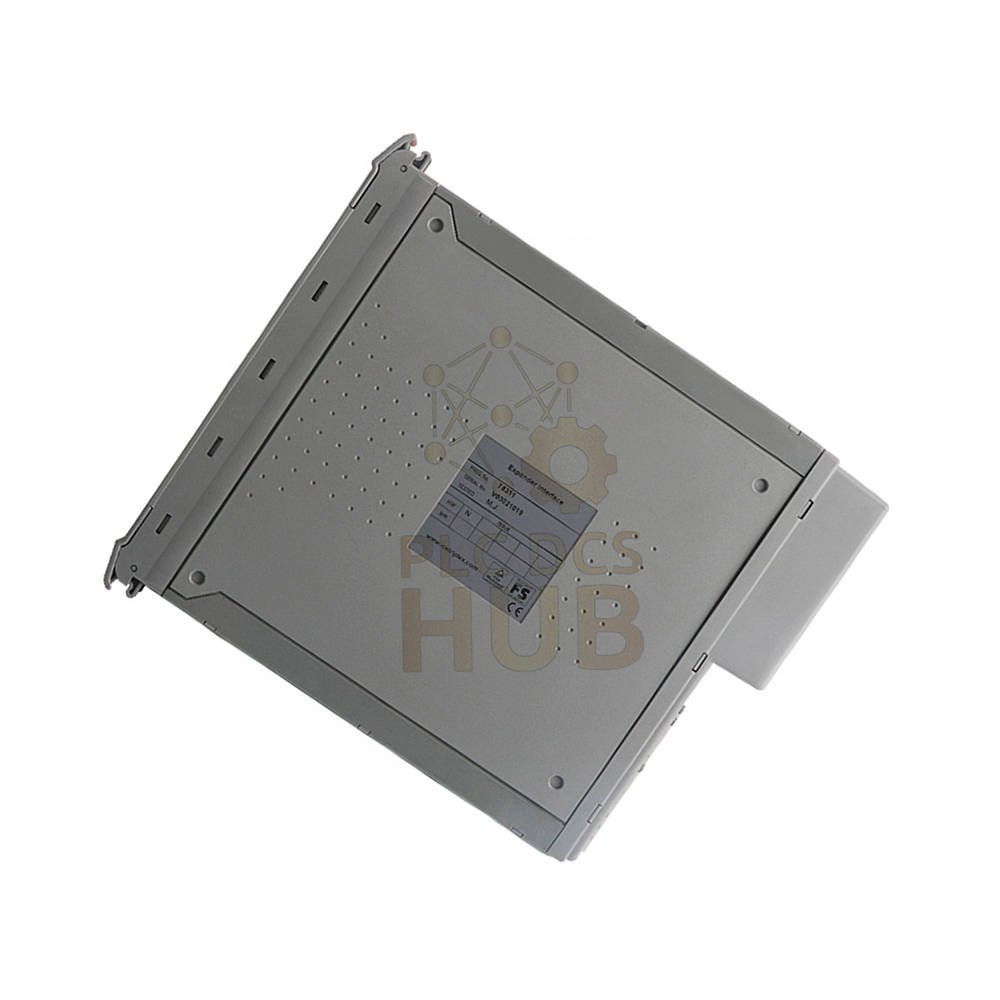

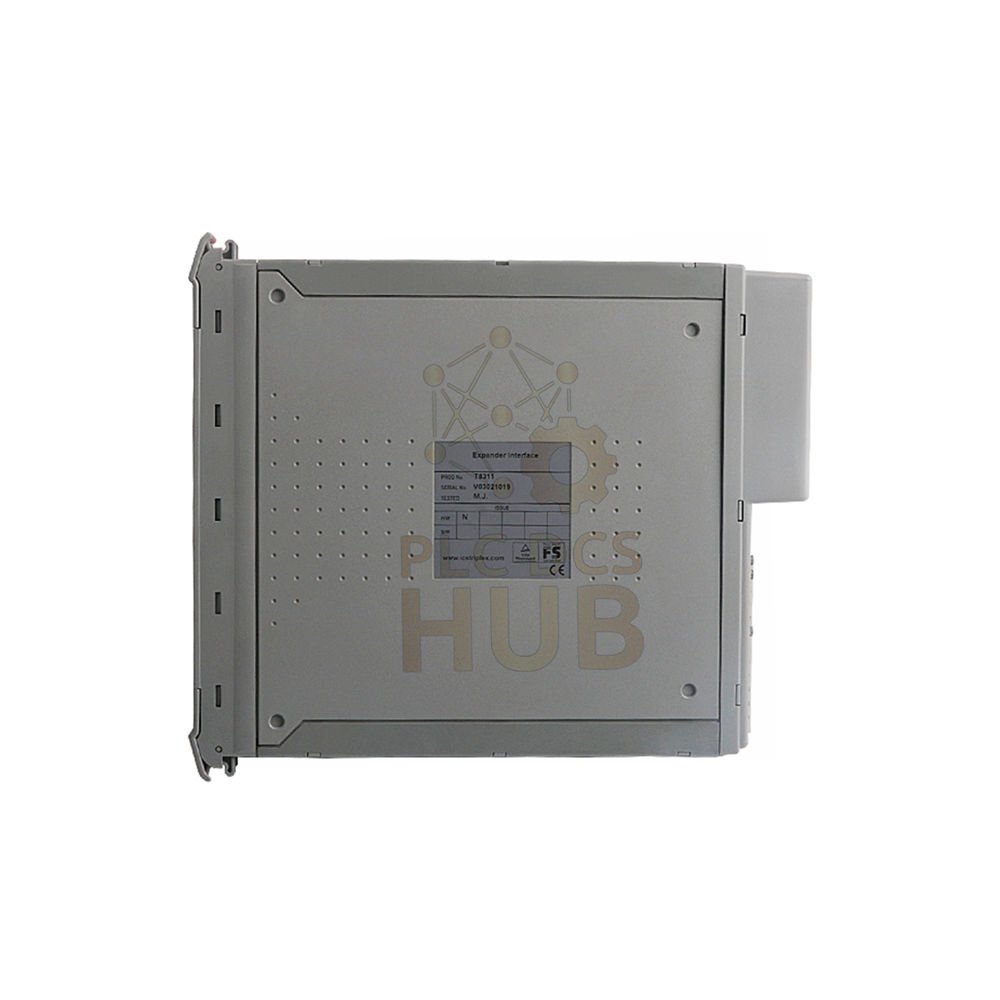

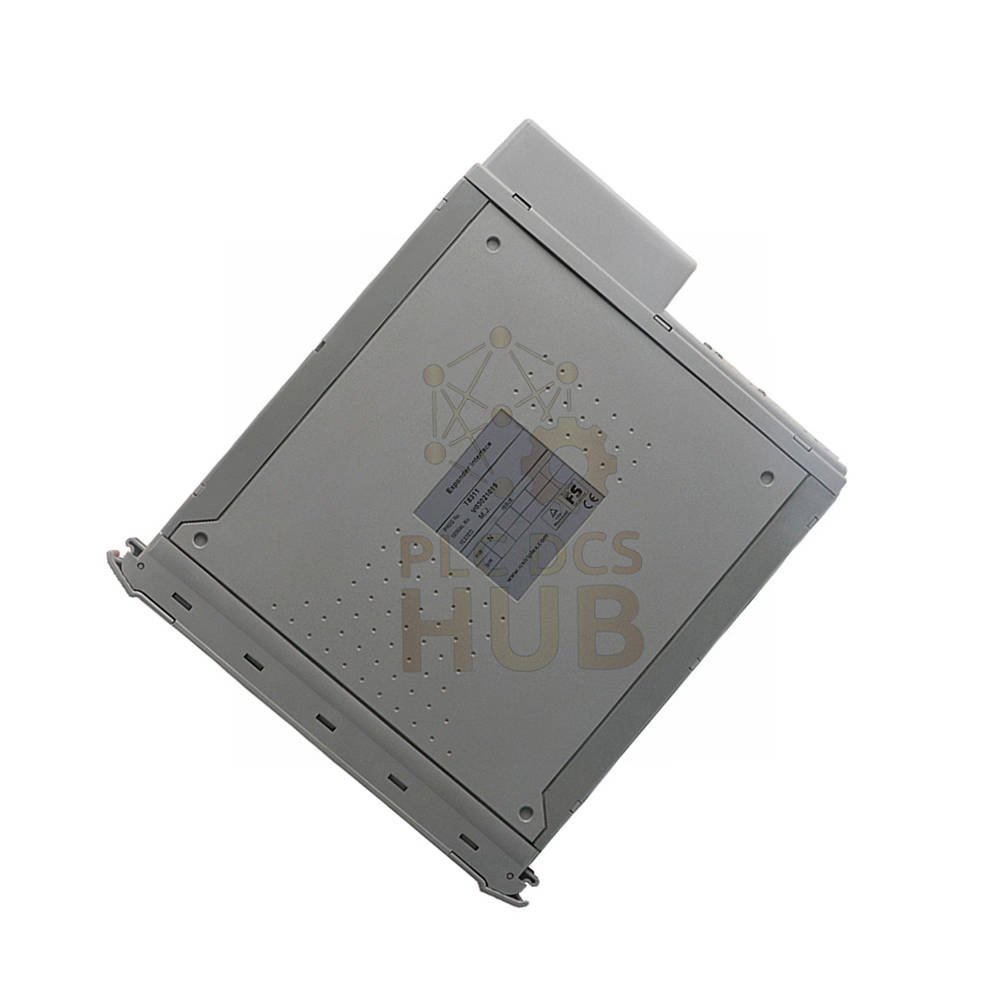

ICS Triplex T8311 Trusted TMR Expander Interface

Connects Trusted controller chassis to expansion I/O. Used with T8300 chassis. High-speed link at 250Mbps. Designed for SIL3 safety systems.

Technical Data

• ▪ Brand: ICS Triplex
• ▪ Model: T8311
• ▪ Product Type: Trusted TMR Expander Interface
• ▪ Voltage Range: 20 to 32 Vdc
• ▪ Power Consumption: 54 W max
• ▪ Heat Dissipation: 40W
• ▪ Maximum Load: 40W
• ▪ Module Clocks: 50MHz
• ▪ Expander Bus Data Rate: 250Mbps
• ▪ I/O Interface: Expander Chassis backplane
• ▪ Use with Chassis: T8300
• ▪ Operating Temperature: -5°C to 60°C (13°F to 140°F)
• ▪ Non-operating Temperature: -25°C to 70°C (-25°F to 158°F)
• ▪ Operating Humidity: 5 to 95% RH (non-condensing)
• ▪ Dimensions (LxWxH): 30.3 cm x 3.1 cm x 26.6 cm
• ▪ Weight: 1.14 kg

Certifications

• ✓ Ordinary Locations (UL standard)
• ✓ HazLoc – Class I, Div 2
• ✓ ATEX (Zone 2)
• ✓ IECEx (Ex nA IIC T4 Gc)

System Requirements – Trusted TMR

• ► Controller assembly (mandatory)
• ► Power system (mandatory)
• ► Expander system (optional but T8311 needed for expansion)
• ► T8100 Trusted Controller Chassis – houses these modules:
  • → One T8111 or T8110 Trusted TMR Processor
  • → One T8311 Expander Interface (this module)
  • → One T8151B or T8151C Communication Interface
  • → One T8153 Communications Interface Adapter
• ► Chassis must be in a rack with closed doors (EMC compliance)

System Architecture Features

• 🔹 Three 8162 Bridge Modules link Trusted TMR to legacy CS300 I/O
• 🔹 T8312 Expander Interface Adaptor on Trusted side
• 🔹 TC-324-02 PCB on CS300 rack
• 🔹 TC-322-02 cable assembly – triple bidirectional link
• 🔹 Cable length up to 15m (standard) or 50m supported

Installation & Proof Test Method (Short)

• 1. On live system, disconnect final element (prevents spurious trip).
• 2. Remove switched output but keep 120V AC supply connected.
• 3. Verify STATE = 3 (No Load). Energize output – STATE must stay 3.
• 4. If STATE becomes 4 or 5, varistor failed – replace FTA.
• 5. De-energize output, reconnect field wiring, verify STATE = 2.

This test verifies communication integrity to each expansion chassis. It checks bit error rate for safety loops.

Compatibility

• ✔ Works with T8300 chassis (expander chassis)
• ✔ Compatible with T8151B / T8151C Communication Interface
• ✔ Supports legacy CS300 I/O modules via bridge modules
• ✔ Works with T8110 / T8111 Trusted Processors

Package & Warranty

• 📦 1x T8311 Expander Interface module
• 📦 Quick start guide (digital)
• 📦 12-month warranty – covers manufacturing defects

Shipping Options

• 🚚 FedEx – Priority (2-3 days)
• 🚚 UPS – Worldwide Express
• 🚚 DHL – International door-to-door with tracking

Typical Applications

• 🏭 Oil & gas platform safety shutdowns
• ⚡ Power turbine control systems
• 🧪 Chemical reactors (SIL3)
• 🚆 Railway signaling expansion racks

Diagnostic Capabilities

• ✅ Bit error rate monitoring for each expander path
• ✅ Communication loss detection
• ✅ Built-in self-test at power-up
• ✅ Remote status via Trusted CPU

Frequently Asked Questions (FAQ)

• Q1: What cable length works best for T8311 in noisy plants?
  A1: Use up to 15m standard triple cable. For 50m, ensure proper shielding and grounding.
• Q2: Does the 12-month warranty cover shipping both ways?
  A2: Warranty covers repair or replacement. Customer pays one-way shipping. We pay return.
• Q3: Which courier is fastest for urgent expander replacement?
  A3: FedEx Priority or UPS Worldwide Express – typically 2 business days to EU/US.
• Q4: Can T8311 work with an existing CS300 system without changing configuration?
  A4: Yes. The expander supports existing CS300 I/O configs. Only need bridge modules.
• Q5: What spare part should I buy with T8311?
  A5: Buy an extra TC-322-02 cable and a T8312 adaptor. Also keep one backup T8311 module.

Buying Guidance – Choose the right Expander

• 🔹 Check your chassis: T8300 needed for T8311.
• 🔹 Confirm power supply: 20-32Vdc, 54W available.
• 🔹 Need ATEX/IECEx? T8311 certified for Zone 2.
• 🔹 For long distance >15m, order custom 50m cable.
• 🔹 Always ask for 12-month warranty proof document.
