Description
Trusted TMR Processor – ICS Triplex T8110B

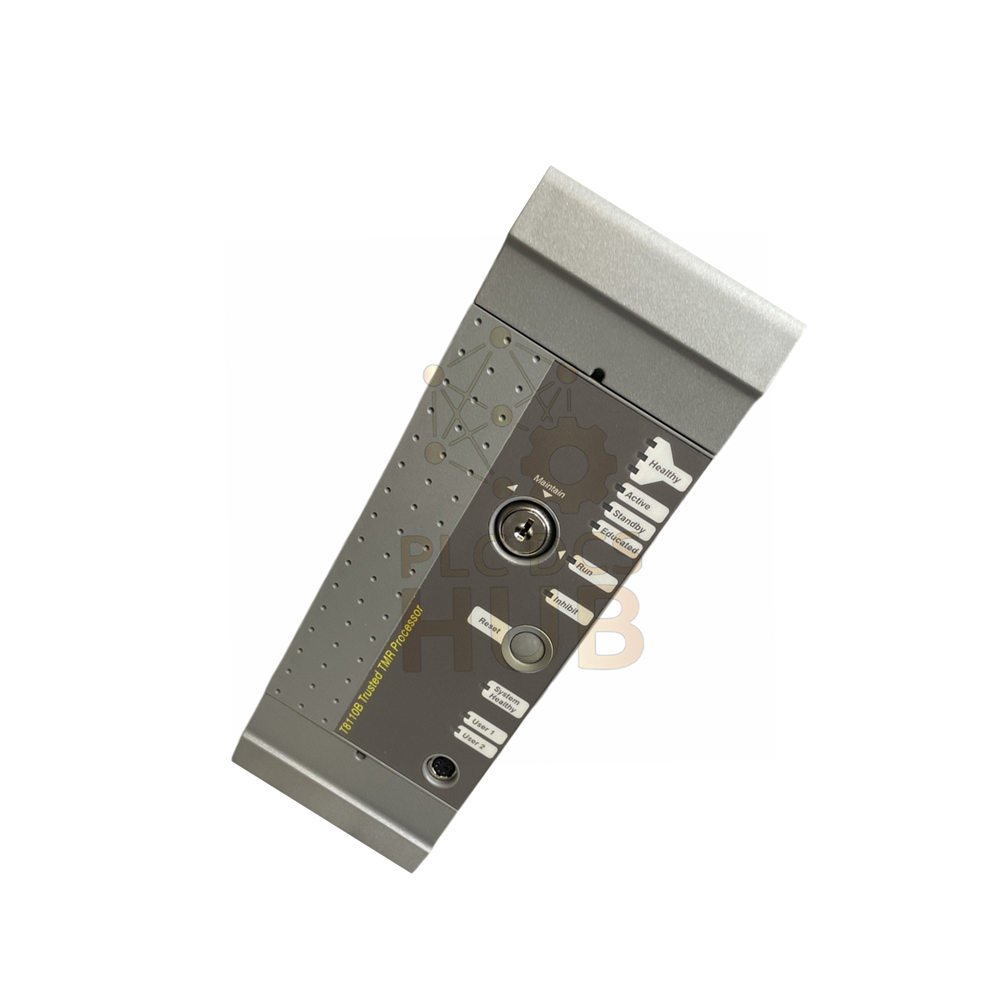

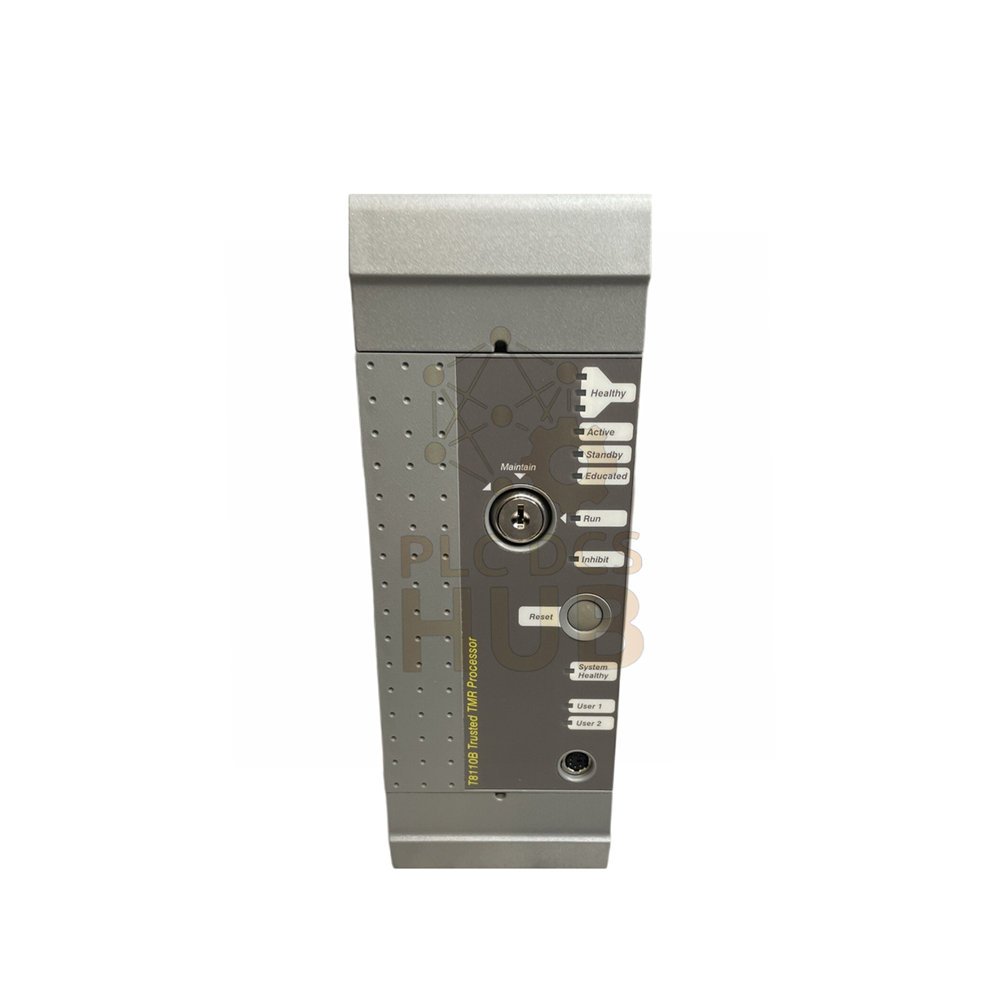

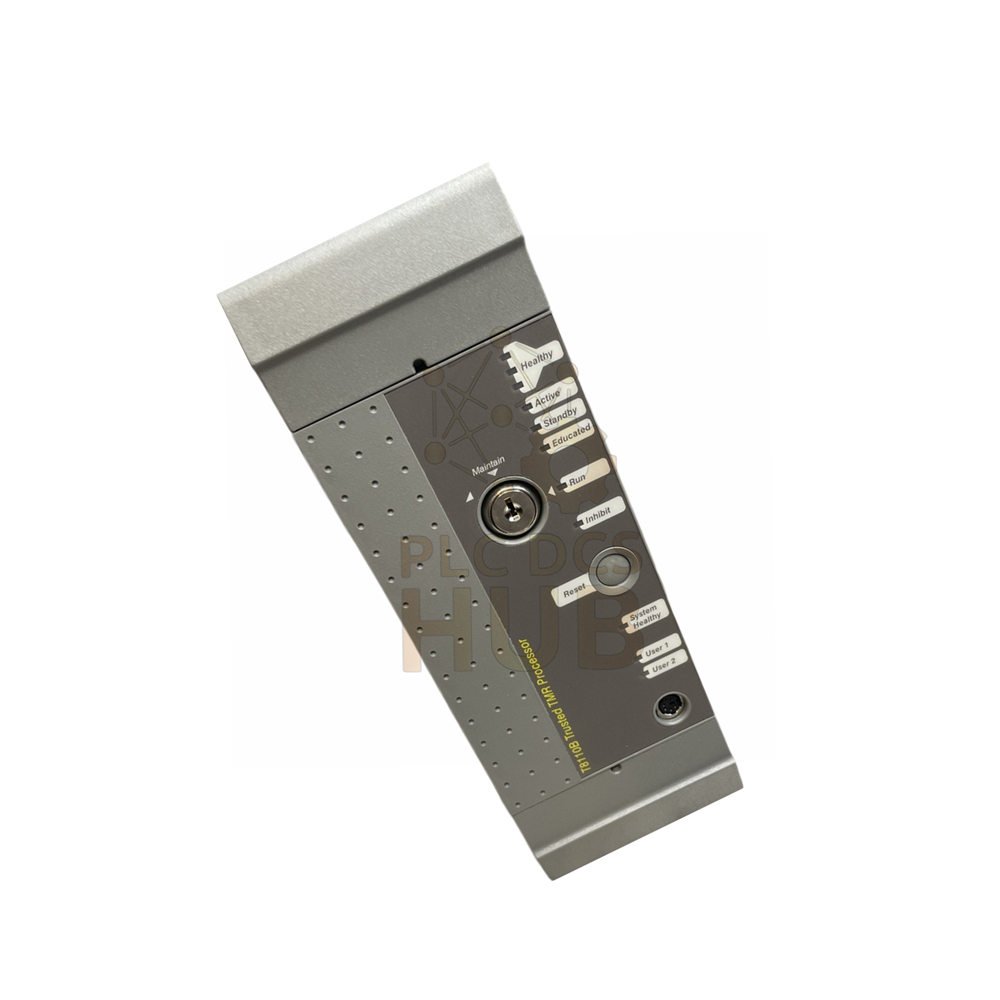

ICS Triplex T8110B is a Trusted TMR Processor. It is the main brain of a Trusted System. This module controls I/O data across the Inter-Module Bus. Works for high-integrity tasks like emergency shutdown and fire & gas control.
Technical Data (Quick View)
- Manufacturer: ICS Triplex
- Product No.: T8110B
- Product type: Trusted TMR Processor
- Voltage Range: 20 to 32V dc
- Heat Dissipation: 80 W
- Use with Chassis: T8100
- Maximum Load: 80 W
- Processor Clock: 100 MHz
- I/O Interface: Triple redundant Inter-Module Bus
- SOE Buffer Size: 1000 events (transfers to CI buffer of 4000 events)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Non-operating Temperature: -25°C to 70°C (-13°F to 158°F)
- Dimensions (LxWxH): 30.3 cm x 9.3 cm x 26.6 cm
- Weight: 2.94 Kg
Special Features (T8110B Only)
- IRIG-B002 and 122 time synchronisation signals
- Two RS422/485 (2 or 4 wire) connections
- One RS485 2 wire connection
- Front panel RS232 diagnostic port
- Hot replacement without reloading programs
- Full IEC 61131-3 programming languages
- TÜV Certified IEC 61508 SIL 3
Triple Modular Redundancy (TMR) – How It Works
- 3 processors work in lock-step.
- Each has its own memory and voter logic.
- 2oo3 voting ensures fault tolerance (3-2-0 operation).
- Failed processor can re-synchronise automatically.
- No nuisance alarms – handles faults silently.
- Time-stamped fault historian built in.
Connections & Interface
- Two RS422/485 ports (configurable 2 or 4 wire)
- One RS485 2-wire port
- IRIG-B002 and 122 time sync input
- Front panel RS232 for diagnostics & programming
- Active and Standby processor fault contacts
Environmental Ratings
- Operating: 0 to 60°C (32 to 140°F)
- Non-operating: -25 to 70°C (-13 to 158°F)
- Heat dissipation: 80 W max
- Voltage: 20-32V dc
Certifications & Compliance
- TÜV Certified IEC 61508 SIL 3
- Suitable for fire & gas, ESD, turbine control
- Fault tolerant (3-2-0) architecture
Installation & Configuration
- No hardware configuration needed.
- Requires System.INI file (see PD-T8082).
- Processor assigned to left slot by default.
- Use System Configurator for ports, IRIG, passwords.
- Password protected HyperTerminal access.
Maintenance & Support
- Hot swap support – replace without power off.
- No program reload needed after replacement.
- Front LEDs show health and status.
- RS232 port for live monitoring.
Package & Warranty
- 1 x T8110B Trusted TMR Processor module
- Quick start guide (digital)
- 12-month warranty against defects
- Shipping via FedEx, UPS, or DHL – tracking provided
Professional FAQ
- Q: Can I replace T8110B while system is running?
A: Yes. Hot replacement is supported. No need to reload programs. - Q: What is the difference between T8110 and T8110B?
A: T8110B adds IRIG-B time sync, two RS422/485 ports, and one RS485 port. - Q: Does this module work with T8300 expander chassis?
A: No. It is designed for T8100 chassis only. - Q: How many I/O modules can it handle?
A: Depends on system configuration. Refer to Trusted Toolset manual for limits. - Q: Is programming difficult for beginners?
A: Uses standard IEC 61131-3 languages. Similar to other PLCs.
Experience Tips & Selection Guide
- Field tip: Always set correct IRIG-B signal type before time sync.
- Selection advice: Choose T8110B if you need precise time stamping or extra serial ports.
- Spare strategy: Keep one cold spare to cut downtime by 80%.
- Warranty note: 12 months from shipment. Covers manufacturing defects only.
- Shipping choice: FedEx for speed, DHL for global reach, UPS for economy.
