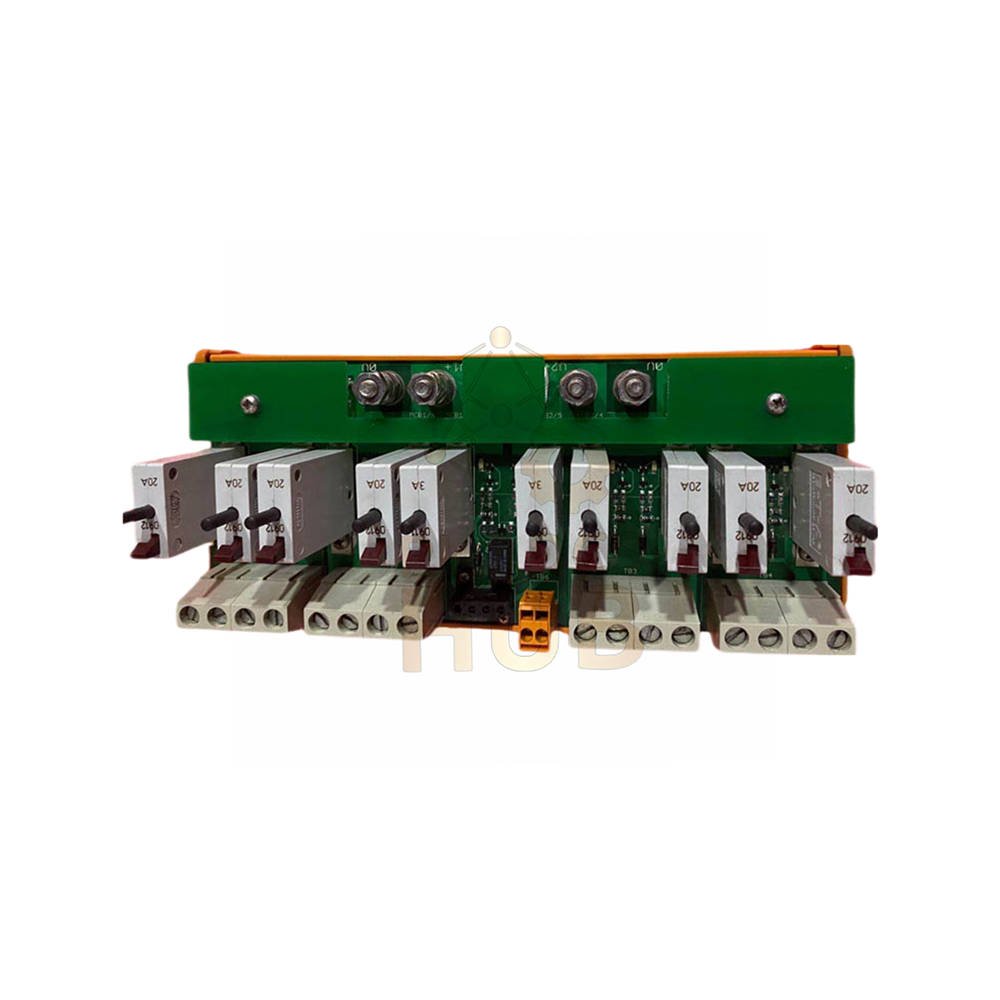

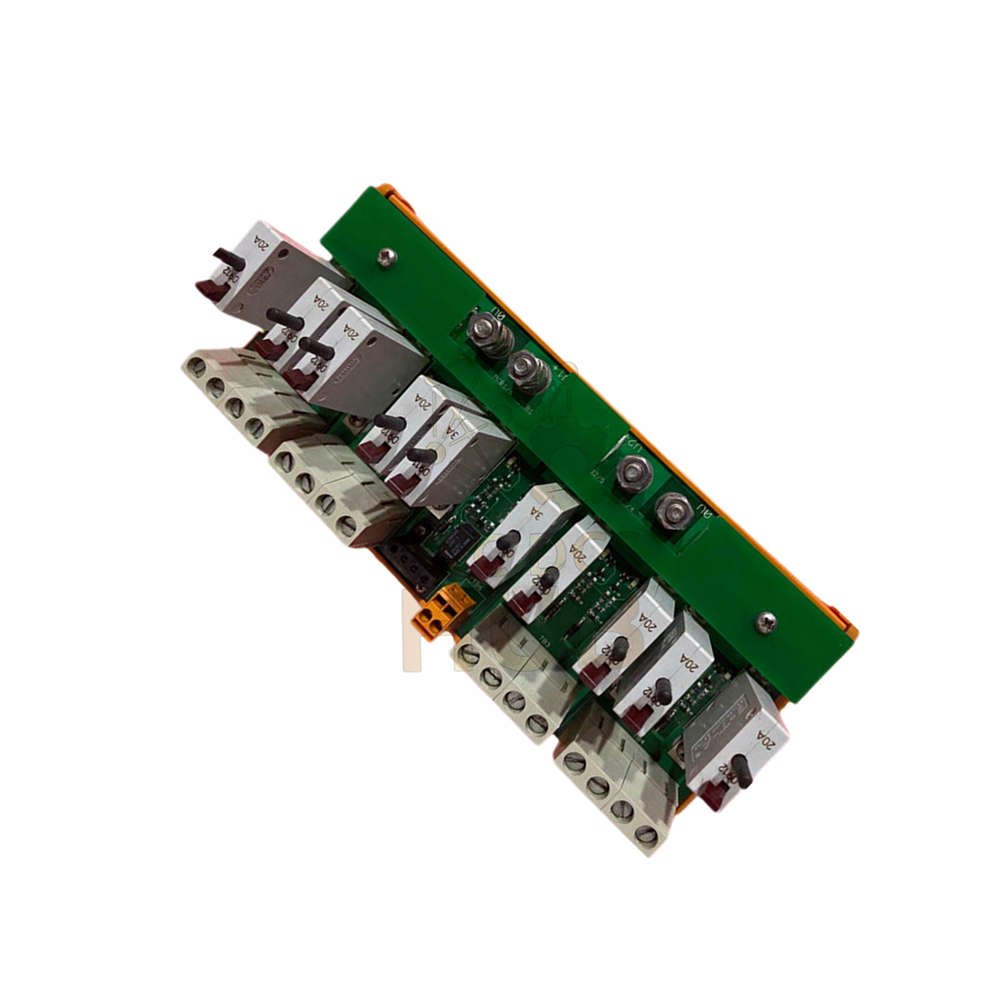

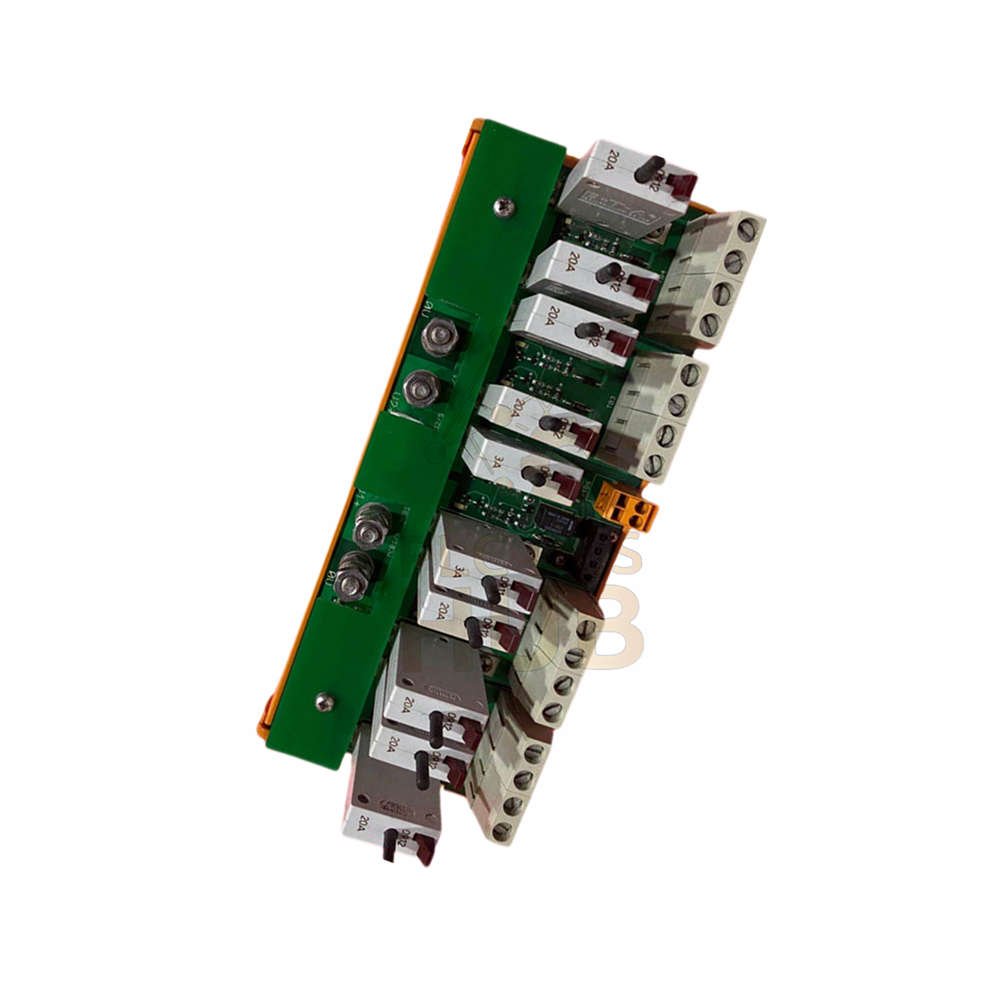

ICS Triplex T8292 Trusted Power Unit – T8292 24Vdc 60A MCB

Description

Product: ICS Triplex T8292 Trusted Power Distribution Unit (MCB 24Vdc)

• Brand: ICS Triplex (Schneider Electric)
• Model & Ordering Code: T8292
• Series / System: Trusted TMR System (Triple Modular Redundant)
• Product Type: Power Distribution Unit with MCB (Miniature Circuit Breaker)
• Origin: United States (US)

Key Features at a Glance

• Power Ratings
  • Supply Range: 18 – 28 Vdc
  • Input / Output Max: 60A
• Protection & Safety
  • MCB (circuit breaker) built-in
  • OrdLoc certified (Ordinary Locations)
• Compatibility
  • Trusted TMR Processor Chassis
  • Distributed Control Systems (DCS)
• Physical & Installation
  • Connects directly to chassis rear
  • Release buttons for easy removal

Technical Data – ICS Triplex T8292

• Supply Voltage (nominal) → 24 Vdc (range 18 to 28 Vdc)
• Max Current Capacity → 60 Amps (total input/output)
• Circuit Protection → MCB type for overcurrent protection
• Certification → OrdLoc (safe for ordinary non-hazardous locations)
• Mounting Style → Rear-mount on Trusted Controller Chassis
• Connector Type → 48-way DIN41612 (E-type) for processor link
• Environmental (typical) → 0 to 60°C operating, 5-95% RH non-condensing
• ESD Protection → Equipotential bonding required (earth point provided)

Installation Steps

• Turn off system power before installation.
• Clip the T8292 unit onto rear connectors of Trusted chassis.
• Push until release buttons click into place.
• Connect earth wire to PCB grounding point.
• Secure cables and verify MCB is in off position before power up.

Maintenance & Troubleshooting

• Visual check: LED indicators (if present on system) show power status.
• Test MCB trip function manually once a year.
• Keep ventilation slots free of dust.
• Use release buttons to detach unit for replacement.
• No special software needed – pure hardware distribution.

Compatibility

• Works with Trusted TMR Processor T8110B and T8111.
• Fits Trusted Controller Chassis T8100.
• Supports DCS links and extended facilities (IRIG-B, MODBUS Master).
• Replaces or upgrades existing T8291 units (check manual).

Certifications

• OrdLoc (Ordinary Locations) – no hazardous area rating needed.
• CE marked for EU compliance.
• Designed to meet IEC 61010 safety standards.
• RoHS compliant (lead-free).

Package Contents & Warranty

• ICS Triplex T8292 unit – 1 piece
• Basic mounting clips & release button assembly
• Quick reference guide (printed)
• 12-month warranty against defects from delivery date
• Technical support via email/phone

Shipping Methods

• FedEx – International Priority / Economy (tracking included)
• UPS – Worldwide Expedited & Saver (insured)
• DHL – Express Easy (fast customs clearance)
• Orders ship within 2 working days after payment confirmation

Typical Applications

• Power distribution for Trusted TMR control systems
• Industrial automation & safety shutdown systems
• DCS (Distributed Control System) power backbone
• Oil & gas, power plants, and process industries

Diagnostic Ability

• Built-in MCB trips on overcurrent – easy visual reset.
• Input voltage monitoring via system processor (if connected).
• No internal fuse – quick recovery after trip.
• LED optional on chassis shows power health.

Frequently Asked Questions (FAQ)

• Q1: What is the max voltage for T8292?
  Maximum supply is 28 Vdc. Nominal is 24 Vdc. Do not exceed 28V.
• Q2: Can I use this unit with non-Trusted chassis?
  No. It is designed only for Trusted TMR Controller Chassis T8100 series.
• Q3: How do I know if the MCB has tripped?
  The breaker lever moves to “off” position. Reset by flipping to “on”.
• Q4: Does it need external cooling?
  No forced air needed. Keep unit in well-ventilated cabinet below 60°C.
• Q5: Is there any configuration software required?
  No software needed. T8292 is a passive distribution unit with MCB.

User Experience & Buying Guide

• Tip from field engineers: Always connect the earth point first. This avoids ESD damage to TMR processors.
• What to check before purchase: Verify your chassis rear connector type. T8292 matches T8100 chassis only.
• Warranty reminder: The 12-month warranty covers original defects. Keep proof of purchase.
• Shipping advice: Use DHL for urgent spares. FedEx economy saves cost for non-critical orders.
• Spare parts recommendation: Keep one T8292 as backup for critical system redundancy.

Selection Help – Which Power Unit Do You Need?

• Choose T8292 if: You have Trusted TMR system and need 24Vdc distribution up to 60A with MCB protection.
• For larger loads (>60A): Consider external power distribution panel. T8292 max is 60A.
• For hazardous areas: Look for intrinsic safety barriers. T8292 is OrdLoc only.
• Older chassis? Confirm compatibility with T8100 only. T8292 does not fit T8150 chassis.
