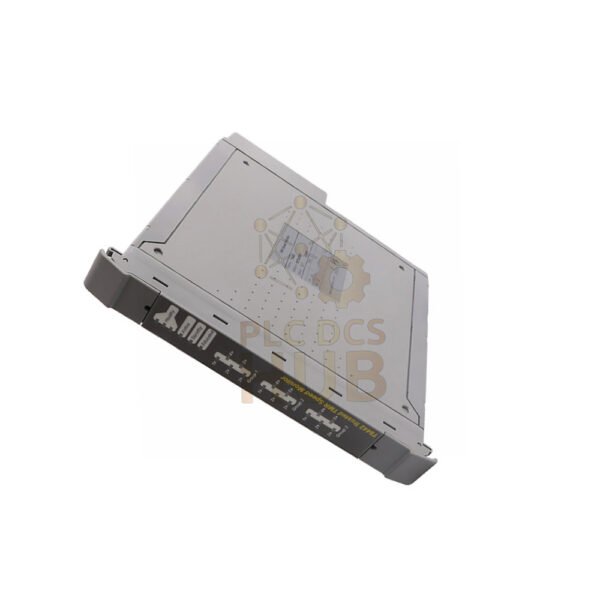

ICS Triplex T8442 Trusted TMR Speed Monitor 40 Ch FTA

Description

Product Overview

• T8442 acts as the main interface between field devices and Trusted TMR Digital Input Module T8403.
• This Speed Monitor Module supports 40 input channels per FTA for industrial digital signals.
• It uses standard 2-wire field device connections and fits DIN rail easily.
• SmartSlot connection enables ‘one to many’ hot replacement of input modules without shutdown.
• Each channel has a fused field power supply (50 mA fuse) to limit loop current and protect the system.
• On-board green LED shows field power supply integrity at a glance.
• Line monitoring components detect open circuit, short circuit, or alarm conditions in the field loop.

Key Technical Data

• Brand: ICS Triplex (Schneider Electric)
• Model: T8442
• Series: Trusted TMR System
• Module Type: Speed Monitor / 24 Vdc Digital Input FTA
• Supply Ratings: 20 – 32 Vdc, 22 W power consumption
• Channels: 40 digital inputs per FTA, 2-wire arrangement
• Measurement & Sensing: Detects field device status (open/short, alarm) via line monitoring thresholds
• Frequency Response: Optimized for standard industrial digital speeds (contact ICS Triplex for exact pulse rating)
• Sensitivity & Linearity: Works with 24 Vdc logic levels; threshold configurable via monitoring components
• Resolution: Bit-level detection of digital on/off states
• Temperature Range (operating): 0°C to +60°C (32°F to 140°F)
• Environmental Tolerance: Suitable for industrial control rooms; humidity 5-95% non-condensing
• Noise Immunity: Built-in filtering against electrical interference per TMR standards
• Connectors: 96-way socket SK1 (to module), SK2 (SmartSlot V1), 5-way terminal block for dual DC supplies, 12x 3-way + 2x 2-way terminal blocks for field signals
• Origin: United States

Installation Guide

• Mount on standard DIN rail inside a protected cabinet.
• Connect dual 24 Vdc field power supplies to 5-way terminal block PWR TB.
• Wire field devices using 2-wire connections to 12x 3-way and 2x 2-way terminal blocks.
• Attach cable from FTA to T8403 input module via 96-way socket SK1.
• Use SmartSlot (SK2) only for Version 1 systems; ignore for Version 2.
• Verify green LED lights up to confirm field power integrity.

Tuning, Maintenance & Convenience

• No regular tuning needed – thresholds set by onboard line monitoring components.
• Hot replacement via SmartSlot reduces downtime. Pull and replace module while system runs.
• Per-channel 50 mA fuse simplifies troubleshooting: blown fuse isolates faulty loop.
• LED indicator quickly checks field supply health without a multimeter.
• All terminal blocks are accessible from front for easy rewiring.

Compatibility & Certifications

• Designed for Trusted TMR System – works exclusively with T8403 24 Vdc Digital Input Module.
• Supports SmartSlot Version 1 and Version 2 (SK2 not used in V2 systems).
• Certified as part of ICS Triplex Trusted TMR safety architecture (SIL 3 capable, refer to system certificate).
• Meets CE and UL standards for industrial control equipment.

What’s in the Box (Package)

• 1x T8442 FTA board with terminal blocks
• 1x pre-mounted DIN rail clip
• 1x 96-way cable (for connection to T8403) – length 1 meter
• 1x documentation packet (quick start guide & pinout)

Warranty & Shipping

• 12 months warranty from date of shipment. Covers manufacturing defects.
• Shipping methods: FedEx, UPS, DHL – worldwide express delivery.

Typical Applications & Diagnostics

• Safety shutdown systems in oil & gas, power plants, and chemical facilities.
• Speed monitoring for rotating machinery (turbines, compressors).
• Emergency stop (E-stop) signal conditioning in TMR architecture.
• Diagnostic abilities: Detects open circuit, short circuit, field supply loss, and fuse failure per channel.
• Provides real-time field loop status to T8403 module for automatic fault reaction.

Frequently Asked Questions (FAQ)

• Can I use T8442 with other input modules?
  No. It only matches T8403 from ICS Triplex Trusted series.
• What happens if a channel fuse blows?
  The specific field loop stops working. Other 39 channels run normally. Replace fuse (50 mA fast-blow).
• Does the FTA support 3-wire sensors?
  It supports 2-wire digital devices. For 3-wire sensors, use an interposing relay or different FTA.
• How do I know if SmartSlot is active?
  Check system version. For V2, ignore SK2. For V1, plug into SK2 for hot replacement.
• Experience tip: always fuse both supply legs
  Dual 24 Vdc feeds share diodes. Fuse each feed separately to avoid sneak paths.
• Buying guidance: confirm your T8403 revision
  Older T8403 needs SmartSlot V1. Newer ones use V2. T8442 works for both, but SK2 connection differs.

Selection Guide (How to Choose)

• Use T8442 when you have exactly 40 channels of 24 Vdc digital input in a Trusted TMR rack.
• Choose this FTA if you need per-channel fusing and line monitoring for open/short detection.
• For systems requiring hot swap capability, confirm your T8403 supports SmartSlot.
• Do not select T8442 for analog signals or high-speed pulse counting above 1 kHz – contact ICS Triplex for alternatives.
