Description

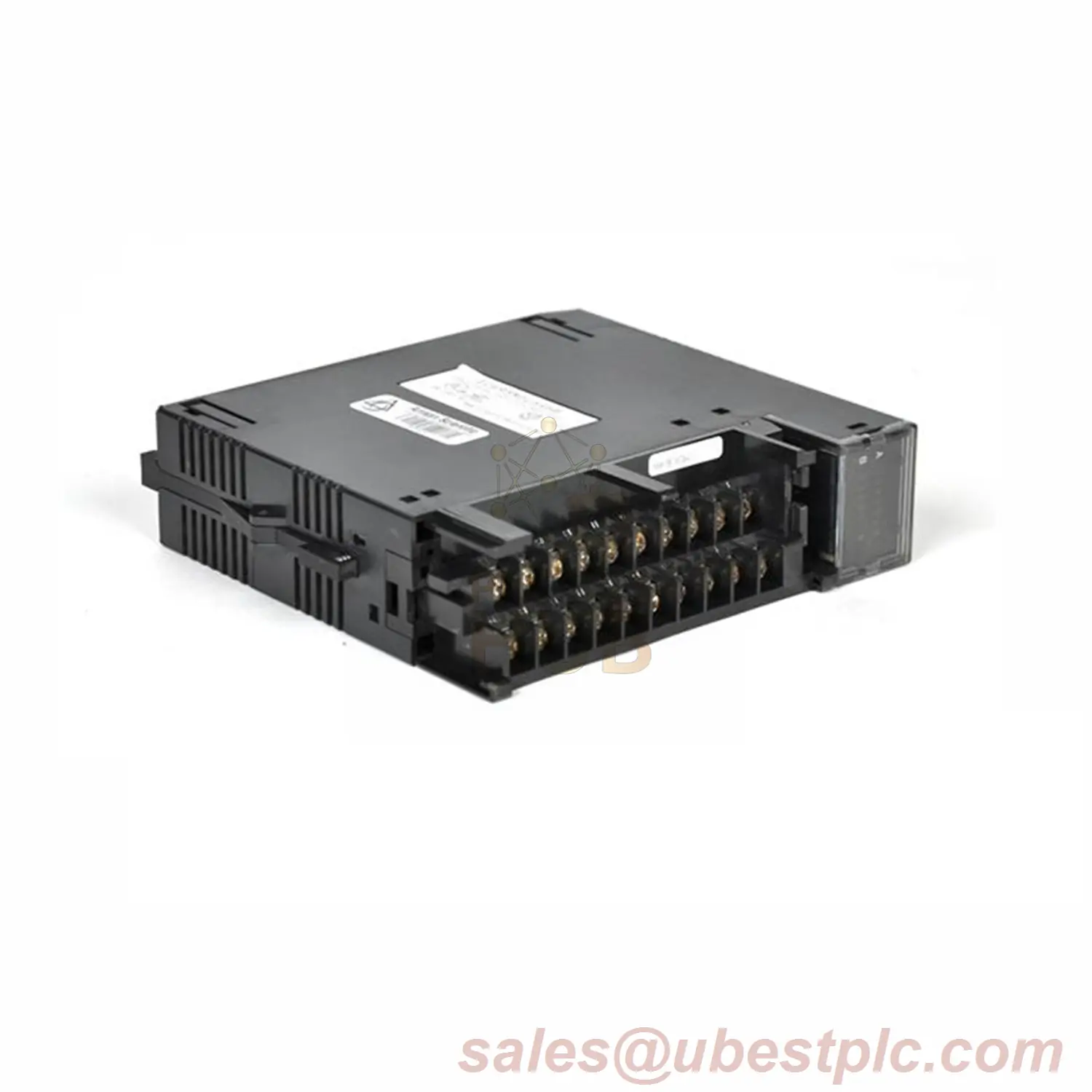

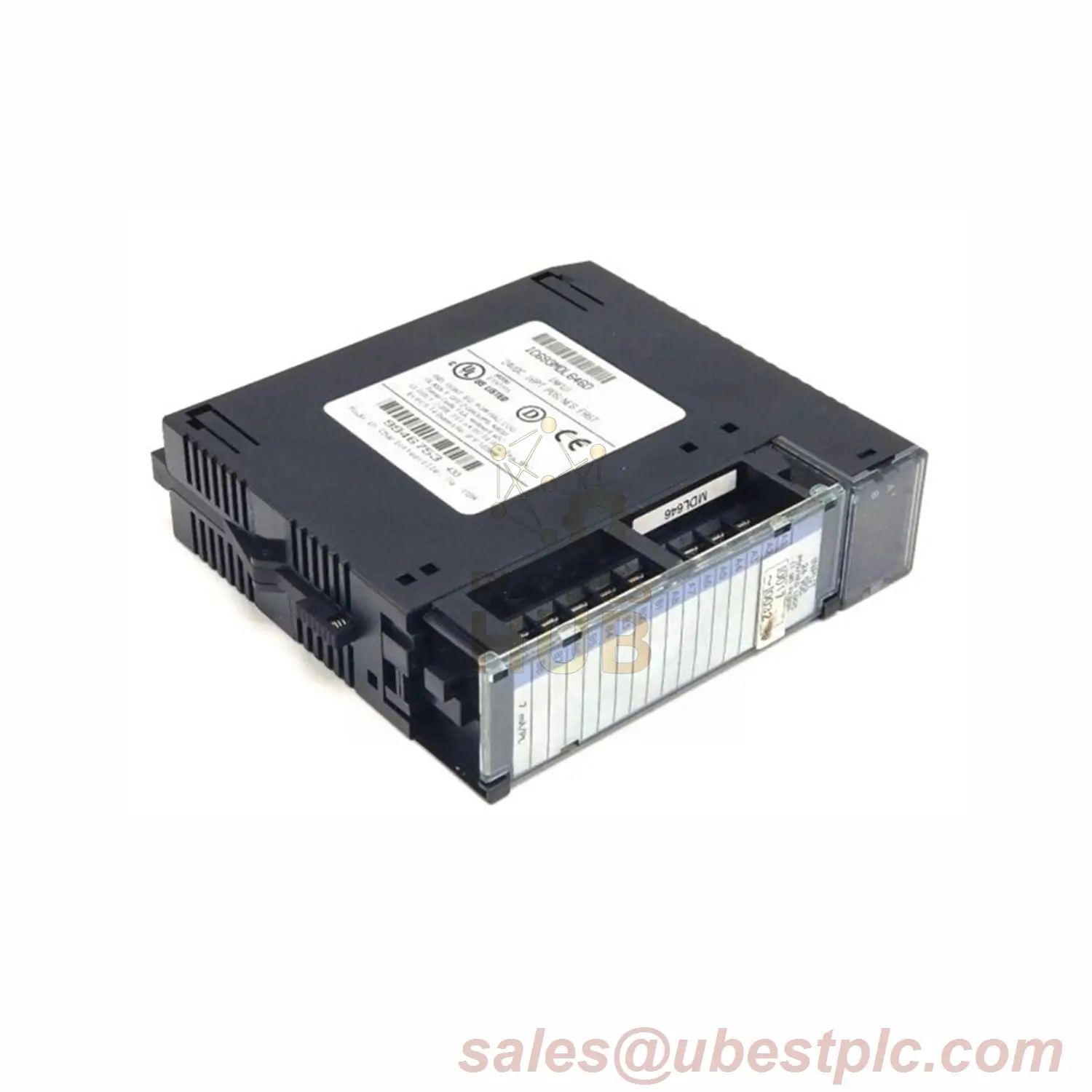

IC693MDL635: High-Voltage PLC Input Module
Module Overview
Connect high-voltage devices to your Series 90-30 PLC. This 16-input module works with 0-150VDC signals. Supports both positive and negative logic wiring.
Technical Specifications
| Manufacturer | GE Fanuc |
| Part Number | IC693MDL635 |
| Input Type | Positive/Negative Logic |
| Channels | 16 |
| Voltage Range | 0-150VDC |
| Rated Voltage | 125VDC |
| On-State Range | 90-150VDC |
| Off-State Range | 0-30VDC |
| Response Time | 8ms |
| Isolation | 250VAC |
Installation Guide
- Fits any I/O slot in RX3i systems
- Single common terminal for all inputs
- Red band labels for easy identification
Compatibility
- GE Series 90-30 PLC systems
- RX3i control platforms
- High-voltage sensors and switches
Package Contents
- 1x IC693MDL635 input module
- Installation documentation
Warranty & Shipping
- 12-month quality warranty
- FedEx, UPS, DHL express options
FAQ
Q: What voltage range can it read?
A: 0-150VDC signals (90-150V for ON state).
Q: Can I use this with AC devices?
A: No, this is DC-only input module.
Q: How fast does it detect changes?
A: 8ms response time for state changes.
Q: What does “positive/negative logic” mean?
A: Supports both sourcing and sinking field devices.
