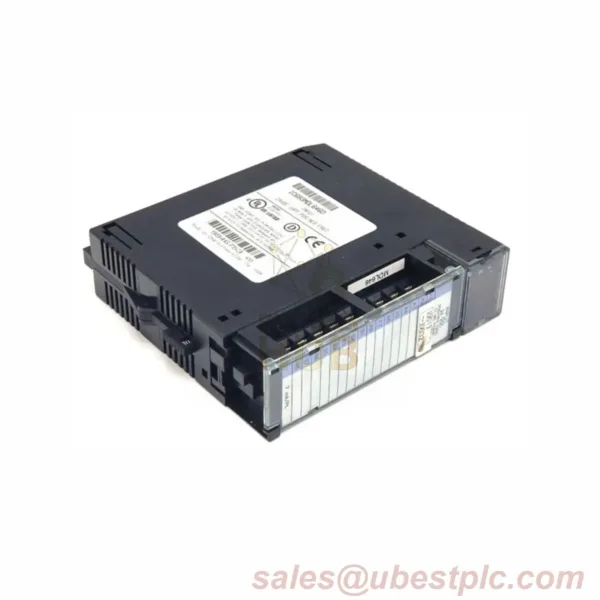

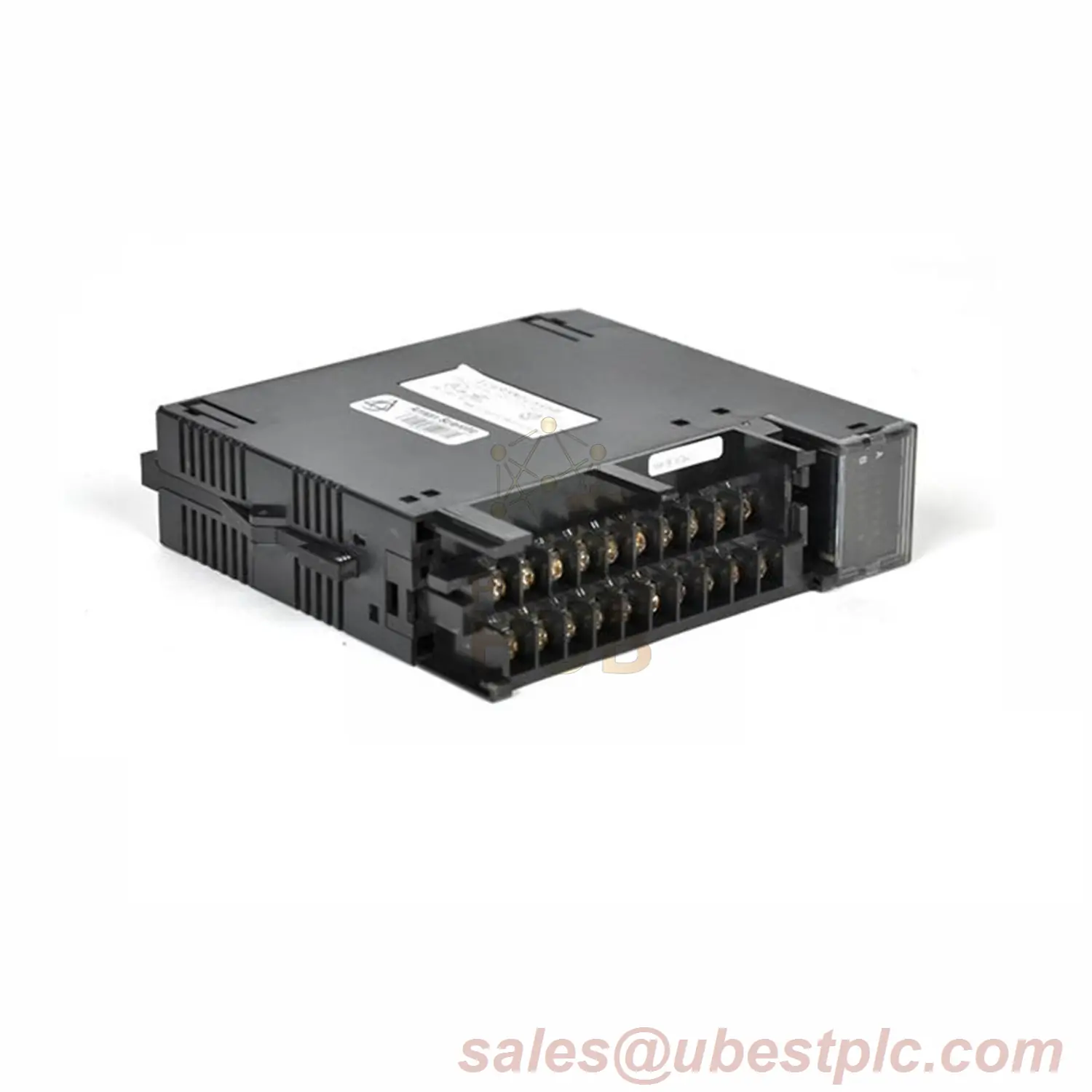

IC693MDL641: 16-Channel Negative Logic Input Module
Essential Functions
Connect switches and sensors to your Series 90-30 PLC. This negative logic module handles 16 devices with 24VDC signals. Features 1500V isolation for safety.
Technical Specifications
| Brand | GE Fanuc |
| Model | IC693MDL641 |
| Input Type | Negative Logic |
| Channels | 16 |
| Voltage Range | 0 to 30VDC |
| Rated Voltage | 24VDC |
| On-State Range | 15-30VDC |
| Off-State Range | -30 to 5VDC |
| Isolation Rating | 1500V RMS |
| Response Time | 7ms |
Installation Requirements
- Mount in clean, dry environments
- No corrosive gases or materials nearby
- User-provided 24VDC power source
- Backplane power: 5VDC
Compatible Systems
- GE Series 90-30 PLCs
- Push buttons and limit switches
- Industrial sensors
- Safety interlocks
Package Contents
- 1x IC693MDL641 module
- Installation guide
Warranty & Shipping
- 12-month performance warranty
- FedEx, UPS, DHL delivery options
FAQ
Q: What is negative logic?
A: Inputs activate when connected to ground.
Q: Can it handle AC voltage?
A: No, designed for DC signals only.
Q: How are input states indicated?
A: 16 LEDs show on/off/fault status.
Q: What power supply is needed?
A: External 24VDC source for field devices.
