Description
Product Overview

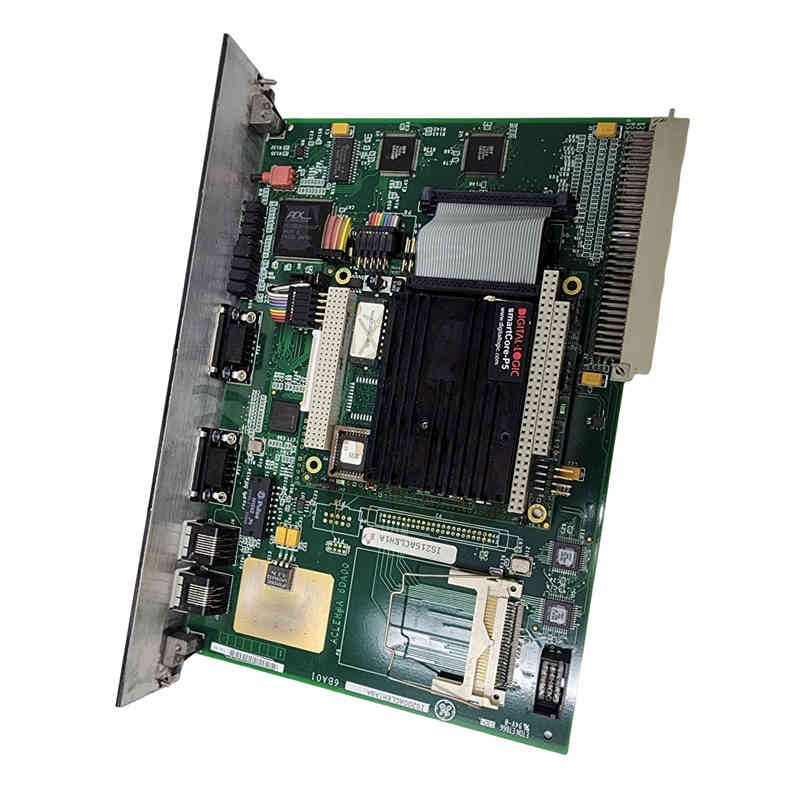

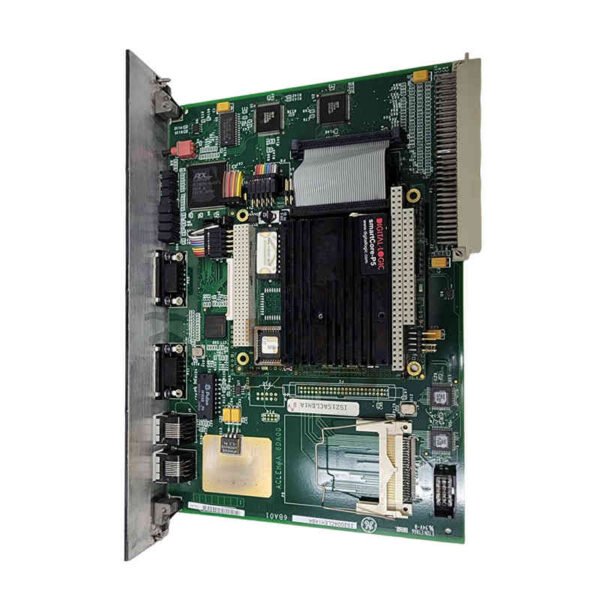

This is the IS215ACLEH1A. General Electric makes this module. It belongs to the EX2100 series for excitation control systems. This board acts as a master controller. It handles many tasks over Ethernet and other networks. The module takes up two slots on a standard EX2100 rack. We ship via FedEx, UPS, or DHL. Additionally, a 12-month warranty covers your purchase.
Need help? Click for WhatsApp: +86 158 8020 0923
Part Number Breakdown (Tree Structure)
IS215ACLEH1A
IS215 → Assembly level 215, higher assembly
ACLE → Application Control Layer Module
H1 → Hardware revision
A → Functional revision (first update from base IS215ACLEH1)
Key Specifications (MECE Organized)
Brand & Model
Brand : General Electric (GE)
Part Number : IS215ACLEH1A
Series : EX2100
Product type : Application Control Layer Module (ACLE)
Country of origin : USA
Processor & Memory
CPU : 486 at 100 MHz
Level 2 cache : 256 KB
DRAM : 128 MB (expandable)
Operating system : QNX
Non-volatile storage : Compact flash memory
Communication Ports
Ethernet ports : Two ports (10BaseT, plus second port at 10/100 Mbps)
Serial ports : Two (COM1 and COM2, RS-232)
Bus interfaces : PCI and ISA (PC/104)
I/O & Power
Number of channels : 12
Outputs : 24 V dc
DPRAM : 4k x 32 size (on carrier board)
Physical & Environment
Size : 15.9 cm high x 10.2 cm wide
Operating temperature : 0 to 45 °C
Mounting : EX2100 rack or Innovation Series drive
Faceplate LEDs : Active, OK, ENET, Status, Flash
Hardware Features
This module has two main circuit boards. They are the carrier board and a PC/104-Plus microprocessor board. GE supplies it as a fully assembled unit. Do not try to take it apart.
CPU options on newer PC/104 boards
Tualatin Celeron at 400 MHz
Pentium P5 at 266 MHz
BIOS details
Phoenix BIOS (industry standard)
Pre-programmed at the factory
No manual changes needed
Settings stored in EEROM memory
DRAM location
One SODIMM module
Fits in a socket on the underside of the PC/104 board
DPRAM communication
Connects with IS200DSPXH1_ DSPX board
Uses 32-bit DPRAM across the backplane
Hardware resolves access conflicts automatically
Max wait time is 100 ns
Software Features
BIOS function
Identifies and initializes all hardware
GE did not modify the stock BIOS
Toolbox does not support BIOS reprogramming
Runtime code
Provides basic software for regulator functions
Download it using Toolbox via ENET1 Ethernet port
Control features
Control block language and library
Online application setup loading
Internal Boolean forcing for I/O points
Fault analysis for run/permissive starts
Application-level alerts
Compatible Backplanes & Racks
This module works with these EX2100 control racks:
Simplex thyristor control rack with IS200ESBP backplane
Warm backup thyristor control rack with IS200EBKP backplane
Simplex regulator control rack with IS200ERBP backplane
Redundant regulator control rack with IS200ERRB backplane
Typical Applications
Excitation control for generators
Innovation Series automated drives
Turbine control systems
Power plant automation
Industrial motor control
Diagnostic Ability
The ACLE module helps you find problems fast.
LED indicators show real-time status
Active LED lights solid when CPU accesses memory
OK LED shows normal operation
ENET LED shows Ethernet activity
Status LED shows module health
Flash LED shows memory write activity
Application-level alerts warn of issues
Fault analysis checks run permissive conditions
RESET switch on faceplate clears fault conditions
Installation Guide
Follow these simple steps.
First, turn off all power to the rack. Next, locate two empty slots. The module needs two complete slots. Then, align the module with the card guides. Slide it in firmly. Secure it to the rack. Finally, connect Ethernet and serial cables as needed.
Important : Do not disassemble the module. Do not touch internal boards or DRAM.
Calibration & Maintenance
This module needs very little maintenance.
No field calibration is required
Keep the faceplate clean
Check LEDs during routine rounds
Update runtime code through ENET1 port
Replace only if hardware fails
Repair time : 3 to 7 days
Compatibility
Works in EX2100 excitation control racks
Also fits Innovation Series drives
Replaces older IS215ACLAH1A module (EX2100 only)
Does NOT replace ACLA in Innovation Series applications
Agency Approvals & Certifications
Manufactured in the USA
GE original factory assembly
Complies with GE EX2100 series standards
Refer to manual GEI-100584 for full certifications
What’s in the Box
1 x IS215ACLEH1A Application Control Layer Module
Factory packing
12-month warranty document
Optional accessories (order separately)
336A3582P1 Serial cable (links computer COM port to ACLE)
336A4929G1 Serial adapter cable
Recommended Manuals
GEI-100434 : Application Control Layer Module (ACL) manual
GEH-6632 : EX2100 series documentation
GEI-100584 : General instructions
5 Professional FAQs (New Questions)
Q1: Can I use this module in an Innovation Series drive?
Yes. The IS215ACLEH1A works in Innovation Series drives. However, it does NOT replace the older ACLA module for that series. Check your system manual first.
Q2: What is the difference between IS215ACLEH1 and IS215ACLEH1A?
The H1A is the A-rated functional revision. It came after the base H1 model. A-rated means minor improvements. Both work similarly. For new purchases, choose H1A.
Q3: How do I download runtime code to this module?
Use the Toolbox software. Connect through ENET1 Ethernet port. The download happens over the network. Do not use serial ports for this task.
Q4: What happens if both CPU and DSPX access the same DPRAM address?
The hardware solves this automatically. It delays one board for up to 100 ns. You do not need to do anything. The system keeps working normally.
Q5: How fast is delivery?
We ship within 24 hours after payment. For example, choose FedEx Priority (2-5 days), UPS Worldwide Express, or DHL Express Easy. Additionally, all options include tracking numbers.
Selection Guide (Buying Help)
Use this checklist to pick the right EX2100 control module for your job.
Application type : For excitation control, choose ACLE. For other tasks, choose different EX2100 boards.
Rack type : Check if your rack has IS200ESBP, EBKP, ERBP, or ERRB backplane.
Processor speed : This model has 100 MHz. Newer versions have 266 or 400 MHz.
Ethernet needed : This model gives two ports. One is 10BaseT. The second supports 10/100 Mbps.
Serial ports needed : Two RS-232 ports (COM1 and COM2) are included.
Pro tip : For faster processing, look for IS215ACLEH1A boards with Pentium CPU. For basic tasks, the 486 at 100 MHz works fine. Always check your existing system’s requirements before buying.
Warranty & Support
12 months factory warranty is included. It covers material and workmanship defects. Furthermore, free technical support is available by WhatsApp or email.
Contact us on WhatsApp: +86 158 8020 0923
For reference, see our selection of 3300 XL 11 mm Proximity Probes.
