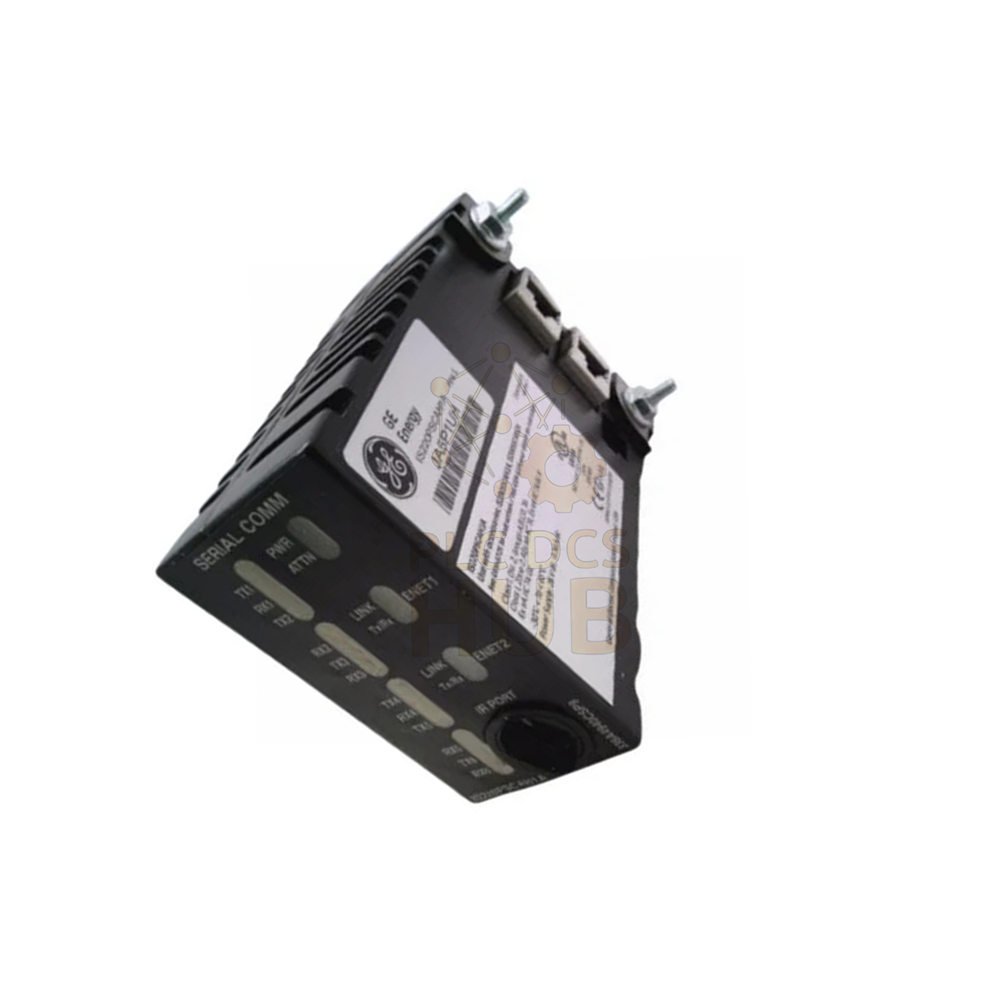

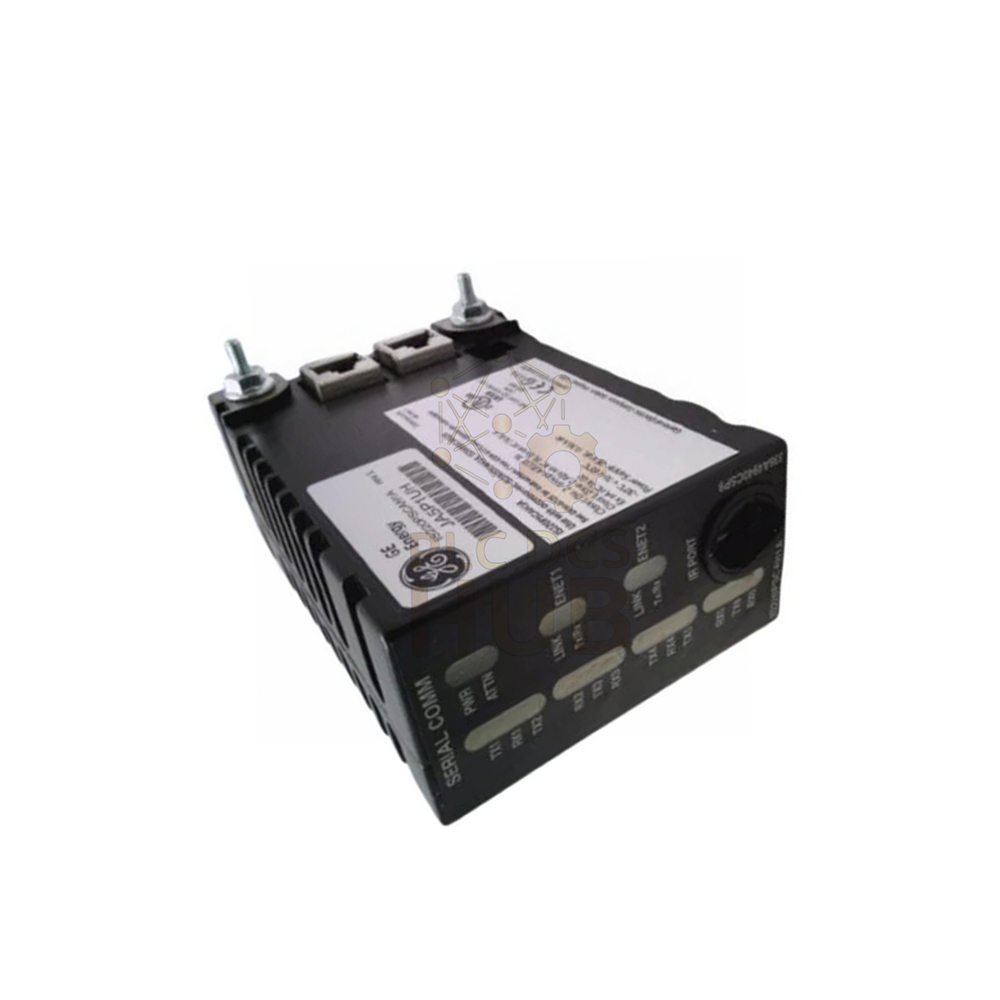

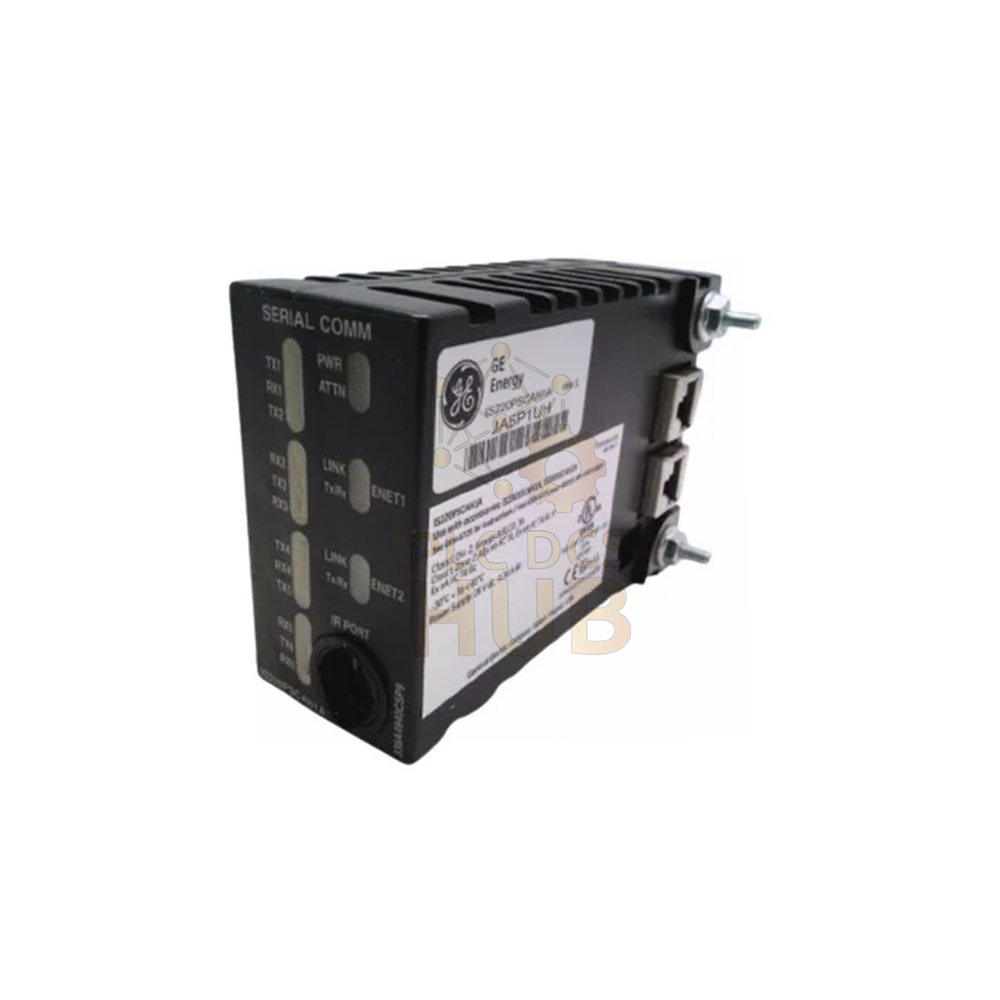

GE IS220PSCAH1A Mark VIe Serial Modbus I/O Pack

Product Introduction

The GE IS220PSCAH1A is a Serial Modbus Communication I/O Module. General Electric designed it for the Mark VIe series. Specifically, it controls gas and steam turbines. Therefore, this I/O pack links two Ethernet networks to a serial terminal board. In addition, it runs on the QNX operating system. As a result, you get reliable real-time performance. Moreover, the unit uses a BPPC processor board. Consequently, it works with all Mark VIe distributed I/O packs. Furthermore, it offers six configurable serial channels. Thus, you can connect many field devices easily. Finally, it is in stock and ships from the USA. For example, it suits power generation, oil and gas, and heavy industry.

Key Features at a Glance

• Serial Protocol Support: RS-232, RS-422, RS-485 half-duplex

• 6 independent serial channels – each configurable per port

• Dual RJ-45 Ethernet ports for network redundancy

• Modbus Master Service (RTU mode)

• Data rates up to 115200 baud

• Supports up to 9600 bytes at 1 Hz for Modbus I/O

• Self-diagnostics with alarm codes (32-67, 72-107, 108-119)

• High EMC immunity for noisy industrial sites

• Constant-current short circuit protection (on PS Series power section)

• LED indicators for visual diagnostics

• DIN-rail mountable with removable plug connectors

• No batteries or jumpers needed

Technical Specifications

Brand: General Electric
Model: IS220PSCAH1A
Revision: K
Series: Mark VIe
Product Type: Serial Communication I/O Module
Country of Origin: United States
Operating System: QNX

Electrical Ratings

• Input Voltage: 24/28 VDC

• Outputs: 125 V dc

• Trip Solenoids: 3

• Suppression: MOV across solenoid

• Trip Interlock Isolation: Optical isolation to 1500 V

Communication Parameters

• Number of Channels: 24

• Number of Inputs: 12

• Baud Rates (Master Service): 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

• Data Bits: 7 or 8

• Parity: even, none, odd

• Cable Distance (RS232 mode): 50 ft (15 m)

Environmental & Physical

• Operating Temperature: 30 to 65°C ( -40 to 158°F )

• Dimensions: 17.8 cm wide x 33.02 cm ( H 3.25″ x W 1.65″ x D 4.78″ )

• Mounting Technology: Surface mount

• Low ripple and noise

• Selectable input voltage: 115/230 VAC

Compatibility

• Works with ControlST V04.07 and later

• Supports Simplex networks for Ethernet Modbus

• Compatible with SSCA terminal board (direct plug-in)

Installation Guide

• First, securely mount the terminal board.

• Next, directly plug the IS220PSCAH1A into the SSCA terminal board connector.

• Then, use threaded inserts near Ethernet ports to secure the pack.

• After that, adjust the bracket. Specifically, avoid any right-angle force on the DC-62 pin connector.

• Finally, plug in one or two Ethernet cables. Therefore, the pack works over either port.

• Meanwhile, apply power via the side connector. Notably, you do not need to remove power first. As a result, soft-start controls inrush current.

• As a final step, add the PSCA module in ToolboxST. Then, configure your devices. For help, press F1 in Component Editor.

Debugging & Maintenance Convenience

• For example, LED indicators show real-time status and faults.

• In addition, self-diagnostic tests monitor analog inputs. Specifically, they check position and pressure.

• Furthermore, the pack checks configurable high/low levels. Consequently, it enables or disables functions.

• As a result, alarms appear as codes: 32-67, 72-107, 108-119, 114-119.

• However, three consecutive time-outs must occur first. Only then does a signal become unhealthy.

• Therefore, after four time-outs, the input value clears for that signal.

• Moreover, no batteries or jumpers are inside. Thus, no routine part replacement is needed.

• Finally, diagnostic messages announce all communication problems. Consequently, you can fix issues quickly.

Compatibility Information

• Specifically, this pack is part of Mark VIe and Mark VIeS safety systems.

• Therefore, it works as a gateway to the Mark VIeS safety controller.

• Additionally, the BPPC board is functionally compatible with ControlST V04.07+.

• For instance, use it on Simplex networks for Ethernet Modbus support.

• Moreover, it interfaces with smart pressure transducers. It also works with Kollmorgen electric drives.

• Consequently, it supports second-class I/O. In other words, coherency exists only at the signal level. Not at the device or board level.

Certifications

• UL/cUL 60950

• UL/cUL 508

• UL/cUL 1604 (Class I, Div. 2)

• High EMC immunity

• Meets standards for industrial control applications

Package Contents

• IS220PSCAH1A Serial I/O Pack (Rev K) – 1 unit

• No additional cables or brackets included. Therefore, order them separately.

• Manual reference: GEI-100868A (downloadable)

Warranty & Shipping

• 12-month warranty against manufacturing defects.

• Fast repair service: 3-7 days.

• Shipping carriers: FedEx, UPS, DHL.

• In stock – ready for immediate dispatch.

Typical Applications

• Gas turbine control systems

• Steam turbine power generation

• Balance of plant (BoP) management

• Deep-sea drilling controls

• Desalination plants

• Gas compression stations

• Battery charging (regulated output power)

• Safety-critical systems (Mark VIeS safety controller integration)

Diagnostic Capabilities

• Specifically, it monitors position and pressure analog inputs.

• Moreover, it provides user-configurable high/low limit checking.

• As a result, alarms generate for latching or non-latching events.

• In addition, there are individual health bits for each signal.

• However, system limit checking applies only to fixed I/O signals.

• Consequently, Modbus I/O gets health bits per point. But it receives no limit checking.

• Finally, LEDs show Ethernet link, power, and fault status. Thus, you can see problems at a glance.

FAQ – Frequently Asked Questions

Q: What protocols does the IS220PSCAH1A support
A: It supports RS-232, RS-422, and RS-485 half-duplex. Therefore, you set each port individually.

Q: Can I use this module with a simplex network
A: Yes. For example, one Ethernet port supports Ethernet Modbus on simplex networks.

Q: What happens if a Modbus signal times out
A: Specifically, after 3 time-outs the signal becomes unhealthy. Consequently, after 4 time-outs the input value clears.

Q: Does this pack require any batteries or jumpers
A: No. Therefore, built-in power supplies and soft-start design remove this need.

Q: How do I know if the pack is working correctly
A: For instance, check the LED indicators on the faceplate. Additionally, use ToolboxST to read diagnostic alarms.

Q: What is the maximum data volume for Modbus I/O
A: It supports up to 2400 bytes at 4 Hz. Alternatively, it supports 9600 bytes at 1 Hz. Or a combination of both. Thus, it is very flexible.

Q: Can I hot-swap the I/O pack
A: Yes, soft-start capability controls inrush current. However, always follow local safety rules.

Experience-based Q&A

Q: I see alarm codes 72-107. What should I check first
A: Specifically, these codes point to Modbus port communication errors. Therefore, check cable connections first. Then, verify baud rate matching. Finally, check parity settings per port.

Q: The pack feels warm. Is that normal
A: Yes, the operating temperature range is 30 to 65°C. Consequently, ensure proper ventilation. Also, keep no blockages near the unit.

Q: I replaced a failed unit but the new one shows no data
A: First, verify the terminal board bracket. Specifically, ensure it applies no side force to the DC-62 connector. Then, re-run configuration in ToolboxST.

Q: Can I use both Ethernet ports for redundancy
A: Yes. For example, standard practice connects ENET1 to the R controller network. Meanwhile, the PSCA negotiates proper operation over either port.

Q: How often should I run self-diagnostics
A: The pack runs them continuously. Therefore, monitor alarms through ToolboxST. Do not schedule manual tests.

Q: Does this module work with 3300 XL 11 mm Proximity Probes
A: Indirectly. Specifically, the PSCA handles serial communication only. Therefore, for direct probe input, use the compatible analog I/O pack with the 3300 XL 11 mm Proximity Probes.

Selection Guide – How to Choose the Right I/O Pack

• Do you need serial communication only? Then, choose IS220PSCAH1A. Specifically, it handles RS-232/422/485.

• Do you have many Modbus devices? For example, this pack supports 6 ports. Moreover, it reaches up to 115200 baud.

• Are you using a simplex Ethernet network? Then, one port works for Modbus TCP.

• Do you need safety-rated control? Consequently, use this pack with the Mark VIeS safety controller. It acts as a gateway.

• Are you running ControlST older than V04.07? However, you must upgrade software first. Otherwise, it is not compatible.

• Is your mounting space tight? Moreover, the low profile case and DIN-rail mount save panel space.

• Is your electrical environment noisy? As a result, high EMC immunity protects your signals. Additionally, optical isolation (1500 V) adds protection.

For help selecting the right GE Mark VIe parts, contact our team.
