IS420UCSCS2A GE Mark VIeS Controller | SIL2/3 Dual Core

Description

Product Overview

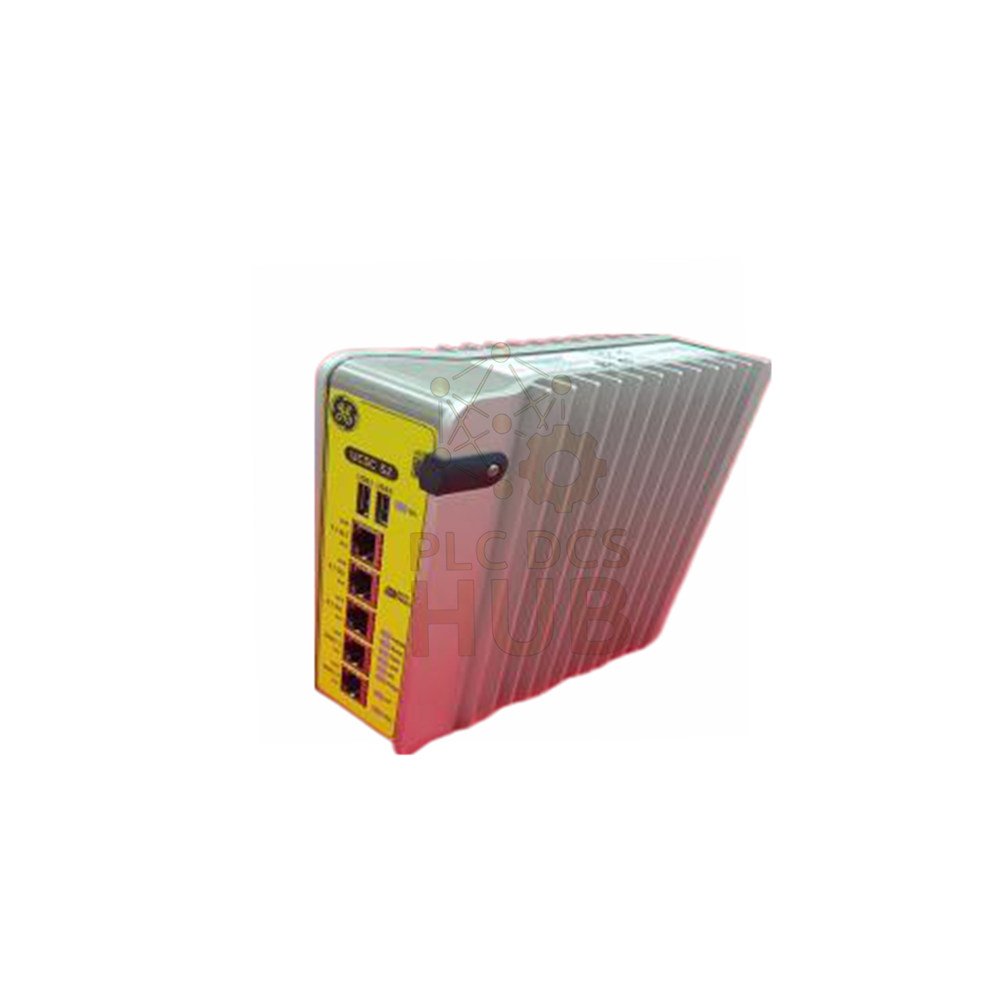

The GE IS420UCSCS2A is a Dual Core Controller Module from the Mark VIeS Series. General Electric designs it for Distributed Control Systems (DCS). This module runs safety control applications for functional safety loops. It achieves SIL 2 and SIL 3 capabilities. The controller uses QNX Neutrino real-time operating system. It serves operators knowledgeable in Safety-Instrumented System (SIS) applications. The IS420UCSCS2A reduces risk in critical safety functions.

Life Cycle Status: Active. Country of Origin: United States. Repair time: 3-7 Days. Availability: In Stock.

Need a quote or tech support? Contact us via WhatsApp: +8615880200923

Key Functional Description

This compact, stand-alone controller runs application-specific control logic. It works for wind turbines, gas turbines, steam turbines, and combined-cycle power plants. The controller supports Simplex, Dual, and TMR redundancy starting from ControlST V07.02.

Advantages include:

• Single module design

• No battery required

• No cooling fan

• No jumper settings

• Flash memory updates easily

• Expandable with seven additional I/O ports

The UCSC mounts on a panel. It communicates through on-board IONet, PROFINET, High-speed Serial Link (HSSL), or other interfaces. The non-safety version IS420UCSCH1B can interface with this safety system via EGD protocol on UDH Ethernet port.

Over-Temperature Protection Features

The controller uses internal temperature readings to protect electronics.

• Internal circuitry warns at 85°C (185°F)

• Shuts down at 95°C (203°F)

• Reboots when temperature drops below 75°C (167°F)

• Microprocessor warns at 105°C (221°F)

• Shuts down at 107°C (225°F)

• Power cycle needed after microprocessor over-temperature shutdown

• The OT LED lights up for both warnings

• System sends diagnostic alarms for both events

Technical Specifications

Brand: General Electric (GE)
Part Number: IS420UCSCS2A
Series: Mark VIeS
Product Type: Dual Core Controller Module

Processor & Memory:

• Microprocessor: Dual core, 1.6 GHz AMD G-Series

• Memory: 2 GB DDR3-1066 SDRAM

• Storage: 128 GB flash memory

Power Requirements:

• Power supply voltage: 28 V dc

• Voltage range: 18 to 32 VDC

Input Span: -8 mV to +45 mV

Mounting: DIN-rail mounting

Operating Temperature: -40°C to 70°C

Physical Size:

• Dimensions: 168 x 150 x 55 mm

• Weight: 1,327 g

Manual Reference: GEI-100867A

Compliance: IEC 61508 certified for functional safety

Installation and Mounting Guide

• Use standard DIN-rail mounting

• No special tools needed

• No hardware configuration jumpers

• All settings via ToolboxST software

• Mount in a panel with good airflow

• Keep clearance for I/O expansion ports

• Use shielded cables for IONet connections

Commissioning and Maintenance Convenience

• No batteries means zero battery replacement

• No fans eliminates fan cleaning or failure

• Flash memory updates through software

• ToolboxST software handles all configurations

• Download new logic without opening panels

• Diagnostic alarms show on OT LED

• Temperature warnings appear in software

Compatibility Information

• Works with Mark VIe and Mark VIeS I/O packs

• Compatible with ControlST V07.02 or later

• Supports Simplex, Dual, and TMR redundancy

• Connects via IONet, PROFINET, HSSL

• Non-safety UCSCH1B interfaces via EGD on UDH

• Provides data through OPC UA Server

• Sends feedback via Modbus Master

• Use with standard 3300 XL 11 mm Proximity Probes for vibration monitoring

Certifications

• IEC 61508 certification for functional safety

• Compliant for SIL 2 and SIL 3 capability

• Certified for Safety-Instrumented System (SIS) applications

• Meets GE Mark VIeS safety standards

Typical Applications

• Gas turbine control systems

• Steam turbine protection

• Combined-cycle power plants

• Wind turbine safety controls

• Functional safety loops (SIL2/3)

• Emergency shutdown systems

• Burner management systems

• Compressor control with 3300 XL 11 mm Proximity Probes

Diagnostic Capabilities

• Internal temperature monitoring

• Microprocessor temperature tracking

• OT LED indicator for over-temperature

• Diagnostic alarms in ToolboxST

• Redundancy health checks (Simplex/Dual/TMR)

• IONet communication status

• Power supply voltage monitoring

• Memory and storage self-tests

• Automatic reboot after thermal recovery

Packaging List

• One IS420UCSCS2A Dual Core Controller

• Quick start guide (refer to GEI-100867A)

• No batteries or fans included

• No mounting hardware (DIN rail sold separately)

Warranty and Shipping

Warranty: 12 months from invoice date. Covers manufacturing defects. Does not cover misuse or improper installation.

Shipping Partners: FedEx, UPS, DHL. Express delivery available.

Repair Service: 3-7 day turnaround.

FAQ – Frequently Asked Questions

Q1: What is the difference between IS420UCSCS2A and UCSCH1B?

A: The IS420UCSCS2A is a safety controller for SIL2/3 loops. The UCSCH1B is non-safety. Use S2A for safety functions. Use H1B for non-SIF loops or gateway tasks.

Q2: Can I use this controller in extreme cold environments?

A: Yes. Operating range is -40°C to 70°C. This works for Arctic or desert installations.

Q3: What happens if the controller overheats?

A: It warns at 85°C and shuts down at 95°C (internal). Microprocessor shuts down at 107°C. It reboots after cooling to 75°C for internal circuit. Microprocessor shutdown needs a power cycle.

Q4: Does this module work with existing Mark VIe I/O?

A: Yes. It communicates with both Mark VIe and Mark VIeS I/O packs through IONet.

Q5: How do I update the firmware?

A: Use ToolboxST software on Windows. Download new logic via flash memory update. No physical access needed.

Q6: Which redundancy type should I choose for a burner management system?

A: For critical safety like burners, use TMR (Triple Modular Redundancy). For lower risk, Dual is fine. Simplex works for non-critical loops.

Q7: The OT LED is on but the controller still runs. Is this normal?

A: Yes. OT LED means a warning (85°C internal or 105°C microprocessor). The controller still operates but check cooling immediately.

Q8: Can I connect vibration probes directly to this controller?

A: No. The controller connects through I/O packs. Use compatible I/O modules for 3300 XL 11 mm Proximity Probes.

Selection Guide – How to Choose the Right UCSC Controller

First, define your safety requirement.

• Choose IS420UCSCS2A if you need SIL2 or SIL3 capability.

• Pick IS420UCSCH1B (non-safety) when no safety requirement exists.

Then, decide on the redundancy level.

• Simplex uses one controller. It suits low risk applications.

• Dual works with two controllers for medium risk. This fits most turbine controls well.

• TMR applies three controllers to high risk tasks. It is best for burner management or emergency shutdown.

Always check environmental conditions before installation.

• The standard range of -40°C to 70°C works for most sites.

• No special cooling is needed as long as room temperature stays below 85°C.

Next, verify your software version for compatibility.

• ControlST V07.02 or later is required for the S2A model.

• Older versions do not support this safety controller.

After that, plan your I/O expansion needs.

• Start with the on-board IONet ports included on the module.

• Add up to seven more ports later if your application grows.

Finally, select a shipping method that matches your timeline.

• FedEx, UPS, and DHL are all available options.

• Choose express delivery for urgent repairs or critical downtime situations.

Pro tip for buyers: Order a spare unit if your process cannot stop. Keep one on the shelf. Repair time is 3-7 days. New stock is ready to ship.

Contact Information

For inquiries, technical support, or urgent orders:
WhatsApp: +8615880200923

Email: sales@plcdcshub.com (example)

Response time: Within 24 hours.
