Description
Product Introduction

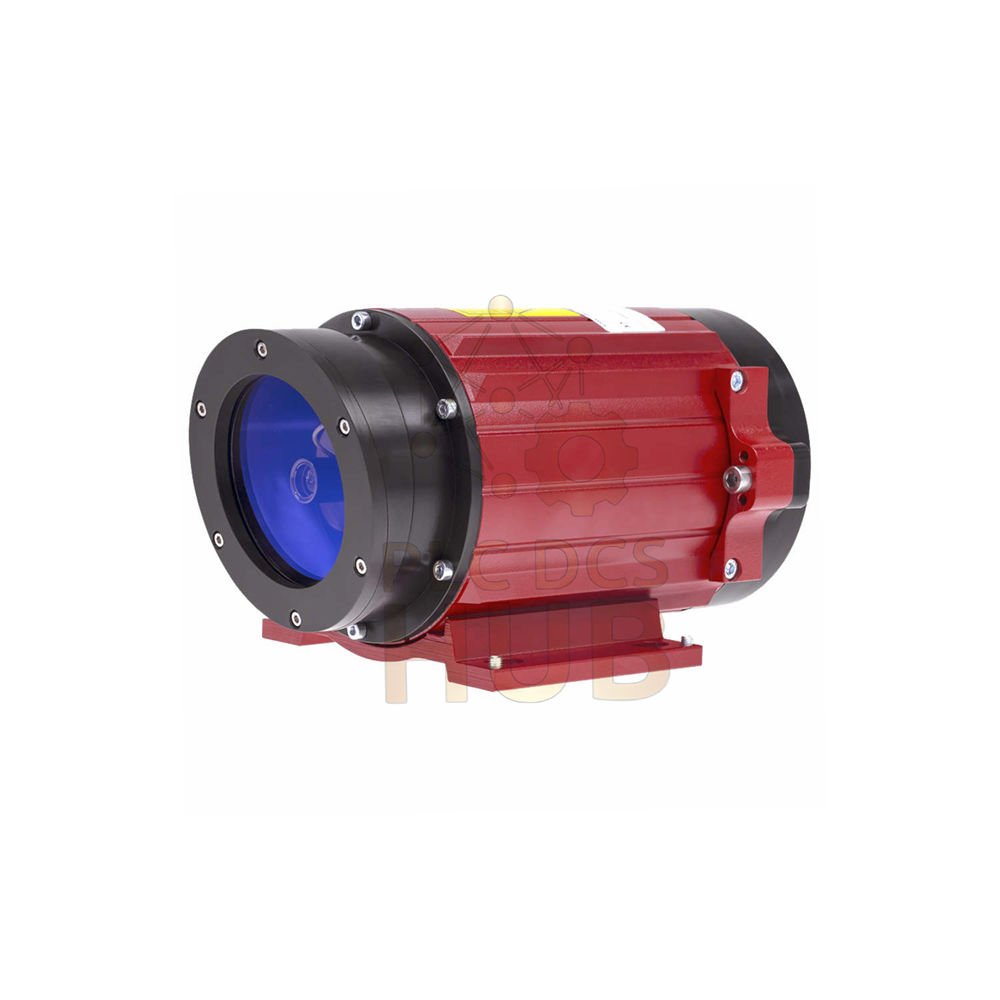

The K-LE200-EIP-1 is a laser measuring device for long distances. It uses phase shift measurement for high accuracy. The device works with reflector foil up to 195 meters. It offers 0.1 mm physical resolution. Output rate reaches 1000 values per second. The EtherNet/IP interface supports fast industrial networks. An integrated heating option allows cold area use.
Key Features
- Measuring range up to 195 m with reflector foil
- 0.1 mm resolution for fine position control
- 1000 Hz refresh rate for dynamic processes
- Laser class 2 with red light (670 nm, ≤ 1 mW)
- EtherNet/IP with encoder profile 0x22
- Integrated heater option for -30°C operation
- IP65 protection for dusty or wet areas
- Programmable inputs and outputs
Technical Specifications
- Brand: PLCDCS HUB
- Model: K-LE200-EIP-1
- Type: Laser distance measuring device
- Measuring principle: Phase shift
- Min. warm-up time: > 30 minutes for valid data
- Supply voltage: 18 to 27 VDC ±5%
- Current (no load): ≤ 350 mA
- Heater voltage (option): 24 VDC ±5%
- Heater power: 48 W
- Range (reflector foil): 0.2 to 125 m standard
- Range extension 1: 170 m
- Range extension 2: 195 m
- Resolution: 0.1 mm physical
- Linearity error: ±3 mm up to 12 m, ±5 mm full scale
- Repeatability: ±2 mm
- Laser type: Red diode, 670 nm wavelength
- Laser class: 2 per IEC 60825-1
- Output power: ≤ 1 mW
- Safety standards: IEC 60825-1, FDA 21CFR 1040.10/1040.11, Laser Notice No.50
- Output rate: 1000 values per second
- Integration time: 1 ms
- Interface: EtherNet/IP per IEC 61784-1, IEC 61158
- Speed: 100 Mbps Fast Ethernet
- Device profile: Encoder 0x22
- Digital input: 1 channel, programmable for preset, laser off, error ack
- Digital output: 1 channel, programmable for temp, intensity, speed, position, hardware status
- Input low (0): < 2 V, max ±35 V, 5 kOhm
- Input high (1): > 8 V
- Output low (0): < 1 V, ≤ 100 mA
- Output high (1): > supply voltage -2 V
- Vibration: ≤ 50 m/s², sine 50 to 2000 Hz
- Shock: ≤ 300 m/s², half sine 11 ms
- Immunity: DIN EN 61000-6-2
- Emissions: DIN EN 61000-6-3
- Working temp (standard): 0 to +50°C
- Working temp (with heater): -30 to +50°C
- Storage temp: -20 to +75°C (dry)
- Temp drift: 1 ppm/°C for all ranges
- Humidity: 98%, non-condensing
- Protection class: IP65 standard
LED Indicators & Diagnostics
- Link LED: ON = Ethernet connected, Flashing = data active
- Network Status LED: OFF = no power or no IP, 1 Hz = no connections, ON = connected
- Error LED: 1 Hz = connection timeout, ON = duplicate IP, 1 Hz green/red = self-test
- Self-test runs at power-up
- Diagnose intensity, temperature, and hardware status via output
Installation & Maintenance
- Mount on stable surface to avoid vibration errors
- Allow > 30 minutes warm-up for rated accuracy
- Clean the lens with soft cloth only
- No regular calibration required under normal use
- Use shielded Ethernet cables for noisy areas
- Configure parameters via TRWinProg or fieldbus tool
Programmable Parameters
- IP addressing
- Measurement resolution
- Error output behavior
- Intensity monitoring threshold
- Preset value
- Temperature compensation settings
- Counting direction
- Velocity output settings
Typical Applications
- Overhead crane positioning in steel mills
- Level measurement in large tanks
- Coil diameter control in rolling mills
- AGV navigation and docking
- Hydraulic cylinder position feedback
- Cold storage or freezer areas (with heater)
Compatibility
- Works with all EtherNet/IP scanners (Rockwell, Siemens, etc.)
- Use TRWinProg software for advanced setup
- Reflector foil required for max range
- For vibration monitoring, pair with 3300 XL 11 mm Proximity Probes
Certifications
- IEC 60825-1 (laser safety)
- FDA 21CFR 1040.10 / 1040.11
- Follow “Laser Notice No. 50” for USA
- DIN EN 61000-6-2 (immunity)
- DIN EN 61000-6-3 (emissions)
Packaging & Delivery
- One K-LE200-EIP-1 laser measuring device
- Reflector foil (standard size)
- Quick start guide
- 12-month warranty from invoice date
- Shipping: FedEx, UPS, DHL express available
FAQ
- Why does the device need > 30 min warm-up? Internal temperature must stabilize for rated accuracy.
- Can I use it without reflector foil? No. Max range requires the foil. Short range may work on reflective surfaces.
- What happens below 0°C without heater? Accuracy may drift. Use the heater option for cold areas.
- How do I reset a connection timeout? Reconnect all EtherNet/IP connections or power cycle the device.
- What does 1 ppm/°C temperature drift mean? Each 1°C change shifts reading by 0.0001% of range. Very stable.
- Can I change the output rate? Fixed at 1000 Hz. Integration time is 1 ms.
- My laser shows class 2. Is it safe? Yes for normal use. Avoid staring into the beam.
- What is the real accuracy at 195 m? ±5 mm absolute. This is very good for such long range.
- Which software do I need? TRWinProg from the brand. Fieldbus tools also work.
- How to choose between standard and heated version? Choose heated if room drops below 0°C. Standard is fine for indoor 0-50°C.
Selection Guide
- Check your maximum distance first. 125 m standard, 170 m or 195 m with extensions.
- Need cold operation? Select heater option for -30°C.
- Require IP65? Standard model already includes it.
- For dynamic targets, 1000 Hz output captures fast motion.
- Use TRWinProg for full parameter access.
- Install on rigid mounts. Vibration exceeds 50 m/s² will affect readings.
- Pair with 11 mm Proximity Probes for redundant position monitoring.
