Description
Product Description

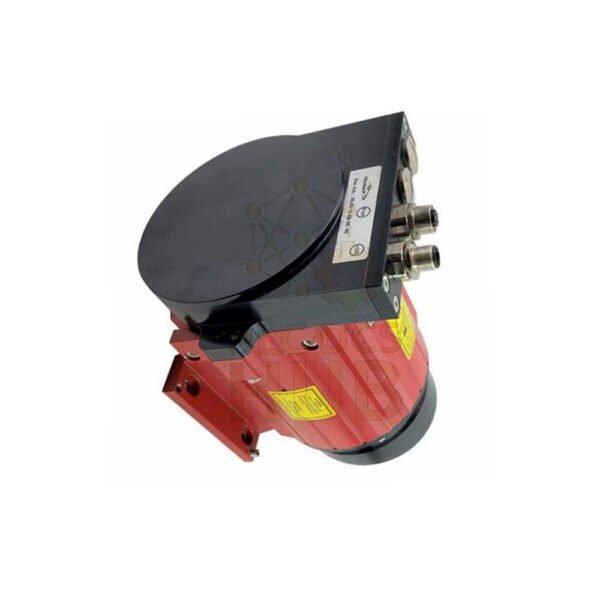

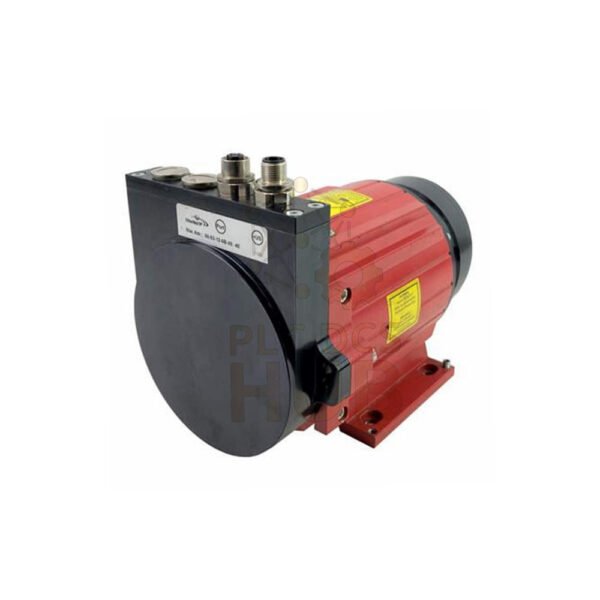

The TR Electronic TR 2200-00702 is a laser distance measurement device. It measures linear movements without contact. The rugged build gives wear-free detection. You get customer-specific solutions and flexible programming. More interfaces are available on request. Choose measuring distances of 125m, 170m, or 195m.
Key Benefits
- Wear-free – no moving parts
- Rugged construction for tough jobs
- Flexible programming fits your needs
- Extra interfaces available
- Customer-specific solutions on request
Technical Specifications
- Brand: TR Electronic
- Model: TR 2200-00702
- Resolution: 1.0 mm
- Measuring Range: 125 meters
- Interface: Ethernet IP
- Code: Programmable
- Output Level: RS485
- Supply Voltage: 18-27V DC
- Connector Type: 1x4P + 8P male / 4P female / M12
- Connector Position: Radial
- Temperature Range: 0°C to +50°C
- Protection Class: IP65
- Laser Protection Class: Class 2
- Options: ENC 12 Mbaud
- Full Stroke: Linearized
- Programmable: Yes
- Reflective Foil: Included
- Water Cooling: No
- Pinout Document: TR-ELE-TI-DGB-0014
- Drawing Number: 04-K2200-014
- Documentation: Available on request
Measurement Performance
- Measuring Range: 125m (also 170m or 195m)
- Resolution: 1.0 mm
- Linearity: Full stroke linearized
- Frequency Response: High-speed via ENC 12 Mbaud option
- Sensitivity: Detects small distance changes
Environmental & Electrical Data
- Temperature Range: 0°C to +50°C
- Protection Class: IP65 (dust and water jets)
- Laser Class: 2 (safe for eyes with normal use)
- Supply Voltage: 18-27V DC
- Interfaces: Ethernet IP and RS485
- Noise Immunity: Good for industrial floors
Installation Guide
- Use the radial M12 connectors (1x4P + 8P male / 4P female)
- Mount the sensor to face the reflective foil
- Apply power between 18-27V DC
- Program the sensor for your stroke length
- Keep the laser path clear of obstacles
Commissioning & Maintenance
- No moving parts means less maintenance
- Program easily via Ethernet IP or RS485
- Check the reflective foil for dirt or damage
- Clean the front lens with soft cloth
- Use the pinout document TR-ELE-TI-DGB-0014 for wiring
Compatibility
- Works with any PLC that supports Ethernet IP
- RS485 output connects to legacy systems
- Compatible with 11 mm Proximity Probes for backup sensing
Certifications
- Laser Protection Class 2 (IEC 60825-1)
- IP65 ingress protection (IEC 60529)
- CE compliant
Package Contents
- TR 2200-00702 sensor unit
- Reflective foil
- M12 connectors (1x4P + 8P male, 1x4P female)
- Quick start guide
- Pinout document TR-ELE-TI-DGB-0014
Warranty & Shipping
- 12 months warranty from delivery
- Covers factory defects only
- Shipping: FedEx, UPS, DHL
- Tracking number for every order
Typical Applications
- Crane positioning and collision avoidance
- Stacker crane linear measurement
- Automated guided vehicle (AGV) navigation
- Level monitoring in bins or silos
- Steel mill coil positioning
Diagnostic Capabilities
- Ethernet IP gives real-time distance data
- Programmable outputs for limit alarms
- Check signal strength via RS485
- Foil reflection quality self-check
Professional FAQ
Can I measure beyond 125 meters?
Yes. This model supports 170m and 195m with the same unit. Set the range during programming.
Does it work outdoors in sunlight?
Yes, but keep the sensor shaded. Direct strong sunlight may reduce accuracy. The IP65 case handles weather.
From field experience, what fails most often?
The reflective foil gets dirty. Clean it yearly. The laser diode lasts over 10 years with normal use.
What should I check before buying?
Verify your PLC supports Ethernet IP. Measure the actual distance needed. Choose 125m, 170m, or 195m. Order spare reflective foil.
How do I get the documentation?
Request the documents from TR Electronic. Ask for drawing 04-K2200-014 and pinout TR-ELE-TI-DGB-0014.
Is water cooling available?
No. This sensor works from 0-50°C. For hotter areas, add an external cooling box.
What is ENC 12 Mbaud option?
It gives faster data output. Use it for high-speed positioning tasks.
Selection Guide
- Need 125m range with Ethernet IP? Pick TR 2200-00702
- Want rugged, wear-free sensing? Laser is the answer
- Have a hot environment? Add external cooling
- Need high speed? Choose ENC 12 Mbaud option
- Already use TR sensors? The programming is the same
Ordering Information
- Base model: TR 2200-00702 (125m, Ethernet IP, RS485)
- Option ENC: Add 12 Mbaud output
- Spare reflective foil: Order separately
- Custom programming: Available on request
