Description
Product Overview

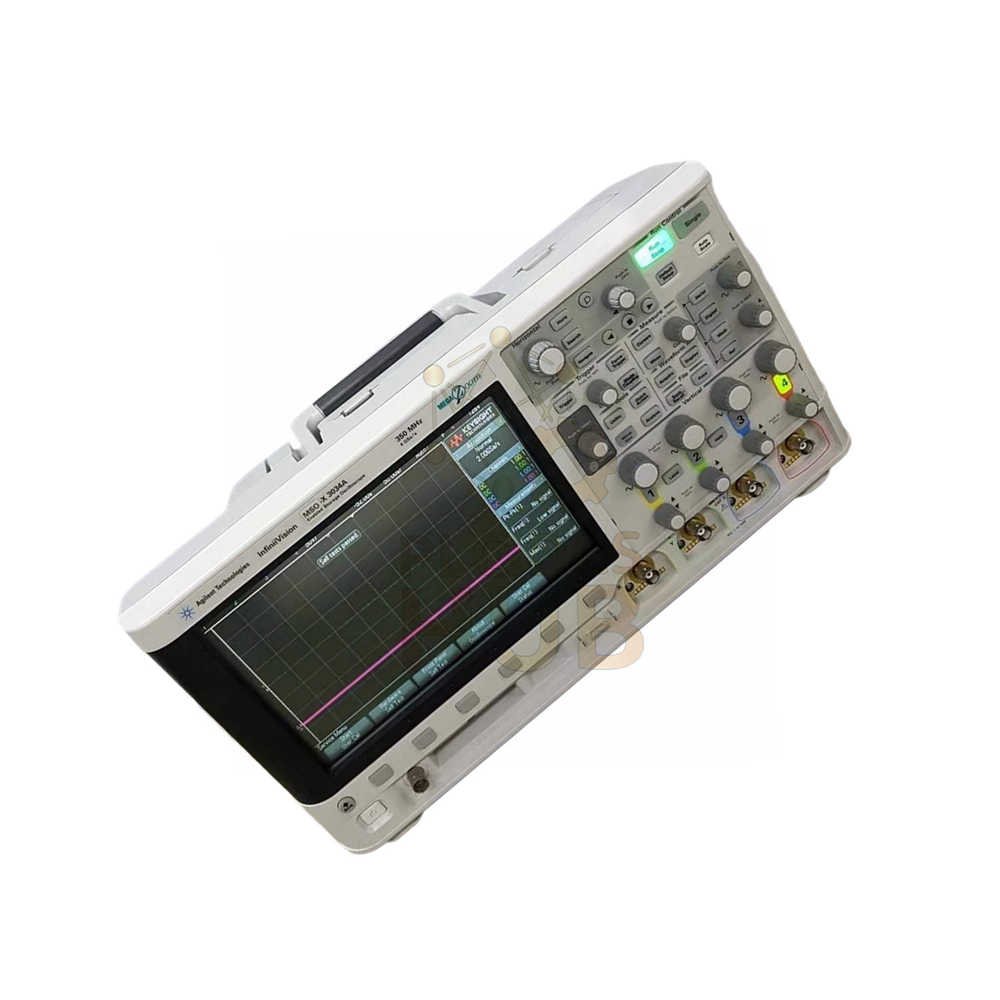

- Keysight MSOX3034A Mixed Signal Oscilloscope
- Part of the InfiniiVision 3000 X-Series
- Combines analog and digital channels in one unit
- Built for fast, accurate signal debugging
Key Specs – Simple View
- Bandwidth: 350 MHz
- Analog Channels: 4
- Digital Channels: 16
- Memory depth: up to 4 Mpts
- Update rate: 1,000,000 waveforms per second
- Display: 8.5-inch WVGA
What Makes This Scope Different
- See more signal details with ultra-fast update rate
- Capture long records using 4 Mpts memory
- Upgrade any time – bandwidth, memory, AWG, voltmeter, serial decode, mask test
- Easy to learn – built-in help in 13 languages
Box Contents
- MSOX3034A oscilloscope – 1 unit
- N2890A passive probes – 500 MHz, 10:1, one per analog channel
- N2756-60001 MSO cable – for 16 digital channels
- Certificate of calibration (2-year interval)
- Secure erase feature pre-installed
- Localized power cord for your region
- Interface and help: English, Japanese, Simplified Chinese, Traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese, Italian, Thai, Polish
Warranty & Support
- 3-year warranty on the main unit
- 90 days on passive probes (no serial number on accessories)
- Free technical support via email or phone
- For inquiries: +86 158 8020 0923 (WhatsApp)
Shipping & Delivery
- Carriers: FedEx, UPS, DHL
- Express shipping worldwide – 3 to 5 business days
- Tracking number sent within 24 hours
- We handle customs documents for you
Installation in 3 Steps
- 1. Unpack and place on stable bench
- 2. Connect power cord and probes
- 3. Press power button – no software install needed
Daily Use & Maintenance
- Clean screen with soft dry cloth
- Update firmware via USB – no special tools
- Run self-calibration once a month
- Store in dry place, 10% to 90% humidity
Compatibility
- Works with all standard 10:1 passive probes
- Supports I2C, SPI, UART, CAN, LIN triggers
- Save data to USB drive (FAT32 format)
- Connect to PC via LAN or USB for remote control
Typical Applications
- Embedded system debug (MCU, FPGA)
- Power supply ripple measurement
- Sensor signal analysis
- Digital protocol decode (I2C, SPI, UART)
- Education and training labs
- Automotive electronics testing
5 Professional FAQs
- What is the real-time update rate of MSOX3034A?
1,000,000 waveforms per second. This helps find rare glitches. - Can I upgrade bandwidth later?
Yes. You buy a license key online – no hardware change. - Does it include a function generator?
No, but you can add a 20 MHz AWG as an option. - How deep is the memory per channel?
Up to 4 Mpts shared. Use segmented memory to save more. - Is the digital MSO cable included?
Yes, model N2756-60001 comes inside the box.
Experience-Based Buying Guide
- Buy MSOX3034A if you mix analog and digital signals daily
- For only 2 analog channels, consider the 2000 X-series instead
- Order extra N2890A probes as spares – they wear out over time
- Get the AWG option if you often need test signals
- Students: start with the built-in help in your own language
- Firmware version 2.50 or later supports all decode options
Selection Guide – Which Keysight Scope?
- Need 350 MHz and 16 digital channels → MSOX3034A
- Need 100 MHz only → MSOX3012A saves money
- Need 500 MHz and 4 analog → MSOX3054A
- Need built-in AWG now → buy the -A6 model suffix
- Repair shop use → add mask test option
