Description

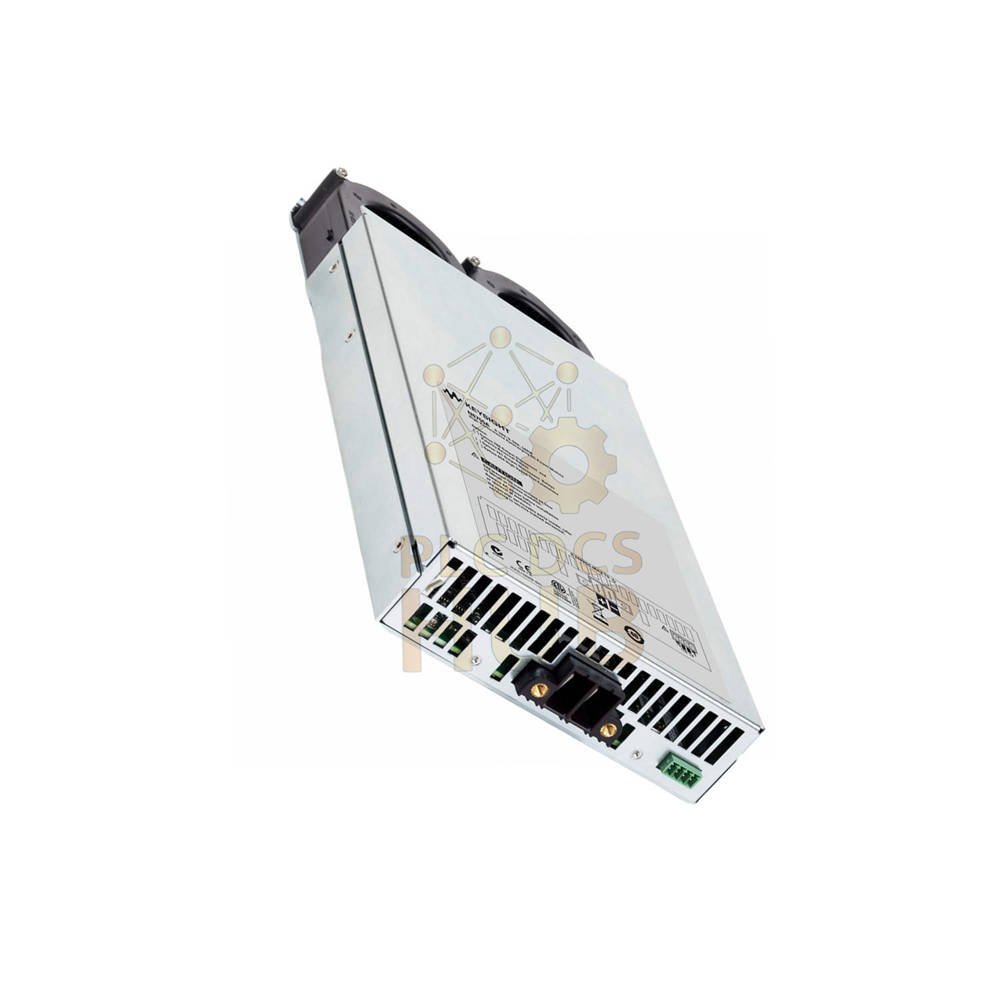

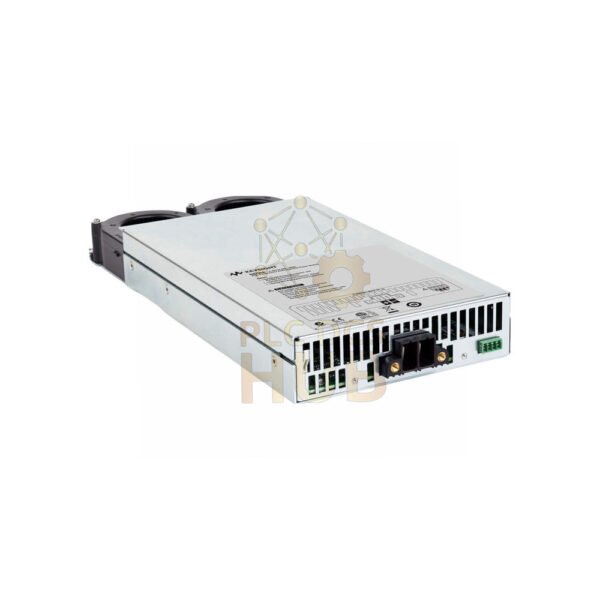

Keysight N6755A High-Performance Autoranging DC Power Module
A 500 W autoranging DC power module. It gives low noise, high accuracy, and fast programming. Works in N6700 Modular Power System or N6705 DC Power Analyzer.
Output Ratings
- ▪ Voltage: 20 V
- ▪ Current: 50 A
- ▪ Power: 500 W
Programming Accuracy (at 23°C ±5°C)
- ▪ Voltage: 0.06% + 10 mV
- ▪ Current: 0.1% + 30 mA
Ripple & Noise (20 Hz to 20 MHz)
- ▪ Voltage peak-to-peak: 5 mV
- ▪ Voltage rms: 1 mV
- ▪ Current rms: 10 mA
Key Features
- ✓ Autoranging output for max flexibility
- ✓ 10 to 50x faster than standard supplies
- ✓ Optional high-speed test extension (oscilloscope-like digitizer)
- ✓ Captures transient or pulse events with high accuracy
- ✓ Works in N6700 Low-Profile Modular System (1U high)
- ✓ Works in N6705 DC Power Analyzer for bench use
- ✓ Standard interfaces: GPIB, LAN, USB, LXI compliant
Technical Data
- ▪ Brand: Keysight
- ▪ Model: N6755A
- ▪ Series: N6700 Modular Power System
- ▪ Type: High-Performance Autoranging DC Power Module
- ▪ Power range in family: 20 to 500 Watts (30+ modules)
- ▪ Form factor: 1U high, multiple outputs
Installation & Compatibility
- Slides into N6700 mainframe or N6705 analyzer.
- No extra cabling needed for mainframe backplane.
- Control via GPIB, LAN, USB, or web browser (LXI).
- Use the optional digitizer to see fast pulses.
Typical Applications
- ATE systems needing fast, accurate DC power
- Testing power management ICs and DC-DC converters
- Battery-powered device validation
- Semiconductor characterization
- Automotive electronics testing
Diagnostic Capabilities
- Built-in measurements of voltage and current.
- Optional digitizer captures waveforms like an oscilloscope.
- View high-speed transients inside your DUT.
- Use Keysight software for trending and logs.
Package Contents
- N6755A DC Power Module
- Documentation CD
- Certificate of calibration
Warranty & Shipping
- 12-month warranty against defects.
- Shipping carriers: FedEx, UPS, DHL with full tracking.
- Express options available for urgent needs.
Frequently Asked Questions (FAQ)
- Q1: What is autoranging?
A: It means the module gives full power across many voltage and current combinations. No need to pick a fixed range. - Q2: Does N6755A work alone without a mainframe?
A: No. It needs an N6700 mainframe or N6705 DC Power Analyzer to operate. - Q3: How fast is the programming speed?
A: Up to 50 times faster than standard power supplies. Great for testing voltage regulators. - Q4: Should I buy the high-speed digitizer option?
A: Yes if you test pulses or fast transients. Skip it for steady-state DC only. - Q5: Is the 12-month warranty extendable?
A: Yes. Contact us for extended warranty plans and calibration services.
Buyer Guidance & Experience Tips
- Choose N6755A for high current (50 A) at low voltage (20 V).
- For higher voltage needs, see N6756A (60 V, 17 A, 500 W).
- Order the digitizer option if you lack an oscilloscope.
- Use DHL for fast Europe delivery. Use FedEx for Americas.
- Keep one spare module to reduce ATE downtime.
- Always calibrate yearly to maintain 0.06% accuracy.
