Description
Product Overview
- Brand
- Leuze
- Product Name

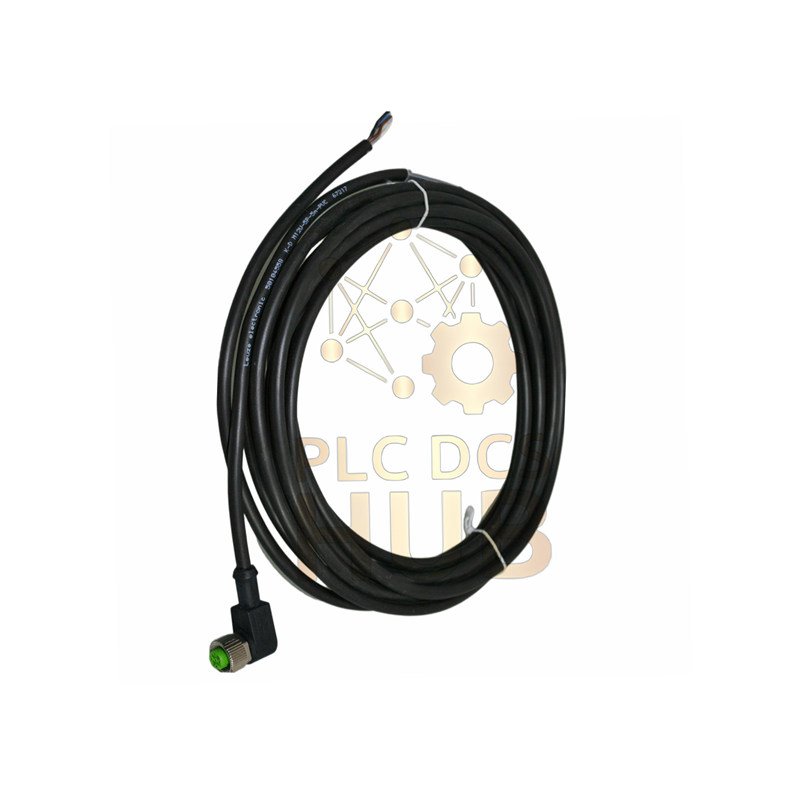

- K-D M12W-4P-10m-PVC connection cable
- Product Role
- Reliable signal and power connection
- Designed for sensors and automation devices
Type Code Structure
- K-D
- K-D connection cable with molded connector
- M12W
- M12 connector
- Angular housing design
- -4P
- 4-pin configuration
- -10m
- Fixed cable length: 10 meters
- -PVC
- PVC cable jacket
Electrical Characteristics
- Rated Voltage
- M12 3 or 4 pin: up to 250 VAC/DC
- M12 5 pin: up to 125 VAC/DC
- Rated Current
- Up to 4 A per contact
- Insulation Class
- Category I according to IEC 60664-1
- Contact Resistance
- Low resistance for stable signal transfer
Mechanical Construction
- Connector Lock
- Screw coupling
- Self-locking design
- Recommended torque: 0.6 Nm
- Housing Material
- Diecast zinc
- Nickel plated surface
- Conductor Size
- 0.34 mm² copper wire
- Cable Diameter
- Approx. 4.7 to 5.7 mm
Environmental Performance
- Temperature Range
- Fixed use: -30 °C to +70 °C
- Flexible use: -5 °C to +70 °C
- Bending Radius
- Minimum 10 times cable diameter
- Outer Jacket
- PVC, black
- Oil and wear resistant
Product Advantages
- Compact angled connector saves space.
- Stable signal under vibration.
- Strong strain relief for long service life.
- Quick installation without tools.
- Ideal for harsh factory floors.
Typical Use Scenarios
- Photoelectric and proximity sensors
- PLC input and output wiring
- Material handling systems
- Packaging and assembly lines
- Industrial automation cabinets
Packaging & Warranty
- Original factory packaging
- Single cable per package
- Warranty: 12 months
Shipping Options
- FedEx international shipping
- UPS worldwide delivery
- DHL express service
FAQ
- Is this cable suitable for continuous motion?
- It supports limited flexible movement.
- Can it be used outdoors?
- Use protection against long UV exposure.
- Does the angle connector reduce stress?
- Yes. It lowers bending at the connector.
- Is this cable compatible with other M12 devices?
- Yes. It follows standard M12 pin layout.
- What is the most common installation mistake?
- Overtightening the screw coupling.
