Description
Product Overview

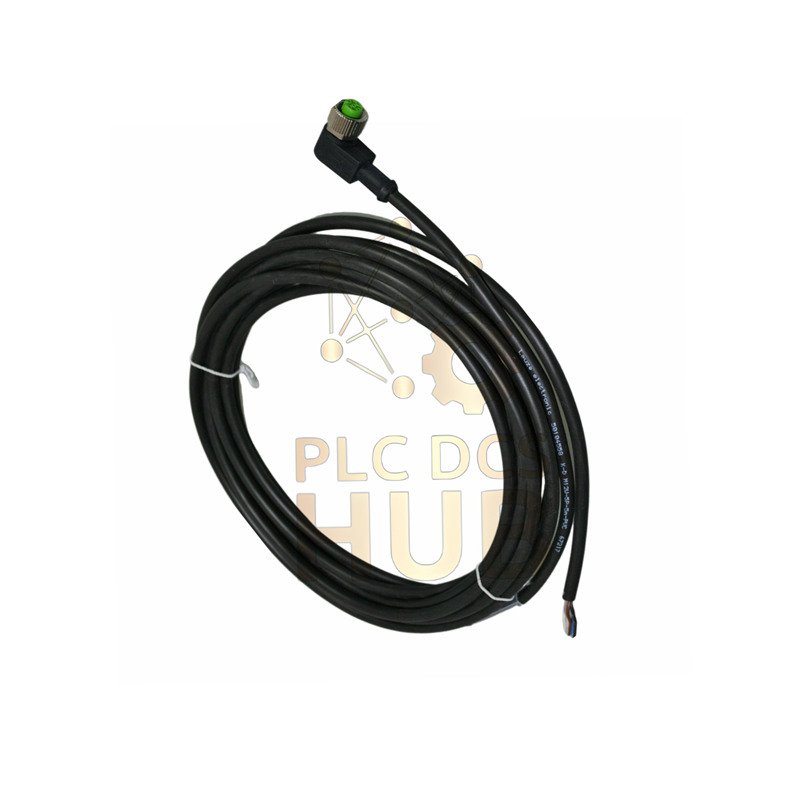

- Leuze K-D M12A-4P-10m-PVC is an industrial connection cable.
- It is designed for sensor and actuator wiring.
- The cable uses an M12 A-coded connector.
- Axial design supports compact installations.
- PVC sheath offers strong mechanical protection.
Type Code Structure
- K-D
- K-D connection cable with molded connector.
- M12A
- M12 connector.
- A-coded, axial orientation.
- -4P
- Four signal pins.
- -10m
- Cable length: 10 meters.
- -PVC
- PVC outer jacket.
Electrical Characteristics
- Rated Voltage: ≤250 VAC/DC.
- Operating Current: ≤4 A per contact.
- Insulation Class: Category I.
- Standard Reference: IEC 60664-1.
- Stable signal transfer for control systems.
Mechanical Properties
- Conductor Cross Section: 0.34 mm².
- Cable Diameter: 4.7 to 5.7 mm.
- Bending Radius: ≥10 times cable diameter.
- Connector Lock: Screw fitting.
- Lock Material: Zinc diecast, nickel plated.
- Recommended Torque: 0.6 Nm.
- Self-locking design prevents loosening.
Environmental Ratings
- Fixed Installation: -30°C to +70°C.
- Flexible Use: -5°C to +70°C.
- PVC jacket resists oil splash.
- Good resistance to vibration.
Key Product Advantages
- Reliable contact stability.
- Long service life in harsh environments.
- Fast installation and removal.
- Clear pin layout reduces wiring errors.
- Ideal for standard automation wiring.
Installation Guidance
- Hand-tighten, then torque to 0.6 Nm.
- Avoid sharp bends near the connector.
- Secure cable during machine movement.
- Check pin alignment before mating.
Typical Application Areas
- Photoelectric sensors.
- Inductive proximity sensors.
- Factory automation lines.
- Packaging and conveyor systems.
- Material handling equipment.
Packaging & Delivery
- One original Leuze connection cable.
- Factory sealed packaging.
- Shipping via FedEx, UPS, or DHL.
Warranty Policy
- Warranty Period: 12 months.
- Covers manufacturing defects.
- Excludes misuse or improper installation.
FAQ
- Is this cable suitable for continuous movement?
- It supports light flexing, not drag chain use.
- Can it be used outdoors?
- Yes, with protection from direct sunlight.
- Does the connector resist vibration?
- The screw lock holds firm under vibration.
- Is signal loss common over 10 meters?
- No, signal quality remains stable.
- What is a common installation mistake?
- Over-tightening the connector causes damage.
