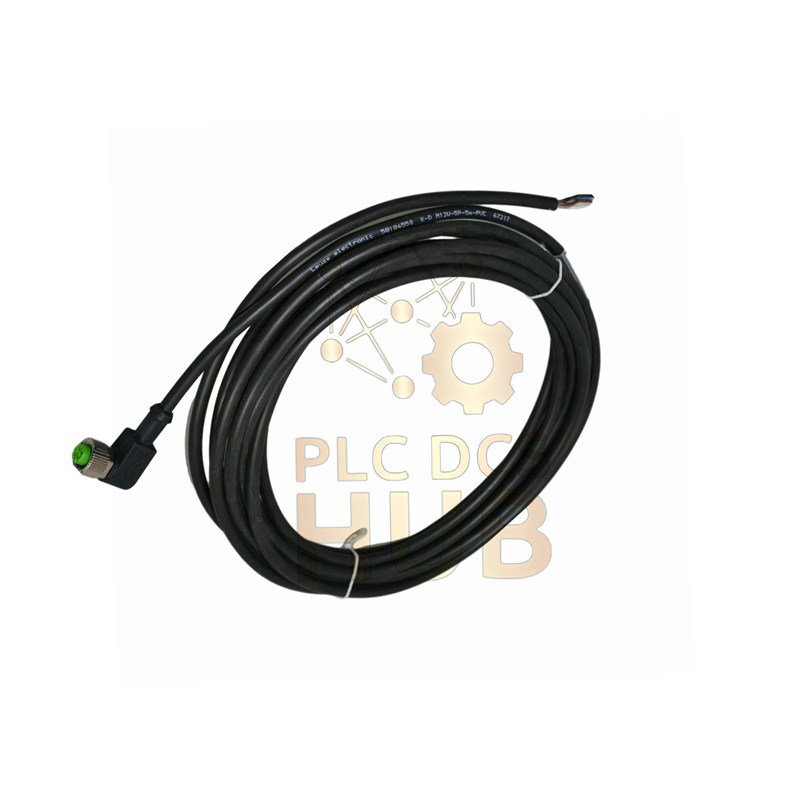

Product Overview: Leuze K-D M12 Connection Cable
This is a new, original Leuze K-D series industrial cable. The full model is K-D M12W-4P-5m-PVC. It has a 12-month warranty. It connects sensors and devices in automation systems. The 5-meter length offers good setup flexibility.
Detailed Technical Specifications
- Brand & Full Model Code: Leuze K-D M12W-4P-5m-PVC
- K-D: Leuze K-D Series Connection Cable
- M12w: M12 Connector, 90-Degree Angled Socket
- -4P: 4 Pins / Conductors
- -5m: Cable Length is 5 Meters
- -PVC: Cable Jacket Material is PVC
- Electrical Data:
- Voltage: Up to 250V AC/DC (for 3/4-pin types).
- Current: Max 4 Amps per pin.
- Safety Standard: Category I per IEC 60664-1.
- Wire Size: 0.34 mm² cross-section.
- Mechanical Build:
- Connector: Black PVC/TPU housing. Nickel-plated zinc.
- Locking: Screw lock with self-locking nut (0.6 Nm torque).
- Cable: Diameter ~5.2mm. Bend radius ≥ 52mm.
- Environment:
- Temperature: -30°C to +70°C (fixed). -5°C to +70°C (flexing).
Frequently Asked Questions (FAQ)
Is this cable shielded against electrical noise?
Standard versions may not have full shielding. For high-noise areas, check for models with “SH” or “shielded” in the code.
Can I cut and re-terminate this cable to a custom length?
We do not recommend it. Cutting voids the warranty. The connector is molded on for best seal and strain relief.
What is the difference between PVC and PUR cable jackets?
PVC is general-purpose and cost-effective. PUR has better oil and chemical resistance for harsher environments.
From experience, how do I know if the connector is fully secured?
Hand-tighten the screw collar until it stops. Then, give about a quarter turn more with a tool. You should feel the self-locking feature engage.
The cable feels stiff in the cold. Is this normal?
Yes. PVC becomes less flexible below -5°C. For cold rooms, plan fixed routing or consider a PUR-sheathed cable.
Ordering, Shipping & Support
- Warranty: Backed by a full 12-month warranty.
- Shipping: We ship globally via FedEx, UPS, and DHL.
- Package: The cable is new and comes in protective factory packaging.
