Description

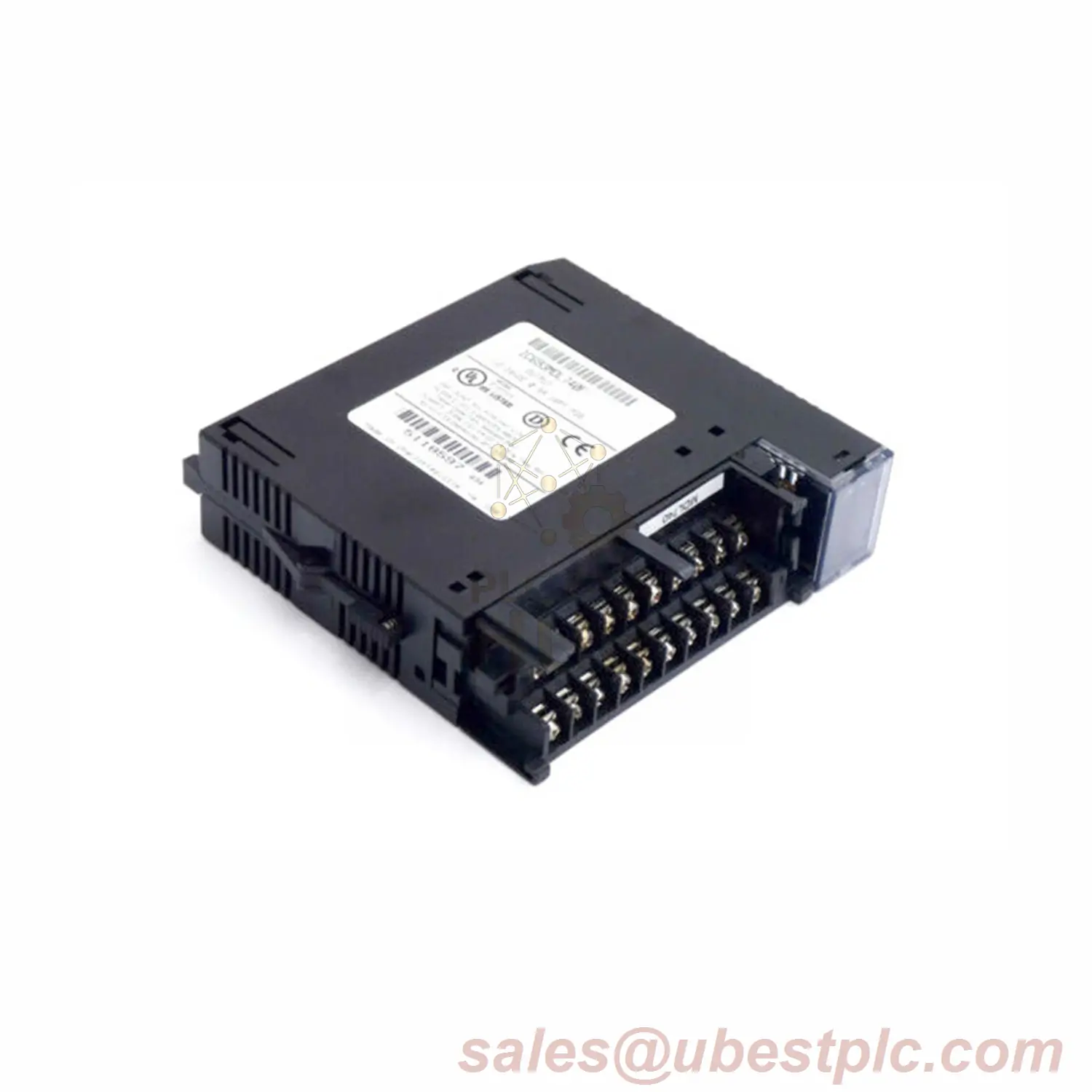

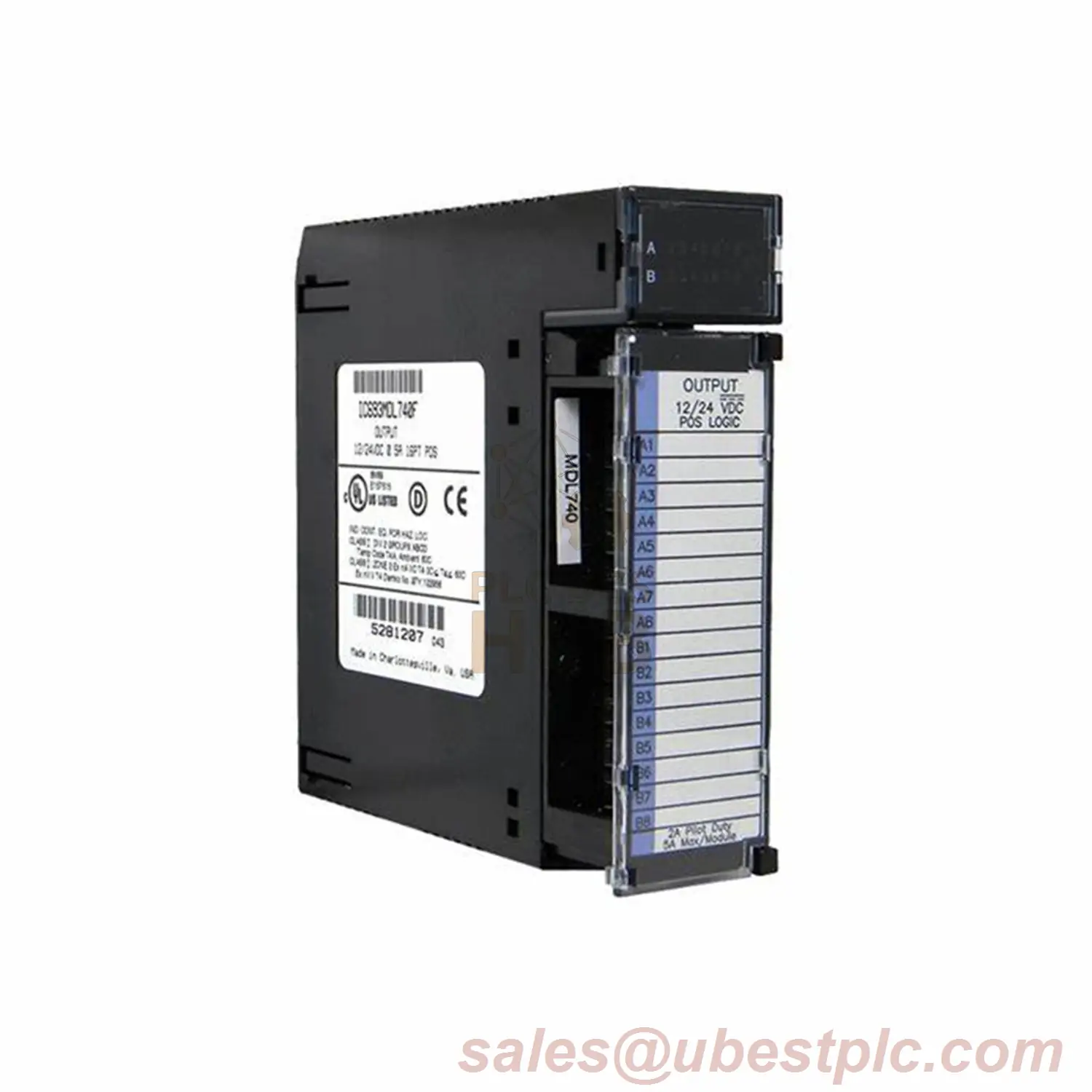

IC693MDL740: 16-Channel Sourcing Output Module
Quick Overview
Control motors, lights, and relays with this 16-output PLC module. Designed for GE Fanuc Series 90-30 systems. Each channel handles 0.5A loads at 24VDC.
Key Features
- 16 sourcing outputs for industrial devices
- 0.5A current per channel (2A per group)
- 12-24VDC operating range
- 2ms fast switching response
- LED indicators for every channel
Technical Specifications
| Brand | GE Fanuc / Emerson |
| Model | IC693MDL740 |
| Output Type | Sourcing (Positive Logic) |
| Channels | 16 (2 groups of 8) |
| Voltage Range | 12-24VDC ±20% |
| Current Capacity | 0.5A/channel |
| Response Time | 2ms on/off |
| Power Draw | 110mA @5VDC |
Installation Guide
- Fits any slot in 90-30 baseplates
- No internal fusing – add external protection
- Check power supply matches load requirements
Package Includes
- 1x IC693MDL740 module
- Installation guide
Warranty & Delivery
- 12-month quality guarantee
- FedEx, UPS, DHL express shipping
FAQ
Q: What loads can it drive?
A: Relays, contactors, lamps up to 0.5A each.
Q: How many outputs can turn on together?
A> Groups of 8 can share 2A current.
Q: Is external protection needed?
A: Yes, install fuses for overload safety.
Q: Operating temperature range?
A: 0°C to 60°C (32°F to 140°F).
