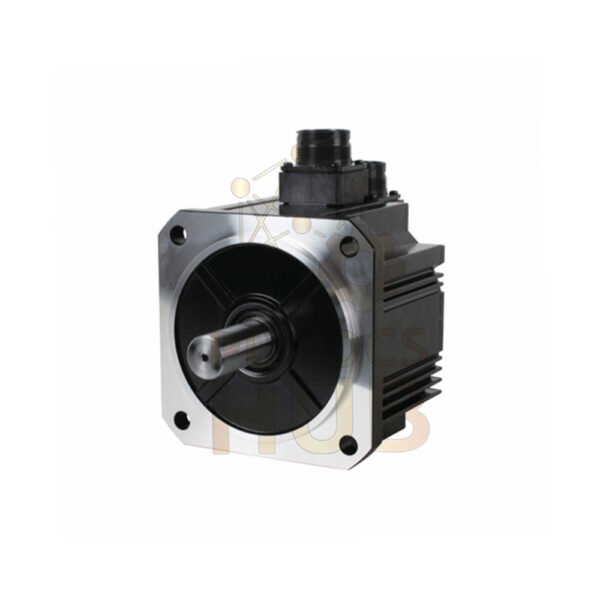

MDMF102L1H6M Panasonic MDMF Series Middle Inertia Servo Motor

Description

Product Overview

MDMF102L1H6M is a Panasonic servo motor from the MDMF Series.
It is designed for precise motion control tasks.
The motor uses a 23-bit encoder for accurate position feedback.
Its middle inertia design gives stable performance in many machines.
It is widely used in automation equipment and precision systems.

Main Performance Highlights

• 1000 W rated output for industrial motion control.
• High-resolution 23-bit encoder system.
• Fast response frequency up to 3.2 kHz.
• Middle inertia structure improves stability.
• Built-in holding brake for safe stop.
• IP67 protection for harsh environments.
• JL10 connectors for motor and encoder.

Motor Key Specifications

• Brand: Panasonic
• Model: MDMF102L1H6M
• Series: MDMF Series
• Motor Type: Middle inertia servo motor
• Rated Output: 1000 W
• Rated Torque: 4.77 N·m
• Maximum Torque: 14.3 N·m
• Continuous Stall Torque: 5.25 N·m
• Rated Speed: 2000 r/min
• Maximum Speed: 3000 r/min
• Rated Current: 5.2 A
• Maximum Current: 22 A
• Power Supply Capacity: 2.4 kVA
• Rotor Inertia: 7.40 × 10⁻⁴ kg·m²
• Encoder Resolution: 23-bit (8388608 pulses)
• Flange Size: 130 mm square
• Weight: 6.1 kg

Encoder and Brake Features

• Battery-less absolute encoder design.
• Position feedback with high precision.
• Built-in holding brake for safe shutdown.
• Brake engaging time about 100 ms.
• Brake releasing time about 50 ms.
• Brake voltage: 24 V DC.

Protection and Electrical Design

• IP67 protection improves durability.
• Works in demanding industrial areas.
• Optional external regenerative resistor available.
• Stable motor operation at high speed.
• Designed for reliable motion systems.

Typical Equipment Applications

• CNC machine tools.
• Industrial robotic arms.
• Automated assembly machines.
• Packaging and labeling machines.
• Precision positioning equipment.

Diagnostic Capability

• High-resolution encoder helps detect position errors.
• Supports accurate motion monitoring.
• Stable torque output reduces vibration issues.
• Motor feedback helps improve system tuning.
• Useful for predictive maintenance checks.

Expert Review

• This servo motor offers strong precision control.
• The middle inertia design balances speed and stability.
• The 23-bit encoder provides very fine position data.
• IP67 rating improves reliability in factories.
• It works well for high-accuracy automation machines.

Shipping and Warranty

• Warranty period: 12 months.
• Dispatch time: 24-48 hours.
• Careful industrial packaging.
• International delivery available.
• Courier services: FedEx, UPS, DHL.

FAQ

• How do I choose the correct servo motor size?
• Select the motor based on required torque, speed, and load inertia.
• What is the benefit of a middle inertia servo motor?
• It provides stable control when the machine load changes.
• When should a holding brake be used?
• Use it when the system must keep position after power loss.
• Can this motor work in wet or dusty areas?
• Yes. IP67 protection helps in harsh factory environments.
• What should be checked before installation?
• Confirm the driver compatibility, cable type, and mounting size.
