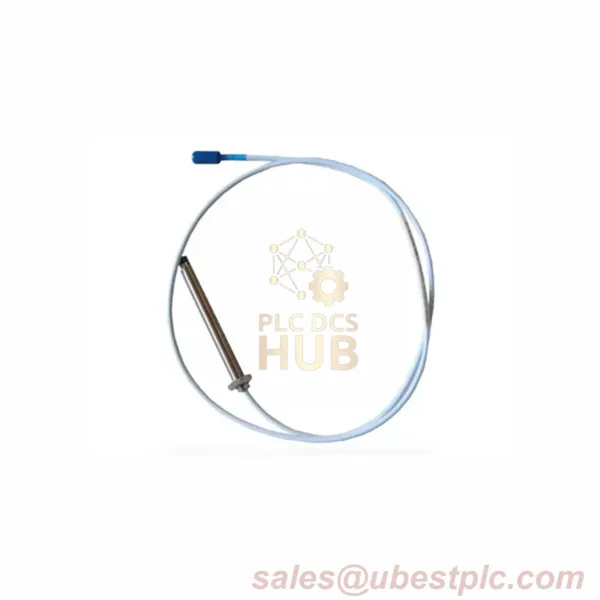

Metric Thread Proximity Probe: Bently Nevada 330103-00-14-10-02-05

Description

Metric Thread Proximity Probe for Global Hazardous Areas

This Bently Nevada 3300 XL 8mm Probe features a standard M10x1 metric thread. It carries top international explosion-proof certifications. This sensor is ready for the most demanding and safety-critical applications worldwide.

Model Configuration Details

The complete product identifier is 330103-00-14-10-02-05. This defines its exact build:

• Core Identification:
  • 330103: Defines the base as a 3300 XL 8 mm Probe with M10 x 1 thread.
• Key Physical Attributes:
  • 00: Unthreaded Length = 0 mm.
  • 14: Overall Case Length = 140 mm.
  • 10: Total Cable Length = 1.0 meter.
• Connection & Compliance:
  • 02: Connector Type = Miniature coaxial ClickLoc.
  • 05: Agency Approvals = CSA, ATEX, and IECEx.

Technical Performance Specifications

• Measurement Performance:
  • Linear Range: 2.0 mm (80 mils).
  • Recommended Gap: -9 Vdc (~1.27 mm).
  • Probe Resistance (1.0m): 7.59 ± 0.5 Ω.
• Robust Construction:
  • Case: 303/304 Stainless Steel.
  • Tip: Durable PPS Plastic.
  • Seal: Viton O-ring for pressure differentials.
• Mechanical Limits:
  • Max Thread Engagement: 15 mm for M10x1 thread.
  • Operating Temperature: -52°C to +177°C (Standard).

Hazardous Area Certifications & Use

• Intrinsic Safety (ia): For Zone 0/1 when used with approved barriers.
• Non-Incendive (nA, ec): For Zone 2/Division 2 installations.
• Environmental Immunity: Less than 3% performance change in 93% humidity.

Ideal Applications & System Setup

This M10x1 threaded probe is perfect for metric machinery designs. It integrates with Bently Nevada 3300 XL monitoring systems. Use it for precise vibration measurement in refineries, chemical plants, and offshore platforms where hazardous area ratings are mandatory.

Package Contents & Purchase Benefits

• One fully certified 3300 XL 8mm proximity probe.
• 1.0-meter integrated cable with ClickLoc connector.
• 12-month quality warranty.
• Fast, trackable shipping via FedEx, UPS, or DHL available.

Practical FAQs for Engineers

What is the difference between M10x1 and 3/8-24 UNF threads?

M10x1 is a metric thread, common in Europe and globally. 3/8-24 UNF is an imperial thread. You must match the probe thread to your housing’s thread type.

Can this probe be used in Zone 0 hazardous areas?

Yes, but only when installed with the correct intrinsically safe (ia) zener barriers as per the system drawing. The probe itself carries the necessary component certification.

What does the “-05” approval option include?

The “-05” suffix means the probe is certified by CSA (Canada/USA), ATEX (Europe), and IECEx (International). This covers most global hazardous area requirements.

What is a common mistake with M10 thread installation?

Exceeding the 15 mm maximum thread engagement. This can damage the probe or housing. Always measure engagement depth before final tightening.

How do I order this probe for a very high-temperature application?

This standard model is rated to 177°C. For higher temperatures up to 218°C, you need to select the Extended Temperature Range (ETR) version. Contact us to specify.
