Description

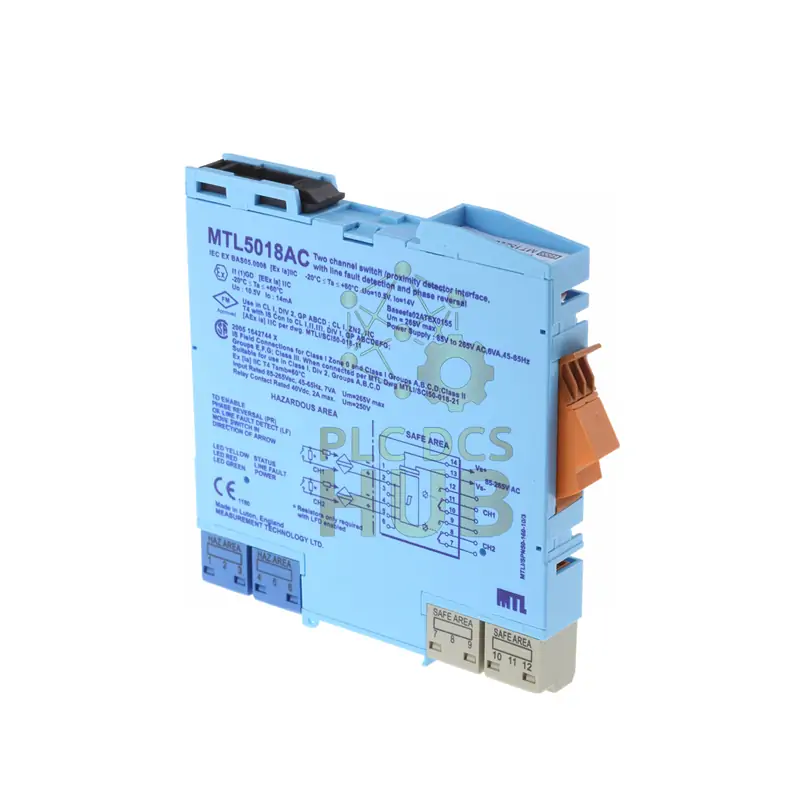

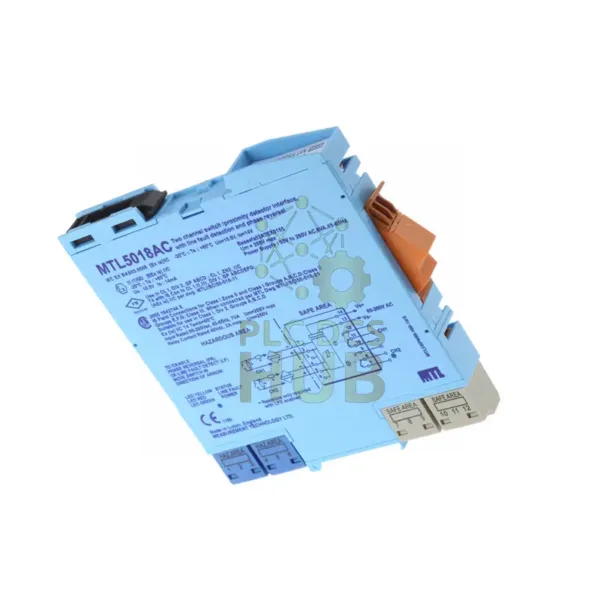

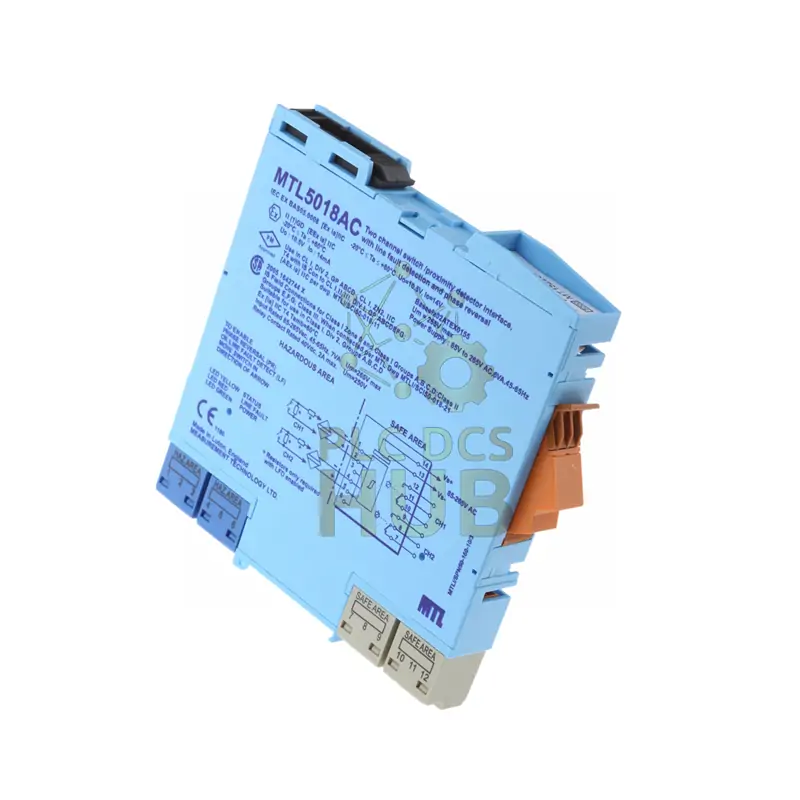

MTL5018ac: Dual-Channel Hazard Commander

Control two safe devices with two hazardous-area switches! The MTL5018ac safety barrier features dual relays and smart fault detection. Independent phase reversal included. Zone 0 certified.

⚡ Dual-Control Power

• Handles two hazardous switches simultaneously
• Independent phase reversal per channel
• Smart line fault detection
• Tri-color LED diagnostics

???? Performance Specs

• Inputs: NAMUR/DIN 19234 sensors
• Sensor Voltage: 7-9V @ 1kΩ
• Relay Rating: 250V AC / 2A (40V DC)
• Response Time: <10ms switching
• LFD Detection: Open <100μA / Short <100Ω
• Power: 85-265V AC
• Isolation: 250V AC/DC protection
• Temp Range: -30°C to +80°C
• Humidity: 0-95% non-condensing
• Safety: 10.5V, 800Ω, 14mA per channel

???? Connection Map

• 1,2: Channel 1 Input (-/+)
• 4,5: Channel 2 Input (-/+)
• 7-9: Relay 2 (NC/C/NO)
• 10-12: Relay 1 (NC/C/NO)
• 13,14: AC Power

????️ Secure Package

• 12-month full protection warranty
• Global express: Fedex, UPS, DHL
• Three-color LED status indicators

???? Pro Insights

Q1: How many switches connect to MTL5018ac?
A: Two! Handles dual hazardous-area sensors.

Q2: What do the LED colors indicate?
A: Green=power, Yellow=relay active, Red=line fault.

Q3: Can I set different phases per channel?
A: Yes! Independent phase reversal switches.

Q4: How fast is fault detection?
A: Instant! Detects opens/shorts in milliseconds.

Q5: What power does it need?
A: 85-265V AC – works worldwide.
