Description

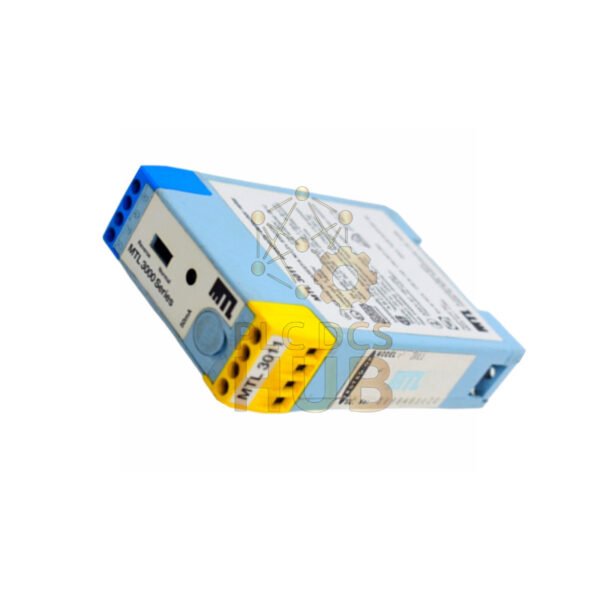

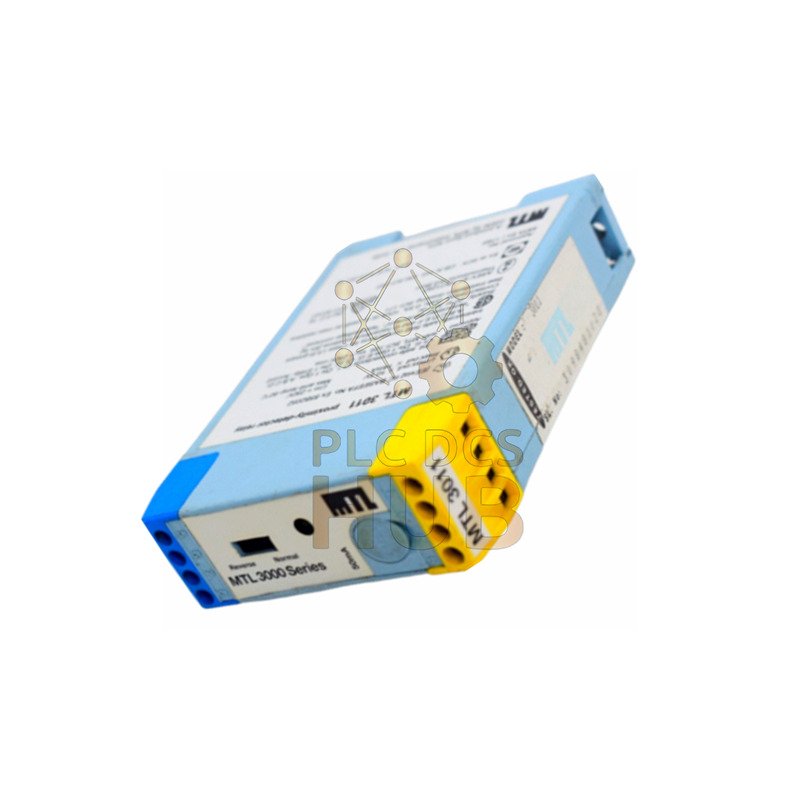

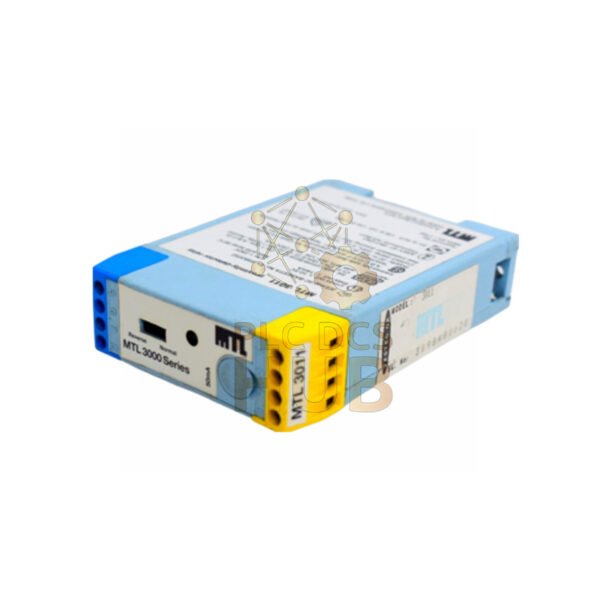

MTL3011: Single-Channel Interface for Hazardous Area Sensors
Control a safe-area load with a switch or proximity detector in hazardous locations. The MTL3011 offers a relay output, phase-reverse control, and built-in line-fault detection (LFD) for safety. It is ideal for Zone 0 and Division 1 areas.
Technical Data
Brand: MTL
Model: 3011
Input Type: NAMUR or switch with resistors
Hazardous Rating: Zone 0, IIC, T6 / Div. 1, Group A
Supply Voltage: 20 to 35 V DC
Current Consumption: 25 mA typical at 24V
Output Signal: Relay contact (NO)
Contact Rating: 200V, 0.5A, 10VA AC or 10W DC
Response Time: 1 ms typical
Line Fault Detection: Open if input <100µA or >6.5mA
Hysteresis: 200 µA
Weight: 140 g
Safety Parameters: Voc=10.5V, Isc=10.7mA, Ca=3.0µF, La=300mH
Certification Information
Designed to meet international safety standards for hazardous locations. Um=250V.
Package Contents
1 x MTL3011 Interface Unit. Fast shipping via FedEx, UPS, or DHL.
Warranty
12-month warranty covering defects. Easy returns and support.
Frequently Asked Questions
- What sensors work with the MTL3011?
It works with NAMUR proximity detectors and switches with external resistors. - How does line-fault detection help?
LFD opens the output if wires break or short, preventing false signals. - Can I use it in Division 1 areas?
Yes, it is rated for Division 1, Group A hazardous locations. - What is the purpose of phase reverse?
It lets you choose which sensor state triggers an alarm output. - Is the output relay suitable for high loads?
It handles up to 0.5A at 200V DC or AC, but suppress reactive loads.
