Description

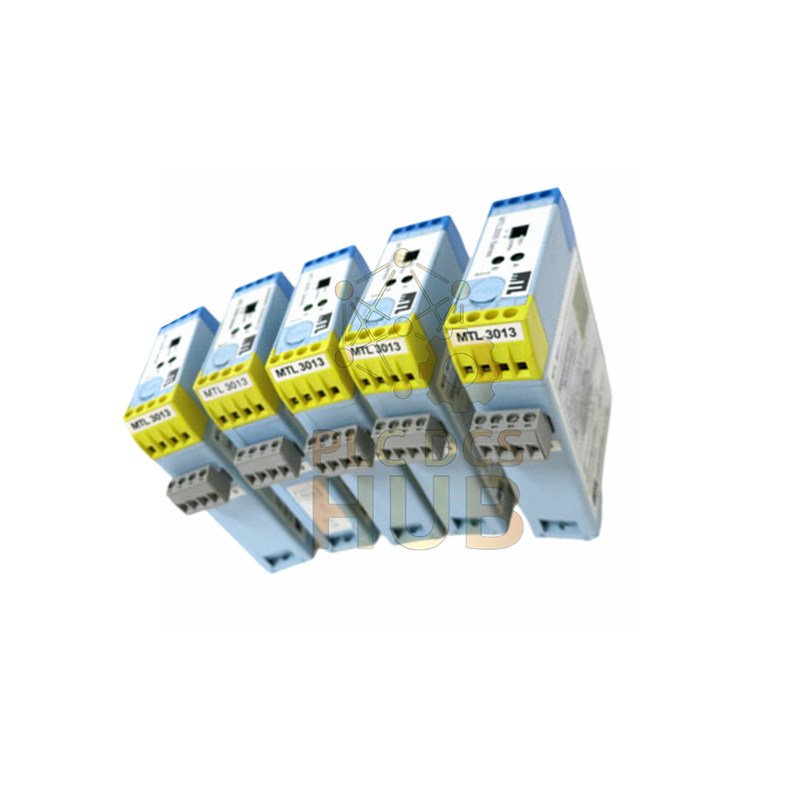

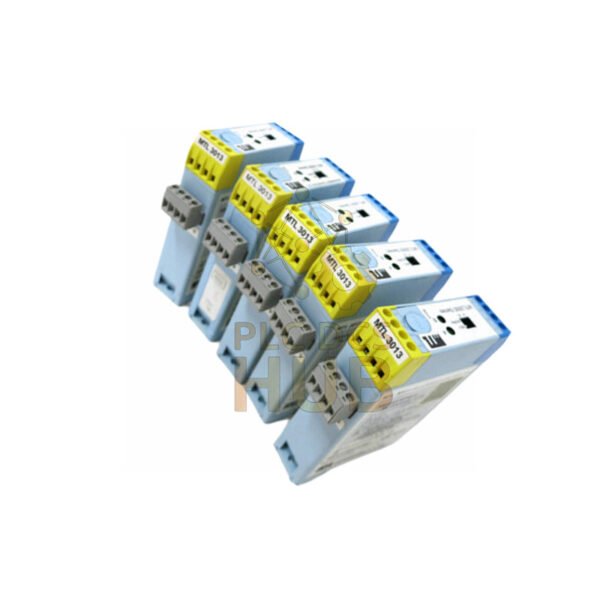

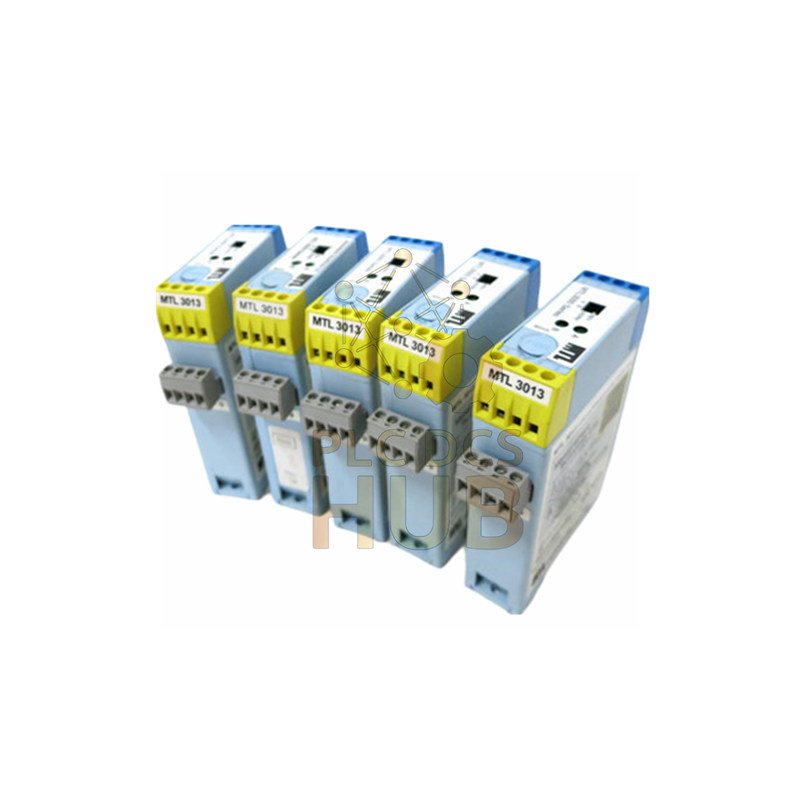

MTL3013: Dual Channel Interface for Hazardous Area Sensors
The MTL3013 provides two independent channels in one compact unit. It controls two safe-area loads from switches or proximity detectors located in hazardous areas. Each channel features phase reversal switches and LED status indicators. Perfect for Zone 0 and Division 1 applications.
Technical Specifications
Brand: MTL
Model: 3013
Channels: 2 independent
Input Type: NAMUR proximity or dry contact
Sensor Voltage: 7.0-8.5V DC from 970Ω
Output Type: 2 SPDT relay outputs
Contact Rating: 250V 5A 100VA AC / 100W DC
Response Time: 10ms typical
Hazardous Rating: Zone 0, IIC, T6 / Div 1, Group A
Supply Voltage: 20-35V DC
Current Consumption: 55mA typical at 24V
Power Dissipation: 1.4W typical at 24V
Safety Parameters: Voc=10.5V, Isc=14mA per channel
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity Range: 0-95% non-condensing
Unit Weight: 170g
Fuse Rating: 80mA semi-time-lag
Package Contents
1 x MTL3013 dual channel interface unit. Fast shipping via FedEx, UPS, or DHL.
Warranty Protection
12-month warranty against defects. Reliable performance guaranteed.
Common Questions
- Can I control two different types of sensors?
Yes, each channel operates independently and can handle different sensor types. - What is the relay contact life expectancy?
1.5 x 10^5 operations at maximum load, over 10^6 operations at reduced loads. - Can I use a single changeover switch for both channels?
Yes, the interconnected floating design allows this configuration. - Does it include line fault detection?
No, for LFD features consider MTL3011 or MTL3014 models. - What is the purpose of phase reversal?
It allows you to choose which sensor state triggers an alarm condition.
