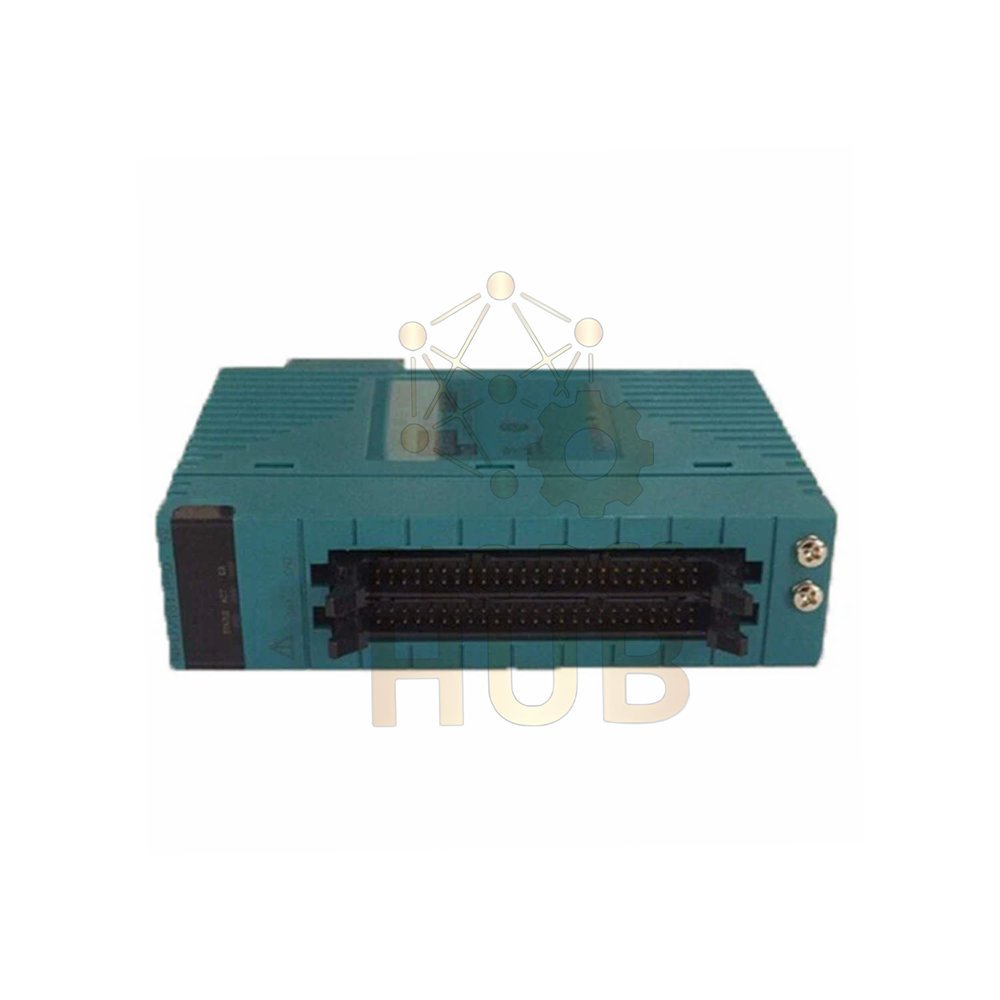

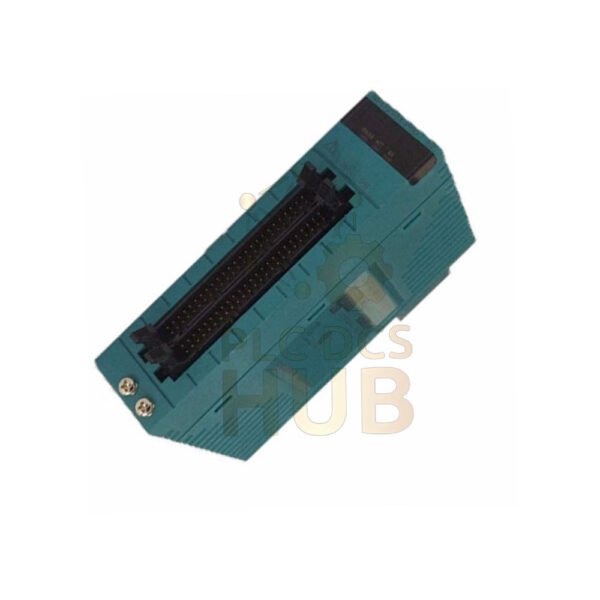

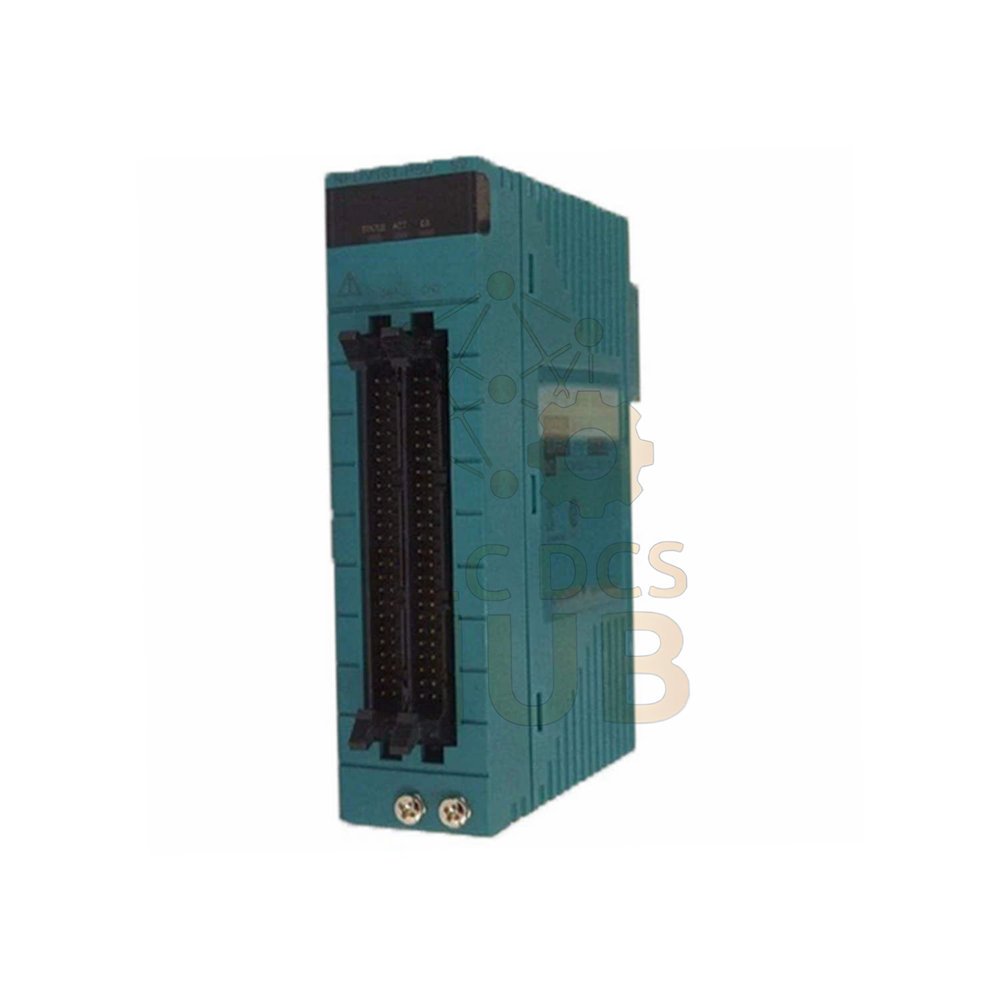

NFAI543-S50 Yokogawa Centum AO Module 16 Channel Isolated HART

Description

Product Overview

• NFAI543-S50 is a high-performance analog output module for Yokogawa CENTUM systems.
• It delivers 16 isolated output channels for precise process control.
• Each channel outputs stable 4 to 20 mA signals.
• The module supports HART communication for advanced diagnostics.
• It ensures reliable signal transmission in demanding industrial environments.

Technical Specifications

• Brand: Yokogawa
• Model: NFAI543-S50
• Module Type: Analog Output Module
• Output Channels: 16 isolated channels
• Signal Range: 4 to 20 mA
• Load Resistance: 0 to 750 Ω
• Accuracy: ±0.3% full scale
• Resolution: High-resolution DAC output
• Linearity: Excellent linear output stability
• Temperature Drift: ±0.01% per °C
• Response Time: 100 ms step response
• Refresh Cycle: 10 ms update rate
• Frequency Response: Optimized for process control signals
• Open Circuit Detection: ≤0.65 mA threshold
• Isolation Voltage: 1500 V AC for 1 minute
• Power Consumption: 5V DC 230 mA, 24V DC 540 mA
• Operating Temperature: Stable in industrial ranges
• Environmental Resistance: Strong anti-noise capability
• Weight: 0.4 kg
• Connection Type: Pressure clamp terminal, MIL cable
• HART Support: Available

Suffix Structure

• NFAI543
  • -S
    • -5
      • -0
• -S: Standard type
• -5: Non-explosion proof
• -0: Basic configuration

Key Features

• High channel density improves cabinet efficiency.
• Fast signal update enhances control responsiveness.
• Strong isolation protects system integrity.
• Flexible fallback settings increase system safety.
• HART integration enables intelligent field diagnostics.

Installation Guide

• Mount the module into a compatible Yokogawa rack.
• Secure wiring using pressure clamp terminals.
• Ensure correct grounding to reduce interference.
• Verify load resistance before energizing outputs.

Commissioning & Maintenance

• Configure channel parameters via engineering software.
• Use HART tools for loop verification.
• Monitor diagnostics for open loop conditions.
• Replace modules quickly using plug-in architecture.

Compatibility

• Fully compatible with Yokogawa CENTUM VP systems.
• Works with distributed control systems and PLC interfaces.
• Supports integration with smart field transmitters.

Applications

• Process industries like oil and gas.
• Power generation and energy systems.
• Chemical and petrochemical plants.
• Water treatment automation systems.

Diagnostics Capability

• Detects open loop and abnormal current conditions.
• Provides real-time status monitoring.
• Supports predictive maintenance strategies.

Certifications

• Meets industrial safety and EMC standards.
• Designed for reliable long-term operation.

Packing List

• 1 × NFAI543-S50 Module
• 1 × Terminal connector
• 1 × Product documentation

Warranty & Shipping

• 12-month warranty provided.
• Fast delivery via FedEx, UPS, DHL.
• Secure packaging ensures safe transportation.

PLCDCS HUB’s Insight

• This module offers strong reliability for critical control loops.
• Its fast refresh rate suits dynamic process environments.
• HART support adds valuable diagnostic depth.
• It balances performance and cost for DCS expansions.

FAQ

• What systems support this module?
• It integrates with Yokogawa CENTUM platforms.
• How accurate is the output signal?
• It maintains ±0.3% full-scale precision.
• Can it detect wiring faults?
• Yes, it identifies open circuit conditions quickly.
• Is it suitable for harsh environments?
• Yes, it handles industrial noise and temperature variations.
• How to choose the right AO module?
• Select based on channel count, accuracy, and communication needs.
